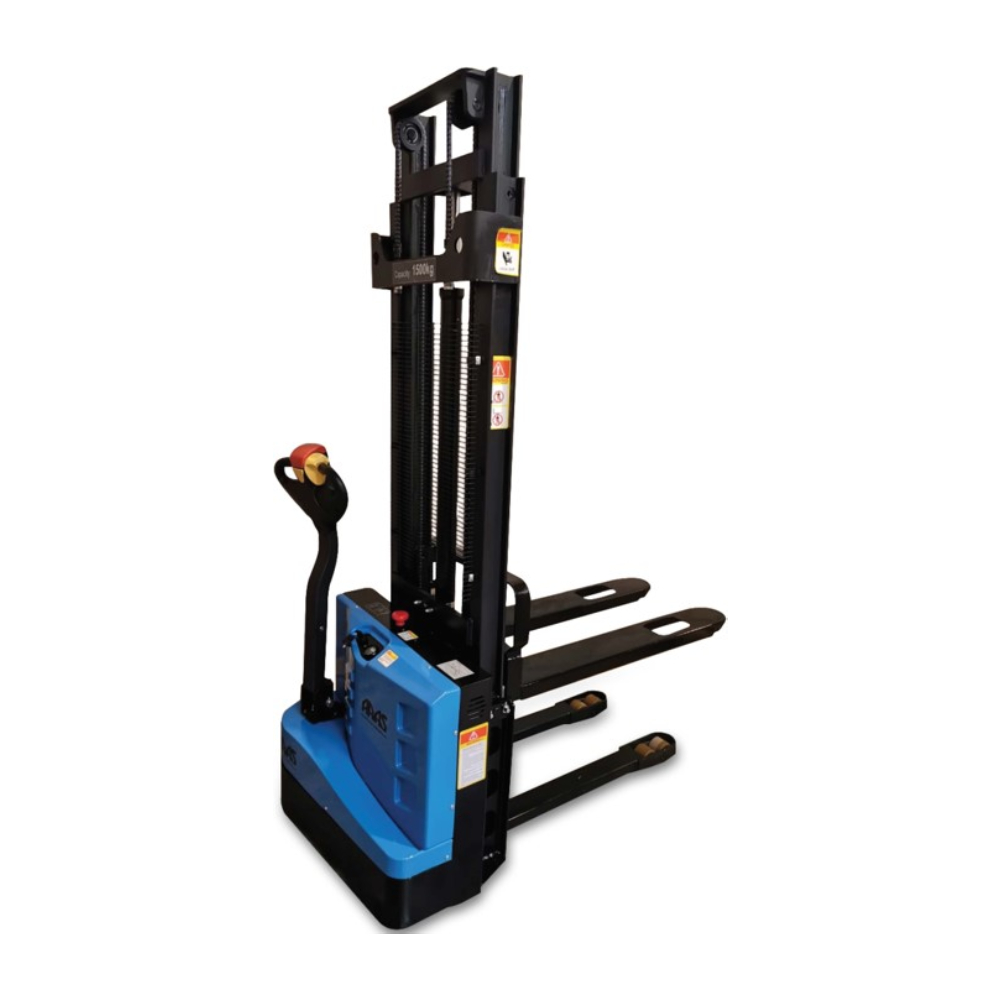

WS15SL - Electric Stacker

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

Tags: Electric Pallet Stacker, Pallet Stacker

WS15SL – Electric Stacker

Categories: Electric Pallet Stacker, Pallet Stacker

0,00 AED (Excl. VAT)

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Specifications

Mast lower height: 2135mm
Mast extend height: 3750mm
Lifting height: 3300mm
Free lift: – mm
Mast profile: H+H model mm
Overall lenght: 1775mm
Fork width: 160mm
Overall width: 820mm
Fork length: 1150mm
Outer width of the fork: 560mm
Lowered height of fork: 90mm
Clearance: 30mm
Min. turning radius: 1460mm
Rear body height: 760mm
Aisle width (800*1200mm pallet): 2240mm
Aisle width (1000*1200mm pallet): 2320mm

GET QUOTATION

WS15SL – Electric Stacker

WS15SL - Electric Stacker

Categories: Electric Pallet Stacker, Pallet Stacker

0,00 AED (Excl. VAT)

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Specifications

Mast lower height: 2135mm
Mast extend height: 3750mm
Lifting height: 3300mm
Free lift: – mm
Mast profile: H+H model mm
Overall lenght: 1775mm
Fork width: 160mm
Overall width: 820mm
Fork length: 1150mm
Outer width of the fork: 560mm
Lowered height of fork: 90mm
Clearance: 30mm
Min. turning radius: 1460mm
Rear body height: 760mm
Aisle width (800*1200mm pallet): 2240mm
Aisle width (1000*1200mm pallet): 2320mm

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

Tags: Electric Pallet Stacker, Pallet Stacker

GET QUOTATION

[woocommerce_variations_table]

Characteristics

Type of drive: Full electric
Operator type: walkie
capacity: 1500kg
load center: 600mm
Wheel base: 1275mm

Weight

Wheel type: PU
Size of front wheels: c78mm
Size of drive wheels: c220mm
Size of balance wheels: c124mm
Wheels quantity(driving+banlance+loaden) 1+1+4pcs

Weight

Service weight without battery: 590kg
Service weight with battery: 640kg

Performance

Travel speed: laden 4.5 / unladen 4.7
Lift speed: laden 75mm/s – unladen 90mm/s
Lower speed: laden 85mm/s – unladen 75mm/s
Gradeability: laden 5% – unladen 7%

Electric engine

Drive motor 0.75Kw
Lift motor 2.2Kw
Battery voltage/capacity(20h): (12V/75Ah)2 V/Ah
Battery size: (260 172×170) 2 mm
Brake type: Electromagnetic
Control system: 1212P-2501 (CURTIS)

Additional information

Model	WS15SL
Weighing scale capacity	1.5 Ton
