AUW-D dual-range capacity and division. Its a analytical & semi-micro balance with UniBloc weight sensor.
Features:
- Analytical Balance
- Automatic touch-key calibration
- Motor-driven built-in calibration weight and fully-automatic calibration functions.
- Choice of fully-automatic calibrations: PSC and Clock –CAL
- Fully-automatic calibration Clock-CAL
- GPL/GMP/ISO calibration record
- Standard Below-Weigh Hook option
- Function: TARE, Zero, Auto Zero, Auto Power off, percentage weight, multi weighing units, basic PCS counting, print, environment adjust and more
- Multi units: grams (g), weigh in %, number of pieces, ct, kg, mg, lb, oz, TTI, etc. or a custom conversion more than 20 unit in all
- Shimadzu UniBloc sensor technology
- Windows-Direct Communication Function; Very easy that Only a cable is needed to send weighing data to a computer
- Continuous data output function
- Alpha-numeric menu LCD display with adjustable contrast
- Analog Bar Graph Display
- Comparator (Pass/Fail Judgment) with Buzzer Support
- Tray: Stainless Steel 80 mm Dia (rounded)
- RS232C interface
- Power: AC adaptor (DC 12V, 1A )
Free!
AU models are the newest single-range analytical balances engineered with the UniBloc technology. This provides fast response and superb stability in a 0.1mg analytical balance. Various application functions, two modes of fully automatic calibration and back lit display support any imaginable requirements.
User-friendly Features
WIDE User-friendly Weighing Chamber. The large dimensions of the weighing chamber allow easy
measurement of even tall flasks. Equalization in temperature before measurement is essential in precision weighing. This is easy with the extra space allowing samples to be kept inside the chamber.
Weighing work is made easy by the smooth door movement. The doors can be detached to allow the chamber to be cleaned with ease and it is also possible to remove, clean or replace the door rail.
- Analytical Scale
- Available capacities: 120 & 220 g
- Piece counting mode
- Formulation mode
- Automatic span calibration
- Efficient filling or dosing work
- Data management
- Windows Direct function
- Interval timer (AUW and AUX only)

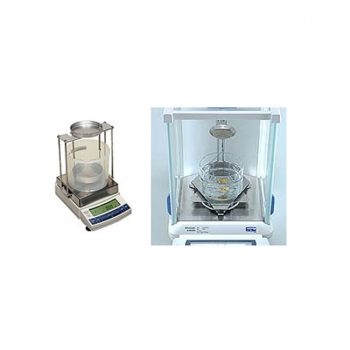

- Specific gravity measurement
- Below-weigh hook for Hanging measurement
- Easy Level Adjustment
- Metal Housing
- Backlit Display
- Comfortable Key Operation
- Analog Bar Graph Display
- In-use protective cover
- Data directly jumps to your Windows®
- Backlit LCD (AUW only)
- LCD with backlight can be read with ease and comfort under any lighting condition.
| Model | AUW-120D | AUW-220D |
| Capacity x Readability | 120 / 42gm
0.1 / 0.01 mg |
220 / 82 gm
0.1 / 0.01 mg |
| Repeatability | ≤0.1 mg (large range)
≤0.02 mg (small range) |
≤0.1 mg (large range)
≤0.05 mg (small range) |
| Linearity | ±0.2 mg (large range)
±0.03 mg (small range) |
±0.2 mg (large range)
±0.1 mg (small range) |
| Response Time | 3 s (large range)
12 s (small range) |
3 s (large range)
15 s (small range) |
| Ambient Temperature | 5°C – 40°C | |
| Temperature Coefficient Sensitivity (ppm/C) | ±2 ppm/°C (When PSC is Off) | |
| Keys | Power, CAL, Zero / Tare, unit, Print, 1d/10d | |
| Functions | Built in Calibration weight, PSC, Clock CAL, Built in clock, GLP/GMP/ISO Calibration report, Windows Direct, Formulation mode, Interval Timer output, RS232/IF, Specific gravity measurement software, piece counting, % display, Analog display | |
| Display & Size | LCD | |
| Weight Units | g, kg, ct, mom, %, pcs, Lb, Oz, Ozt, tl, dwt, GN, t, d | |
| Data output | RS232, I/F | |
| Weight calibration | In built | |
| Power | 7 VA approx. | |
| Pan Size | 80 mm Dia | |

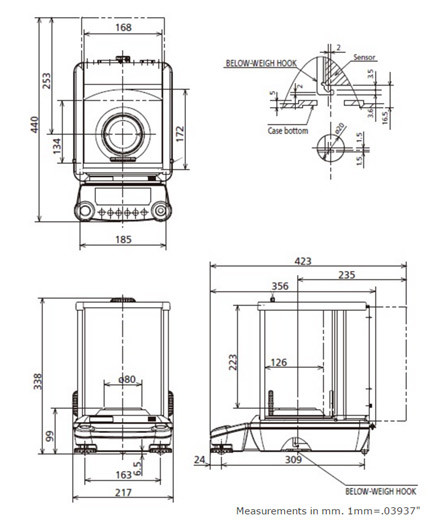

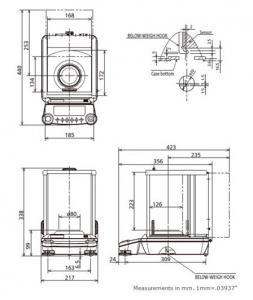

| Pan Dimensions (mm) | W220 mm × D330 mm × H310 mm approx. | |
| Product Weight (approx.) | 7 kg approx. | |
