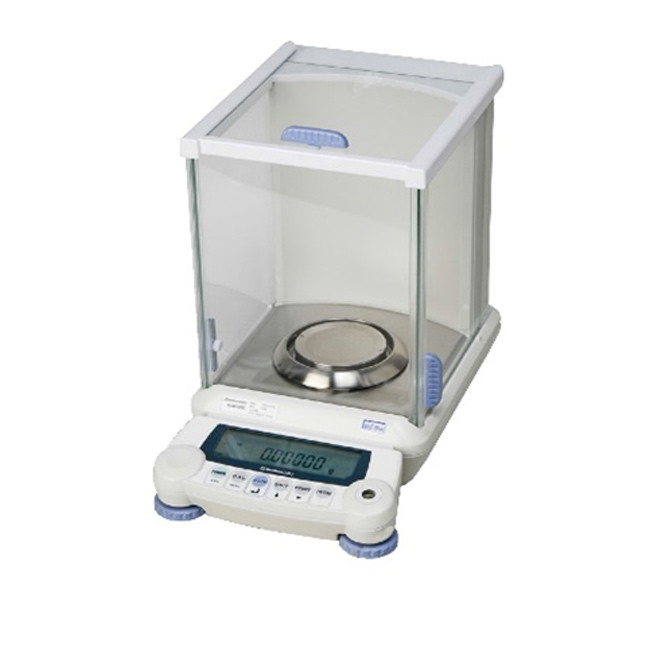

The Shimadzu AU series is an Analytical and semi-micro balances with Four Decimal Displays. it’s a laboratory weighing scales used by the pharmaceutical industry. This model comes with Unibloc sensor. The Shimadzu AU is a unique digital weighing scale that can come with optional internal calibration and dual division functions
Features:
- Analytical Balance
- GPL/GMP/ISO calibration record
- Standard Below-Weigh Hook option
- Function: TARE, Zero, Auto Zero, Auto Power off, percentage weight, multi weighing units, basic PCS counting, print, environment adjust and more
- Multi units: grams (g), weigh in %, number of pieces, ct, kg, mg, lb, oz, TTI, etc. or a custom conversion more than 20 unit in all
- Shimadzu UniBloc sensor technology
- Windows-Direct Communication Function; Very easy that Only a cable is needed to send weighing data to a computer
- Continuous data output function
- Alpha-numeric menu LCD display with adjustable contrast
- Analog Bar Graph Display
- Comparator (Pass/Fail Judgment) with Buzzer Support
- Tray: Stainless Steel 80 mm Dia (rounded)
- RS232C interface
- Power: AC adaptor ( DC12V, 1A )
We provide sales and after-sales service to our clients and authorized dealers for all models of Shimadzu weighing scales in UAE
Free!
AU models are the newest single-range analytical balances engineered with the UniBloc technology. This provides fast response and superb stability in a 0.1mg analytical balance. Various application functions, two modes of fully automatic calibration and back lit display support any imaginable requirements.
User-friendly Features

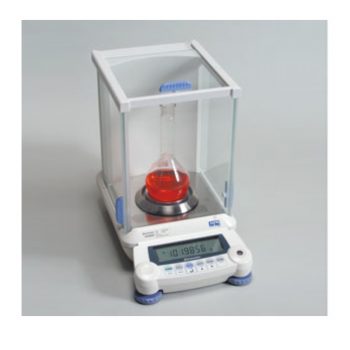

WIDE User-friendly Weighing Chamber. The large dimensions of the weighing chamber allow easy
measurement of even tall flasks. Equalization in temperature before measurement is essential in precision weighing. This is easy with the extra space allowing samples to be kept inside the chamber.
Weighing work is made easy by the smooth door movement. The doors can be detached to allow the chamber to be cleaned with ease and it is also possible to remove, clean or replace the door rail.
- Precision Scale
- Available capacities: 120, 220 & 320 g
- Piece counting mode
- Formulation mode
- Automatic span calibration
- Data management
- WindowsDirect function
- Interval timer (AUW and AUX only)

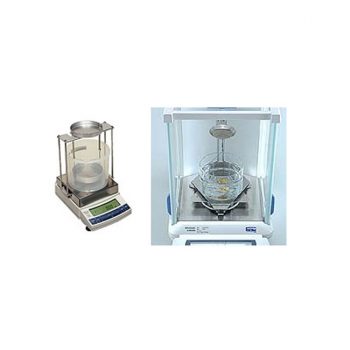

- Specific gravity measurement
- Below-weigh hook for Hanging measurement
- Easy Level Adjustment
- Metal Housing
- Backlit Display
- Comfortable Key Operation
- Analog Bar Graph Display
- In-use protective cover
- Data directly jumps to your Windows®
- Backlit LCD (AUW only)
- LCD with backlight can be read with ease and comfort under any lighting condition.
| Model | AUX120 | AUX220 | AUX320 |
| Capacity x Readability | 120gm
0.1 mg |
220 gm
0.1 mg |
320 gm
0.1 mg |
| Repeatability | ≤ 0.1 mg | ≤ 0.1 mg | ≤ 0.15 mg |
| Linearity | ±0.3 g | ± 0.3 g | ± 0.2 g |
| Response Time | 3 sec | ||
| Ambient Temperature | 5°C – 40°C | ||
| Temperature Coefficient Sensitivity (ppm/C) | ±2 ppm/°C (When PSC is Off) | ||
| Keys | Power, CAL, Zero / Tare, unit, Print | ||
| Functions | Built in Calibration weight, PSC, Built in clock, GLP/GMP/ISO Calibration report, Windows Direct, Formulation mode, Interval Timer output, RS232/IF, Specific gravity measurement software, piece counting, % display, Analog display | ||
| Display & Size | LCD With Back light Display | ||
| Weight Units | g, kg, ct, mom, %, pcs, Lb, Oz, Ozt, tl, dwt, GN, t, d | ||
| Data output | RS232, I/F | ||
| Weight calibration | In built | ||
| Power | 7 VA approx. | ||
| Pan Size | 80 mm Dia | ||

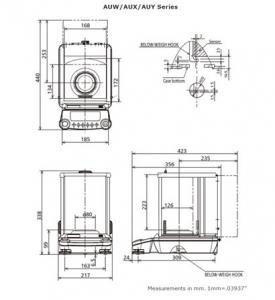

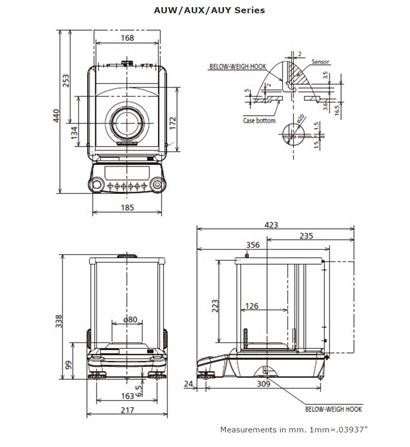

| Pan Dimensions (mm) | W220 mm × D330 mm × H310 mm approx. | ||
| Product Weight (approx.) | 7 kg approx. | ||
