CAS MWP Precision Balances

CAS MWP Precision Balances

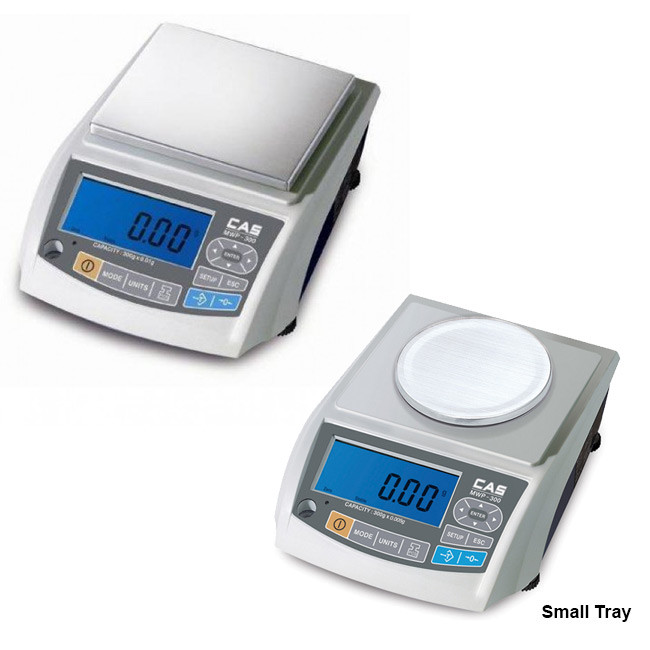

CAS MWP Precision Balance Series is very simple to use the electronic weighing scale. As its a precision balance it can be used as a gold weight scale

With a capacity of 600g up to 3000g (3kg), it also comes with the division of 0.1g or 0.01g

Features:

  • Precision Scale
  • Load Cells: Special high precision load cell
  • Display: Power saving LCD with back light
  • Total 8 Unit available (g, ct, lb, oz, GN, dwt, tl)
  • Functions: Unit conversion, Print, Counting, Percentage (%), TARE, Zero, Auto Calibration, Auto-Zero
  • Interface: RS-232 serial interface (PC, Printer)
  • AC/DC adaptor 110-220v, Internal rechargeable battery
  • Over Load Protection with alarm

Petra Mechatronics is an agent of many models of CAS scales in UAE providing it with excellent sales and service

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

United Arab Emirates +971
0 / 180

Cart

DESCRIPTION

The CAS MWP series is a gold scales comes usually with a division of 0.1gm or with 0.01gm that make it suitable to use for buying and selling gold Petra ME is a gold scales suppliers located in Dubai and offer sale and service in all UAE / Oman / Saudi. The user can also use the parts counting and percent weighing functions for special applications. Special functions are available for weighing in up to 8 different units of weight.
  • Precision Scale
  • Available Capacities: 600 gm, 3000 gm
  • High resolution up to 1/60,000
  • High accuracy
  • Total 8 units available (g, ct, lb, oz, GN, ozt, dwt,tl)
  • Counting, Weighing, Percentage Functions Modes
  • Large High Contrast Auto Blue Backlight (80 hrs Continuous use)
  • Built-in Rechargeable Battery and AC
  • RS232 serial interface (PC, Printer)
  • Wind Shield Included
  • Over Load Alarm Function
  • Auto Power off
  • Auto Span Calibration & Auto zero tracking

SPECIFICATIONS

Model MWP-H 600 MWP-H 3000
Capacity x Readability 600 gm

0.01 gm (10 mg)

3000 gm

0.05 gm (50 mg)

External Resolution 1/30,000 ~ 1/60,000
Digits 6 Digits (Weight)
Display & Size LCD (40Х95mm) with auto backlight
Weight Units 8 Standard Units (G, ct, Ib, oz, GN, oz t, dwt, tl, T)
Tare Range Full Capacity
Zero range ≤±2% of full capacity
Weight calibration  Automatic External
Response Time <100 ms
Stabilization Time ≤2 seconds
Keys On/Off, Mode, units, Pcs, Tare, Zero, Enter, Set up, Esc, 4 Arrow Keys for UP, down, left, right operations
Functions Weighing, Counting and percentage (%)
Power AC Adapter 12V DC/500mA & Internal rechargeable lead acid battery
Power Consumption 1 Watts Approx
Battery Life 80 hours continuous use with 12 hours recharging time
Operating Temperature 0 to 40/ 32 to 104℃℉
Humidity Range ≤90% relative humidity, non-condensing
Platter Size Ø116 Round 124(W) x 144(D) Square
Dimensions (mm) 200 (W) x 250(D) x 80(H)
Product Weight (approx.) 1.4
Warranty 1 Year

ACCESSORIES

  • Adaptor
  • USB Interface (optional)
  • Auxiliary LCD Display (optional)

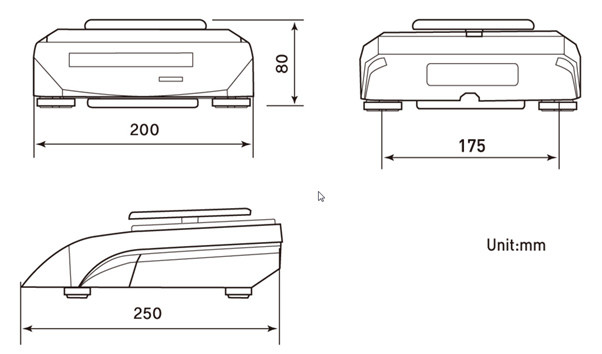

DIMENSIONAL DETAILS

CAS MWP Precision Balances Dimensions
