SENS OCS – X Crane Scale

SENS OCS – X Crane Scale

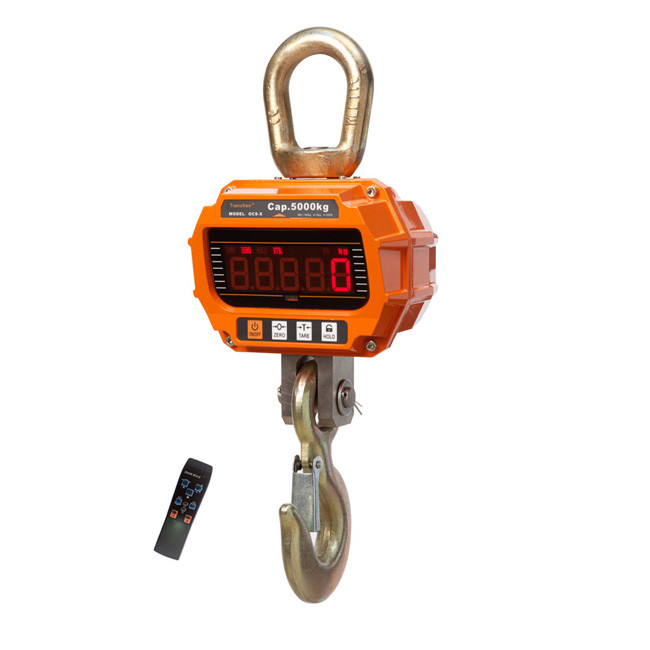

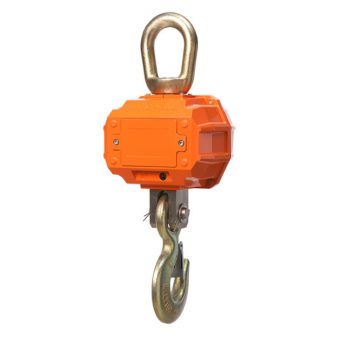

The OCS-X is a highly durable and accurate heavy duty crane weighing scale.

Features:

  • Integrated load receptor
  • Includes infra-red remote control
  • Body Structure: Aluminum die-casting Case with American Standard Fixed shackle and American standard eye hook
  • Available Capacities: 2000 to 5000 Kg
  • Waterproof panel
  • Display: 35 mm LED Display
  • High Capacity Rechargeable battery
  • Units: Kg/ Lb./ N
  • Resolution (Division) switch
  • Functions: Zero, Digital calibration, Tare,3-Point Calibration, Hold, Unit Switch, Battery Supervision, Resolution switch, Overload Alarm / record, Gravity Acceleration Set, Total Accumulation, Auto Zero, Auto Power off, anti-motion, illumination level, Gross & Net weight
  • Power: AC/DC with Rechargeable battery
  • Over Load Protection and alarm

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

United Arab Emirates +971
0 / 180

Cart

DESCRIPTION

The OCS-X is a highly durable and accurate heavy duty crane weighing scale. Constructed from lightweight aluminium this scale is hard-wearing, reliable and most importantly built to last. With capacities ranging from 1 ton to 5 ton it is suitable for a wide range of applications, and with graduations as low as 500g, you can guarantee that the weight readings are reliable and accurate. An infra-red remote control comes as standard with the scale, enabling the user to safely operate the scale from a distance. To maintain the scale’s accuracy and inner mechanisms the OCS-X is fitted with an overload protection alarm, which will sound when the scale is near its maximum load. The fixed shackle and hook of this scale are constructed from heavy duty stainless steel to provide the scale with strength and durability. Powered by an internal rechargeable battery this scale provides over 120 hours of continuous use. from a full charge. An AC adaptor is also provided to charge the rechargeable battery pack. Other features of this scale include Hold, Tare and Zero which all help the scale give accurate and reliable weight reading results. The OCS-X has a large, bright red LED display which makes the weight reading easy to see from distances even in poorly lit environments.
  • Heavy Duty Crane Scale
  • Easy to use
  • Great Safety
  • Strong Reliability
  • Broad Applicability
  • Complete function.
  • Includes infra-red remote control
  • Body Structure: Aluminum die-casting Case with American standard Fixed shackle and American standard eye hook
  • Available Capacities: 2000, 3000 & 5000 Kg
  • Waterproof panel
  • Display: 35 mm LED Display
  • High Capacity Rechargeable battery
  • Units: Kg/ Lb./ N
  • Resolution (Division) switch
  • Zero
  • Digital calibration
  • Tare
  • 3-Point Calibration
  • Hold
  • Unit Switch
  • Battery Supervision
  • Resolution switch
  • Overload Alarm / record
  • Gravity Acceleration Set
  • Total Accumulation
  • Auto Zero, Auto Power off
  • Anti-motion
  • Illumination level
  • Gross & Net weight
  • Power: AC/DC with Rechargeable battery
  • Over Load Protection and alarm

SPECIFICATIONS

Model OCS-X-2 OCS-X-3 OCS-X-5
Capacity x Readability 2000 Kg

1 kg

300Kg

1 Kg

500Kg

2Kg

Legal for Trade

Class III Equivalent to OIML R76

Digits 5 Digit
Display & Size 35 mm LED
Tare Range 100% F.S.
Auto Zero ±20% F.S.
Manual Zero ±4% F.S.
Zerotracking 0.5e/s
Reading Stable Time ≤10 seconds
Overload 100% F.S. + 9e
Max. Safety Load 150% F.S.
Ultimate Load 400% F.S.
Keys Power, Tare, Zero, Hold
Functions Zero, Digital calibration, Tare, 3-Point Calibration, Hold, Unit Switch, Battery Supervision, Resolution switch, Overload Alarm / record, Gravity Acceleration Set
Operating Temp – 10 °C ~ + 40 °C
Operating Humidity 20℃ ≤90%
Battery 6V/4Ah lead acid rechargeable battery.
Adaptor 100~220VAC 50/60Hz input , 7.2VDC/1000mA output
Battery Life >80 hours
Remote Distance 10 Meter
Warranty 3 Years

ACCESSORIES

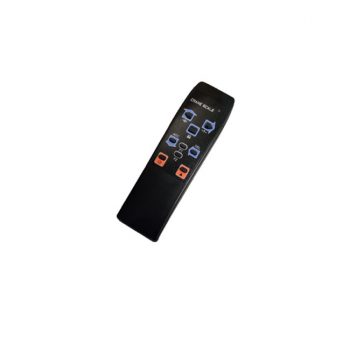

  • Remote Control

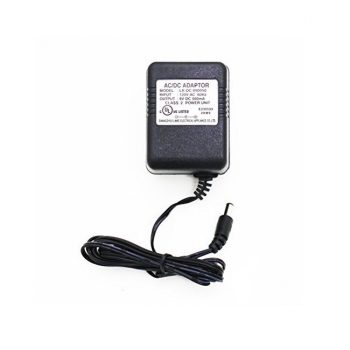

  • Adaptor

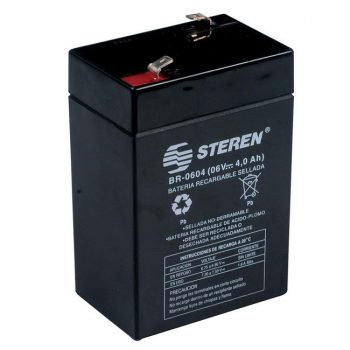

  • Battery

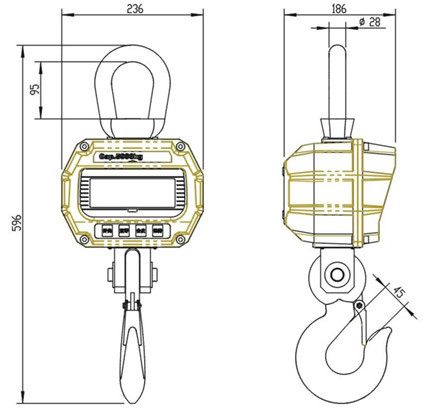

DIMENSIONAL DETAILS

SENS OCS X Crane Scale dimensions
