SENS OCS – S1 Compact Crane Scale

SENS OCS – S1 Compact Crane Scale

OCS-S1 hanging/crane scale provides the most efficient, simple solution to suspension weighing.

Features:

  • Portable Compact Crane Scale
  • Lightweight, highly accurate crane scale
  • Includes infra-red remote control
  • Body Structure: Aluminum die-casting Case with Stainless Steel Shackle and Alloy steel hook
  • Available Capacities: 100 to 1000 Kg
  • Waterproof panel
  • Display: LED Module Display
  • Long Battery Life
  • Units: Kg/ Lb./ N
  • Functions: Units Conversion, Hold, TARE, Zero, Calibration, Auto Zero, low battery, Auto Power Off
  • Battery powered (4x AA batteries)
  • Over Load Protection and alarm

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

United Arab Emirates +971
0 / 180

Cart

DESCRIPTION

The OCS-S1 is a hanging/crane scale that has fast become one of our best-selling crane scales. Constructed of aluminium it is a hardwearing and reliable crane scale which is built to last. With capacities ranging from 100kg to 1 ton it is suitable for a wide range of applications: there is a weighing solution for everybody. To ensure that the OCS-S1 is always highly accurate and reliable an overload alarm is fitted which will sound when the scale is reaching its maximum load. An infra-red remote control is provided with this scale making it easy to operate the scale from a safe distance. The hook and shackle of the OCS-S1 is stainless steel which provides strength and durability. Additional features such as auto-power off, and auto-dim, which will lower the brightness on the indicator, prolongs the battery life even more! Tare, Zero and Hold features ensure that reliable and accurate readings are always provided. The scale has a large, bright red LED display which makes the weight reading easy to see from distances or in poorly lit environments.
  • Portable Compact Crane Scale
  • Lightweight, highly accurate crane scale
  • Includes infra-red remote control
  • Great Safety
  • Strong Reliability
  • Broad Applicability
  • Complete function.
  • Body Structure: Aluminum die-casting Case with Stainless Steel Shackle and Alloy steel hook
  • Available Capacities: 100 to 1000 Kg
  • Waterproof panel
  • Display: LED Module Display
  • Long Battery Life
  • Units: Kg/ Lb./ N
  • Units Conversion
  • Hold
  • TARE
  • Zero
  • Calibration
  • Auto Zero
  • Low battery
  • Auto Power Off
  • Battery powered (4x AA batteries)
  • Over Load Protection and alarm

SPECIFICATIONS

Model OCS-01-S1 OCS-03-S1 OCS-05-S1 OCS-1-S1
Capacity x Readability 100 Kg

0.05 kg

300Kg

0.1Kg

500Kg

0.2Kg

1000 Kg

0.5 Kg

Legal for Trade

Class III Equivalent to OIML R76

Digits 6 digits (weight)
Display & Size LED , 25.4 mm Ultra bright LED
Tare Range 100% F.S.
Auto Zero ±20% F.S.
Manual Zero ±4% F.S.
Zerotracking 0.5e/s
Reading Stable Time ≤10 seconds
Overload 100% F.S. 9e
Max. Safety Load 120% F.S.
Ultimate Load 400% F.S.
Keys Power, Hold/unit, Tare/Zero
Functions Zero Tare In/Tare Out, Hold, Auto Power off Battery

Supervision, Overload Alarm, Unit Switch

Operating Temp – 10 °C ~ 40 °C
Operating Humidity 20℃ ≤90%
Power 4*AA  battery
Battery Life >100 hours
Dimensions 280 x 150
Product Weight (approx.) Net Weight : 620 gm
Warranty 3 Years

ACCESSORIES

  • Power Adaptor

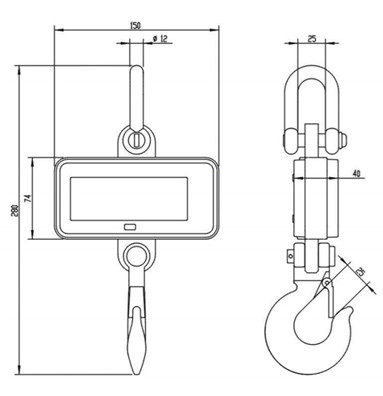

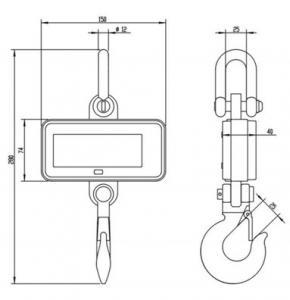

DIMENSIONAL DETAILS

SENS OCS S1 Compact Crane Scale dimensions
