CAS MWP C Counting Precision
CAS MWP C Counting Precision
CAS MWP-C is weighing scales with full counting function. Its a high precision weighing balance also. This makes counting small lightweight parts and devices become easy job.
its used in industries like semiconductor factories and trading company, pharmaceutical companies and laboratories.
Features:
- Precision Scale
- Load Cells: Special high precision load cell
- Display: Power saving LCD with back light
- Total 8 Unit available (g, ct, lb, oz, GN, dwt, tl)
- Ability to control the scale via PC (perfect Key-command function)
- 10 label printing formats
- Functions: Unit conversion, Advance Counting, Print, Percentage(%), TARE, Zero, Auto Calibration, Auto-Zero
- Interface: RS-232 serial interface (PC, Printer)
- AC/DC adaptor 110-220v, Internal rechargeable battery
- Over Load Protection with alarm
Petra ME offers to all service and repair for CAS scales. We all sell and deliver all models of CAS weighing machines in UAE, Oman, Saudi and Jordan
ADD TO CART to buy or to Request for Quotation (RFQ)
DESCRIPTION
- Precision Scale
- Available Capacities: 600 gm, 3000 gm
- High precision counting function
- RS-232C interface, Connect to PC or Printer
- Supports 10 label printing formats
- Protective Wind Shield
- High precision & resolution (External resolution 1/30,000~1/60,000)
- LCD display with 3 independent readings
- Overload alarm function
- Auto-off function
- Ability to control the scale via PC (perfect Key-command function)
- Wind shield (5 pcs)
- Rechargeable battery
- Comparison function (Weight, Count)
SPECIFICATIONS
| Model | MWP-CH 600 | MWP-CH 3000 |
| Capacity x Readability | 600 gm
0.01 gm (10 mg) |
3000 gm
0.05 gm (50 mg) |
| Internal Resolution | 1/600,000 | |
| Digits | 6 Digits (Weight) | |
| Display & Size | LCD display(three display areas, Weight, Unit Weight and Count), blue color LCD backlight | |
| Weight Units | 2 available units(g, lb) | |
| Tare Range | Full Capacity by Subtraction | |
| Zero range | ≤±2% of full capacity | |
| Weight calibration | Automatic External | |
| Response Time | <100 ms | |
| Stabilization Time | ≤2 seconds | |
| Keys | On/Off, Mode, units, Pcs, Tare, Zero, Enter, Set up, Esc, 4 Arrow Keys for UP, down, left, right operations | |
| Functions | Counting(normal mode), Weighing, Accumulation, Hi-Lo Check-count/weight | |
| Power | AC Adapter 12V DC/800mA & Internal rechargeable lead acid battery 6V/1.2Ah | |
| Battery Life | 20 hours continuous use with 12 hour recharge time | |
| Interface | Standard RS232C (PC/Printer) | |
| Operating Temperature | 0 to 40/ 32 to 104℃℉ | |
| Humidity Range | ≤90% relative humidity, non-condensing | |
| Platter Size | Ø116 Round | 124(W) x 144(D) Square |
| Dimensions (mm) | 200 (W) x 250(D) x 80(H) | |
| Product Weight (approx.) | 1.4 | |
| Warranty | 1 Year | |
ACCESSORIES
- Adaptor
- Ticket printer (optional)
- Label printer (optional)

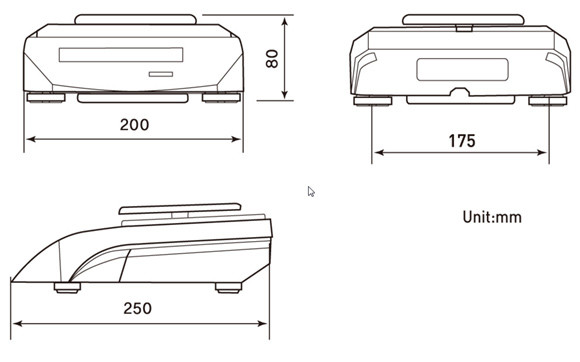

DIMENSIONAL DETAILS
