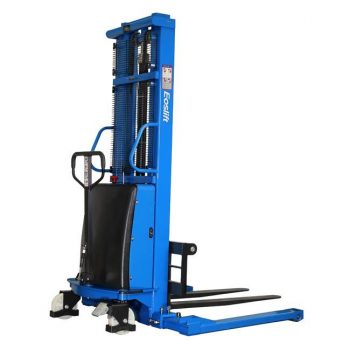

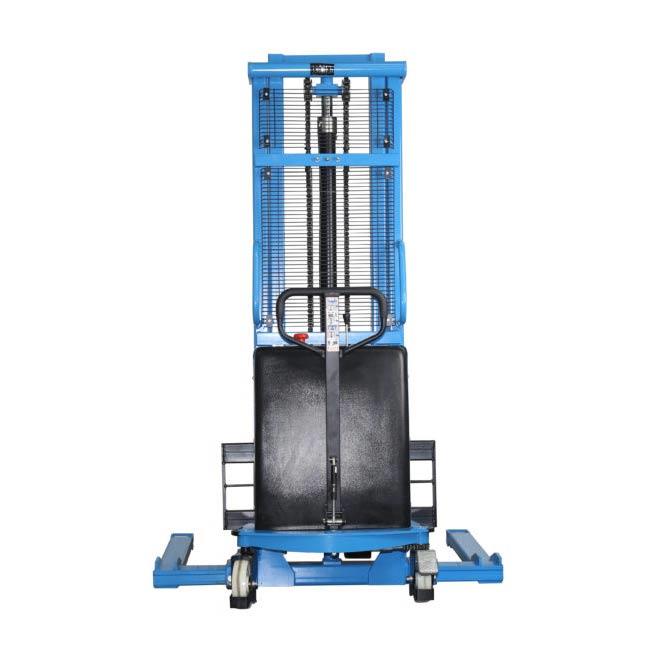

EOSLIFT S15J Semi Electric Stacker

EOSLIFT S15J Semi Electric Stacker

Eoslift semi electric stacker is an industrial material handling vehicle powered by battery. It is a very useful and essential equipment for transporting pallets and containers. Eoslift’s S series have gained the CE certificate, and is designed to operate in narrow passages and limited space. They are ideal to use for loading and unloading. It features easy operation with little noise and pollution, and low malfunction rate.

Features:

  • Wide Applicability
  • Safe & Comfort
  • Stable & Reliable
Model Number Fork Length Capacity Lifting Height
S -15 J 1150 mm 1500 Kg 3 m

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

United Arab Emirates +971
0 / 180

Cart

DESCRIPTION

S15J Semi Electric Stacker has 1600W lift motor, heavy duty pump and control valve ensure the dependability of hydraulics. Built-in safety valve prevents overloading. Automatic Flow control valve blocks excessive pressure and provides variable fork lowering speed. Solid chrome plated piston rod guarantees smooth lift/lower operation Mast constructed of structural steel for enhanced stability, and optimal performance.
  • Used for loading goods onto or unloading goods from pallets and stacking goods
  • Compact truck body, especially suitable for narrow aisles and small spaces

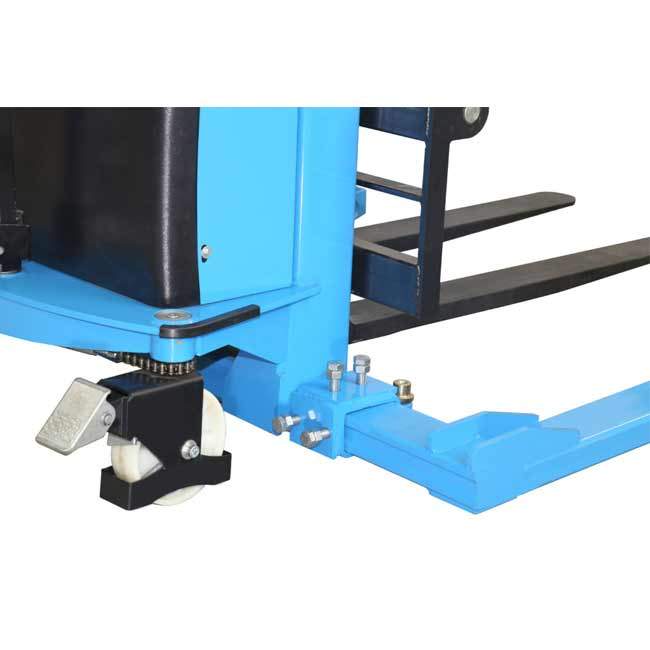

  • Straddle and forged forks available.
  • Hydraulic reservoir with filter, effectively prevents contamination by foreign matters, ensuring a long service life of the hydraulic system
  • With a transparent acrylic guarding plate, to provide a broader vision and better protection

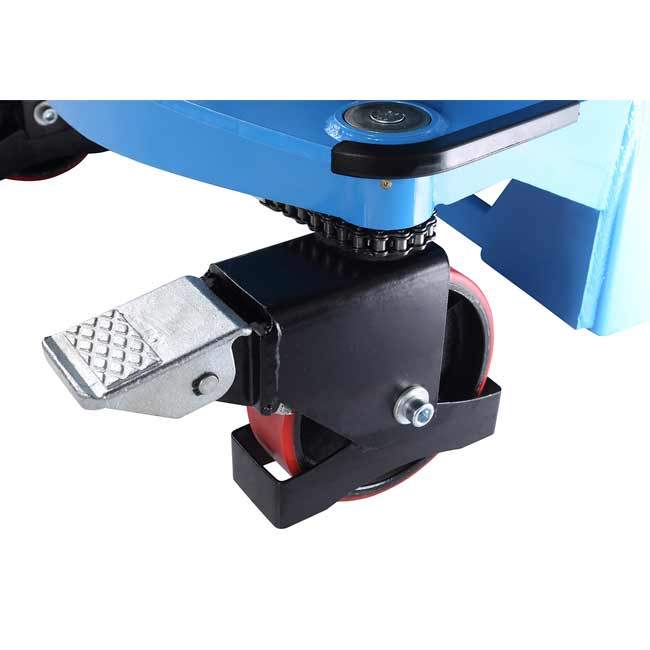

  • Anti-pressure caster frame, intimate protection handle ergonomically designed to ensure maximum safety and comfort with a mechanical assist steering, steering more easily
  • Ergonomic handle to ensure optimum safety and comfort
  • Mechanically assisted steering system for easy travel.
  • Efficient and energy-saving power unit
  • Overload protection
  • Throttle valve with pressure compensation function enables stable and reliable lowering
  • Frame constructed of high-strength C type steel, especially for double frame series which will be more stable when lifting and lowering.

SPECIFICATIONS

Model S-15 J
Rated capacity lb. 3300
Load center in. 23.6
Service weight lb. 990
Minimum fork height in. 1.4
Maximum fork height in. (H2) 118.1
Lowered Mast Height in. (H) 81.1
Fork length in. (L) 45.3
Overall fork width in. (B1) 8.3-32.7
Length of the stacker in. (L1) 69.6
Width of the stacker in. (B3) 41.3-57.1
Minimum turning radius in. (R) 52.6
Battery V/Ah 12/120

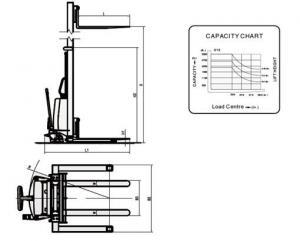

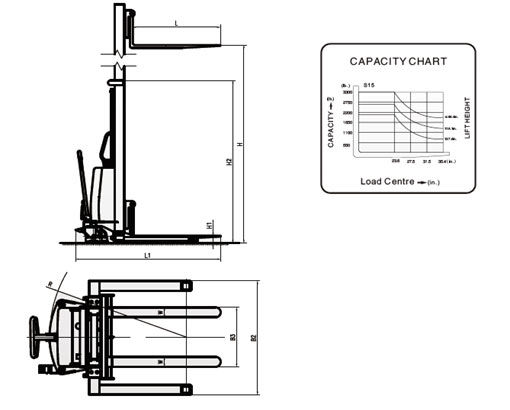

DIMENSIONAL DETAILS

Semi Electric Stacker dimensions
