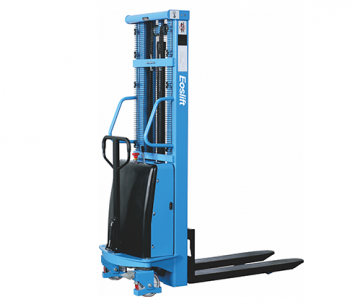

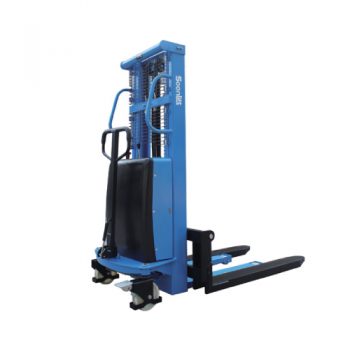

EOSLIFT S1530 Semi-electric Stacker

EOSLIFT S1530 Semi-electric Stacker

  • Used for loading goods onto or unloading goods from pallets and stacking goods
  • Compact truck body, especially suitable for narrow aisles and small spaces
  • Efficient and energy-saving power unit
  • Overload protection
  • Frame constructed of high-strength C type steel
  • Throttle valve with pressure compensation function enables stable & reliable lowering
  • Hydraulic reservoir with filter, effectively prevents contamination by foreign matters
  • Ergonomic handle to ensure optimum safety and comfort
  • Mechanically assisted steering system for easy travel
  • Anti-pressure caster frame
Model Number Capacity Lifting Height Fork Width Fork Length
S1530 1500 Kg 3 m 330 – 830 mm 1150

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

United Arab Emirates +971
0 / 180

Cart

DESCRIPTION

· For narrow aisles and confined areas, with fixed legs for open pallets and skids only. · Additional protection for the operator with foot protection on the steering rollers. · Safe to park in any situation with mechanical parking brake.

SPECIFICATIONS

Lowered fork height (mm) 85
Max. lifting height (mm) 3500
Lowered mast height (mm) 2030
Fork length (mm) 1150
Fork width (mm) 550/330-830
Turning radius (mm) 1350
Overall length (mm) 1800
Overall width (mm) 745/864
Steering wheel (mm) φ180×50
Loaded wheel (mm) φ74×70
