iGaging Bore Gauges 3-in-1 Extended Range - Digital Absolute Technology - From .7″ To 6″/.00005″- IP54
iGaging Bore Gauges 3-in-1 Extended Range - Digital Absolute Technology - From .7″ To 6″/.00005″- IP54 - Image 2
iGaging Bore Gauges 3-in-1 Extended Range - Digital Absolute Technology - From .7″ To 6″/.00005″- IP54 - Image 3
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]

Tags:

Brand:

iGaging Bore Gauges 3-in-1 Extended Range – Digital Absolute Technology – From .7″ To 6″/.00005″- IP54

Categories: ,

Call for price

[posbadges]
  • Super Precision Deep Bore Gauge
  • Measures bore to 10″ deep, Range 1.4″ to 6″ diameter
  • 0.0005″ precision graduations

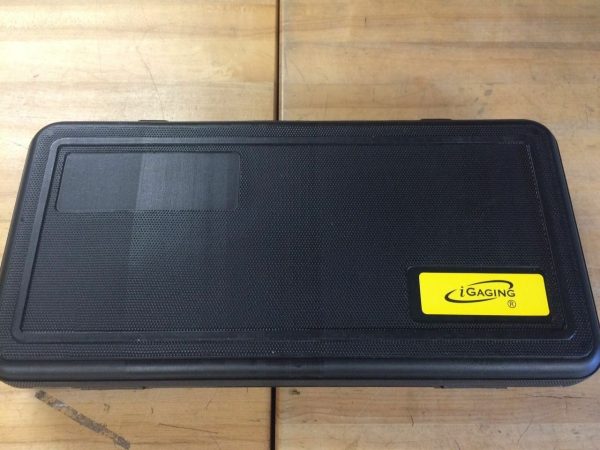

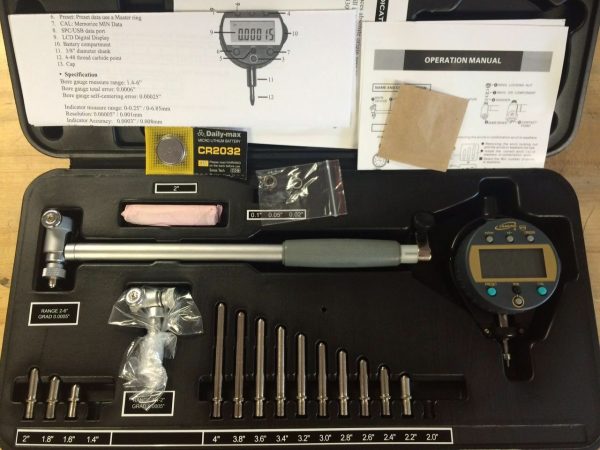

  • Includes gauge and interchangeable contact points Dial indicator contains jeweled bearings, ABS storage case included
  • Dial indicator contains jeweled bearings, ABS storage case included



Part no.: 35-2868-i

GET QUOTATION

Brand:

iGaging Bore Gauges 3-in-1 Extended Range – Digital Absolute Technology – From .7″ To 6″/.00005″- IP54

iGaging Bore Gauges 3-in-1 Extended Range - Digital Absolute Technology - From .7″ To 6″/.00005″- IP54
iGaging Bore Gauges 3-in-1 Extended Range - Digital Absolute Technology - From .7″ To 6″/.00005″- IP54 - Image 2
iGaging Bore Gauges 3-in-1 Extended Range - Digital Absolute Technology - From .7″ To 6″/.00005″- IP54 - Image 3

Categories: ,

Call for price

[posbadges]
  • Super Precision Deep Bore Gauge
  • Measures bore to 10″ deep, Range 1.4″ to 6″ diameter
  • 0.0005″ precision graduations
  • Includes gauge and interchangeable contact points Dial indicator contains jeweled bearings, ABS storage case included
  • Dial indicator contains jeweled bearings, ABS storage case included



Part no.: 35-2868-i

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]

Tags:

GET QUOTATION
[woocommerce_variations_table]

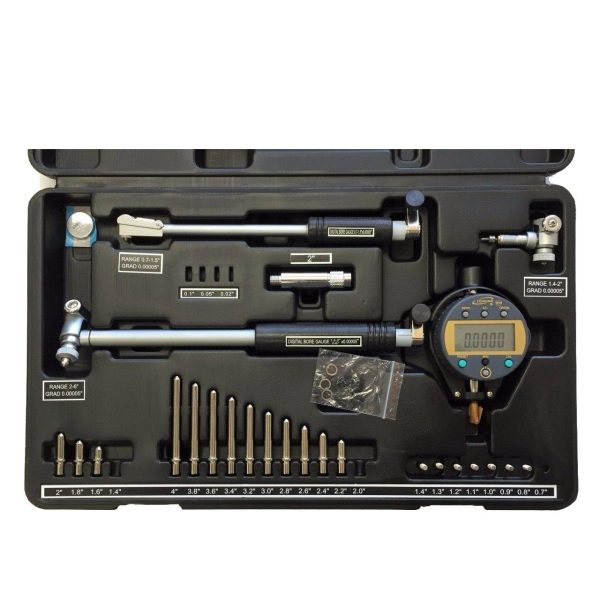

Measure these ranges with this kit:

  • 0.7″ to 1.5″
  • 1.4″ to 2″
  • 2″ to 6″



Specifications:

  • Bore gauge measuring range 0.7″ to 6″
  • Bore gage total error: 0.0006″
  • Bore gage self-centering error: 0.00025″
  • Indicator measure range: 0-0.25″ / 0-6.85mm
  • Resolution: 0.00005″ / 0.001mm
  • Indicator Accuracy: 0.0003″ / 0.008mm
  • Indicator Repeatability: 0.00005″ / 0.001mm
  • Battery: 3V CR 2032 (included)



Description:

  • Inch/metric interchange between inch and metric reading
  • +/-: change measure direction
  • Power On/Off
  • Origin: Press 3 seconds to set Origin zero
  • MIN: minimum diameter
  • Preset: Preset data use a Master Ring
  • Cal: Memorize MIN Data
  • IP54 Water drop and Dust resistance
  • 330 Degree rotation for indicator face
  • LCD Digital Display
  • Battery Compartment
  • 3/8″ Diameter Shank
  • 4-48 Thread Carbide Point
  • Instructions are included



iGaging part number: 35-2868-i

Additional information

Model

35-2868-i
Sizes

.7″ To 6″/.00005″ (Inch/mm)
Resolution

0.00005" / 0.001mm
Accuracy

0.0003" / 0.008mm
