TMT TXI 500 T Axle Load Scale Indicator

TXI 500 T Axle Load Scale Indicator
Catalogue
Manual
No additional files available

TMT TXI 500 T Axle Load Scale Indicator

TMT’s Wireless / WiredType Axle Load Scale Indicator, which is called the ‘TXI’ is equipped with an LCD display (also with Backlight functions) on a box with various keys and uses a Lead Acid Battery Pack that is easy to replace and is charged easily.

 Features:

 Wireless Axle wheel/Container Indicator

  • Dynamic and static weighing
  • Built in thermal printer
  • Memory for 10,000 Truck
  • USB, RS232 interface
  • Rechargeable battery
  • LCD display with backlight
  • Up to 12 Platforms for Wireless and 8 for wired
  • Over Load Protection and alarm



ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

United Arab Emirates +971
0 / 180

Cart

AED 0.00

DESCRIPTION

The world trend toward an Axle Load Scale with Cable Type has been changed into an Axle Load Scale with Wireless Type because it is easy to set up and convenient to maintain. The Wireless Type Axle Load Scale is getting spread out widely around the world. TXI-500F Indicator can share data with the platform by using Zigbee Wireless Communication and it has a huge memory in which you can store information of over 10,000vehicles, since it is equipped with a printer, you can print whenever you want to. In addition, RS232C and USB Host is inside the indicator so, you can enjoy a variety of functions.
  • Portable Axle wheel Scale Indicator
  • Portable & watertight case
  • Indicators for measuring axle
  • Thermal printer is built in
  • Memory capacity : 10K vehicles
  • Standard RS232C
  • USB host (For USB memory stick)
  • Wireless communication by using ZigBee (F type)
  • Possible to use Weight-In-Motion mode and Static mode

SPECIFICATIONS

Model TXI-500T TXI-500TF
Type                       Load cell cable Wireless
Display & Size 4.3 inch TFT-LCD(480 x 272)
Product dimensions (W x L x H) 272 x 247 x 125 (mm)
Product Weight (approx.) Approx. 4.5kg
Display lamp Low battery, Stable, Zero, Platform number, Charging state
Operating Time Approx. 70hr Approx. 65hr
Temperature Range -10℃ ～40℃
Battery 6VDC Lead-acid battery
Battery Life Approx. 70hr
Printer Direct line to thermal printer, paper Size : Ф40 x 57mm
Platform connection Up to 8 platforms Up to 12 platforms
Parts Charging adaptor
Warranty 1 Year

ACCESSORIES

  • Rechargeable Adaptor

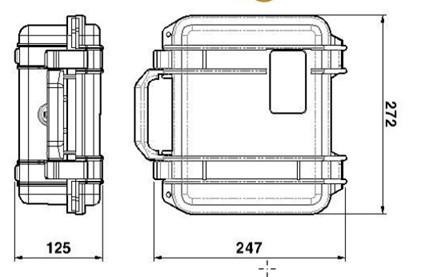

DIMENSIONAL DETAILS

dimentinal drawings
