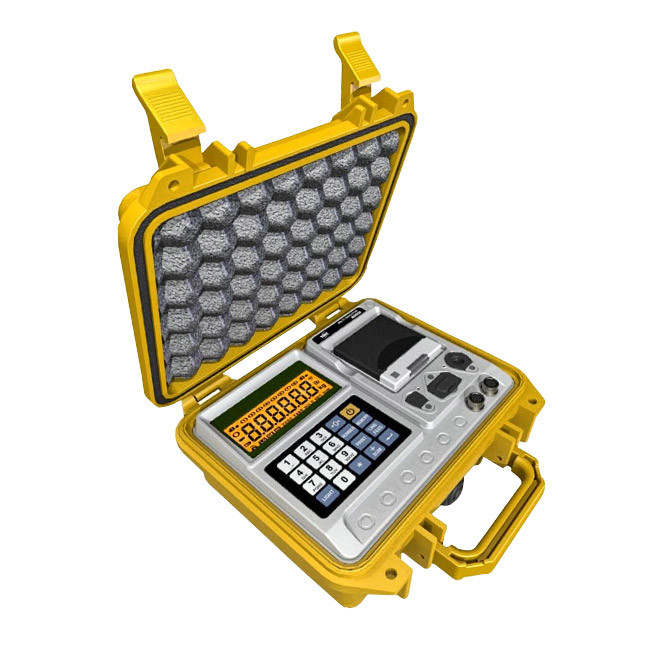

TMT’s Wireless / WiredType Axle Load Scale Indicator, which is called the ‘TXI’ is equipped with an LCD display (also with Backlight functions) on a box with various keys and uses a Lead Acid Battery Pack that is easy to replace and is charged easily.
Features:
Wireless Axle wheel/Container Indicator
- Dynamic and static weighing
- Built in thermal printer
- Memory for 10,000 Truck
- USB, RS232 interface
- Rechargeable battery
- LCD display with backlight
- Up to 12 Platforms for Wireless and 8 for wired
- Over Load Protection and alarm
Free!
The world trend toward an Axle Load Scale with Cable Type has been changed into an Axle Load Scale with Wireless Type because it is easy to set up and convenient to maintain. The Wireless Type Axle Load Scale is getting spread out widely around the world.
TXI-500F Indicator can share data with the platform by using Zigbee Wireless Communication and it has a huge memory in which you can store information of over 10,000vehicles, since it is equipped with a printer, you can print whenever you want to. In addition, RS232C and USB Host is inside the indicator so, you can enjoy a variety of functions.
- Portable Axle wheel Scale Indicator
- Portable & watertight case
- Indicators for measuring axle
- Thermal printer is built in
- Memory capacity : 10K vehicles

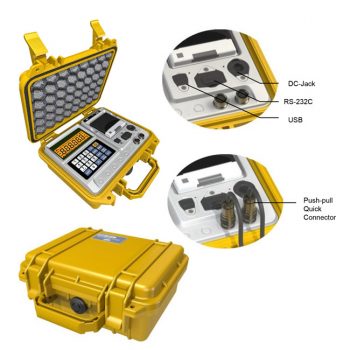

- Standard RS232C
- USB host (For USB memory stick)
- Wireless communication by using ZigBee (F type)
- Possible to use Weight-In-Motion mode and Static mode
| Model | TXI-500T | TXI-500TF | |||
| Type | Load cell cable | Wireless | |||
| Display & Size | 4.3 inch TFT-LCD(480 x 272) | ||||
| Product dimensions (W x L x H) | 272 x 247 x 125 (mm) | ||||
| Product Weight (approx.) | Approx. 4.5kg | ||||
| Display lamp | Low battery, Stable, Zero, Platform number, Charging state | ||||
| Operating Time | Approx. 70hr | Approx. 65hr | |||
| Temperature Range | -10℃ ～40℃ | ||||
| Battery | 6VDC Lead-acid battery | ||||
| Battery Life | Approx. 70hr | ||||
| Printer | Direct line to thermal printer, paper Size : Ф40 x 57mm | ||||
| Platform connection | Up to 8 platforms | Up to 12 platforms | |||
| Parts | Charging adaptor | ||||
| Warranty | 1 Year | ||||
