CAS PR-C Counting Scale

CAS PR-C Counting Scale

PR-C is weighing and counting scale available for sale. can be used anywhere due to its highly qualified performance and it is suitable for use in parts production.

Features:

  • Counting Scale
  • Body Structure: ABS scale body with stainless steel upper tray
  • Tray Size: 323×213 mm stainless steel upper
  • Load Cells: standard OIML single point type
  • Display: LED
  • Selectable units: kg, g, lb., oz.
  • Functions: Advance Counting, unit conversion, Print, Hold, Accumulation, TARE, Zero, Check weight, Percentage (%), Auto Calibration, Auto Zero
  • Interface: RS232 (PC/Printer)
  • AC 110-240v with rechargeable battery
  • Over Load Protection with alarm

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION


Cart

DESCRIPTION

The counting scale can handle a maximum weight of 30kg providing accuracy that measures to 0.1g precision. PR-C can be connected with label or ticket printer for printing useful information such as weight, date, and quantity. It will indicate whether the actual weight of the loaded items is out of the present range with alarm beep sounds.
  • Counting Scale
  • Available Capacities: 3 Kg, 6 Kg, 15Kg, 30 Kg
  • High resolution(1/30,000)
  • Counting and percentage comparison function
  • (HI/OK/LO) with alarm beeps
  • RS-232C interface(PC/PRINTER)
  • Rechargeable battery
About Petra ME counting scales: As we are a leading supplier of weighing scales suppliers in UAE especially Dubai, Sharjah, and Abu Dhabi. We offer sales and service (repair, maintenance and calibration) of many models of counting scales in UAE and other GCC countries including Oman and Saudi. We supply also customized counting scales in UAE for different piece counting and sorting applications include coin counting weighing machines. for more details please feel free to call us to know more about our products range

SPECIFICATIONS

Model PR-C-3 PR-C-6 PR-C-15 PR-C-30
Capacity x Readability 3 Kg

0.1 g

6 Kg

0.2 g

15 Kg

0.5Kg

30 Kg

1 gm

Legal for Trade

Class III Equivalent to OIML R76

External Resolution 1/30,000
Internal Resolution 1/600,000
Digits 6 Digits
Display & Size 25 mm, LED
Weight Units Kg, g, Lb, Oz
Keys Power, Tare, Zero, Counting Keys, Numeric Keys 0 to 9
Functions Advance Counting, unit conversion, Print, Hold, Accumulation, TARE, Zero, Check weight, Percentage (%), Auto Calibration, Auto Zero
Battery 6V/5Ah lead acid battery
Adaptor AC 220~240, 50/60Hz, Pb Battery 6V/4Ah
Battery Life 100 hours
Operating Temperature 0˚C~40˚C
Dimensions (mm) 335(W)x336.1(D)x103(H) Platter Size : 322(W)x212(D)
Product Weight (approx.) 3.5 Kg
Warranty 1 Year

ACCESSORIES

  • Adaptor
  • Rechargeable Battery

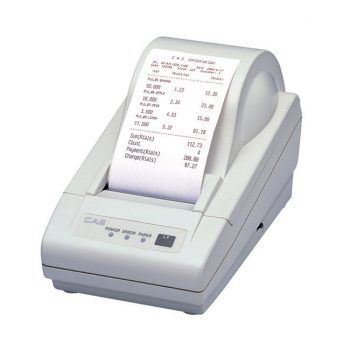

  • DEP-50 Thermal Printer (Optional)

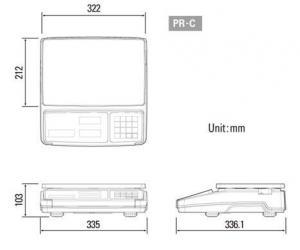

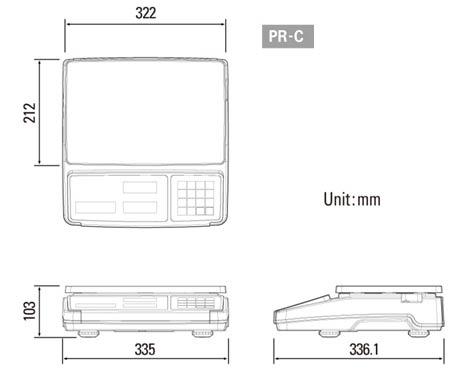

DIMENSIONAL DETAILS

CAS PR C Counting Scale dimensions
