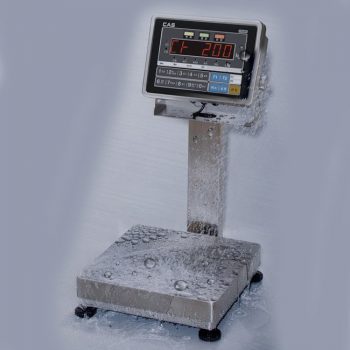

CAS CI200SC Waterproof Platform Bench Scale

CAS CI200SC Waterproof Platform Bench Scale

CAS CI200 series is designed for static check-weighing operations along with other bench weighing applications from general purpose to wash-down. Suitable for use in wet and harsh industrial environments due to its fully stainless steel construction that offers durability and cleanliness

Features:

  • Waterproof Platform Scale
  • Available Capacities: from 150 Kg & 300 Kg
  • Display: 25mm LED
  • Body Structure:
  • Platform: Full stainless Steel 304 Waterproof Structure & Tray,
  • Indicator: Waterproof Wash-down Stainless Steel IP67, Wall/Desk Mount kit Included
  • Load Cells: Stainless Steel waterproof OIML Single point type
  • Adjustable Rubber Corner Legs
  • Leveling Bubble
  • Chrome Plated Standard Pole
  • Load Cells: 1 nos. of Stainless Steel waterproof OIML Single point type
  • legs: 4 height adjustable swivel Stainless steel and rubber feet
  • Selectable Units: Kg/ Lb.
  • Functions: Unit Conversion, Hold, Accumulation, TARE, Net, Gross, Zero, Check Weight, Auto Calibration, Auto Zero, livestock stabilization, Illumination Level, Auto off,
  • Interface: Serial RS232
  • AC/DC adaptor 110-240v with rechargeable battery
  • Over Load Protection with alert

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION


Cart

DESCRIPTION

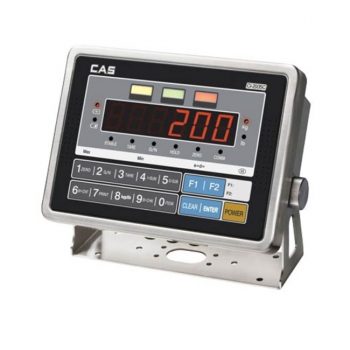

CAS CI-200SC Digital Check-Weigh Indicator series is a compact weighing Indicator with stainless steel housing (IP67). LCD display with check-weigh lights for static check-weighing scales. Platform Structure is Waterproof Wash-down Stainless Steel and 6 wire and 4 wire load cell support and PC command mode. Applicable for various weighing applications, with the added flexibility of manually setting functions via numeric keys. The CI-200SC series has an internal rechargeable battery and is highly portable and ideal for wet & harsh environments.
  • Waterproof Platform Scale
  • 72 Hrs of continuous use (6V4Ah Sealed Batteries)
  • Available capacities: 150, 300 Kg
  • Brighter and Clear LED Display
  • 3 colored check-weighing lights
  • IP67 grade Stainless steel structure
  • Number Key & Function Key applied
  • High Speed A/D conversion speed (80 times/sec)
  • Built-in Chargeable battery
  • Selectable Units: Kg/ Lb.
  • Functions:
  • Hold
  • TARE
  • Net
  • Gross
  • Zero
  • Check Weight
  • Auto Calibration
  • Auto Zero
  • Livestock stabilization
  • Illumination Level
  • Auto off
  • Interface: Serial RS232
  • Leveling Bubble
  • Chrome Plated Standard Pole
  • Legal for trade
  • Great for all type of Industries

SPECIFICATIONS

Model CI-200S-LP-4560-150 CI-200S-LP-4560-300
Capacity x Readability 150 Kg

10 gm

300 Kg

20 gm

Resolution Internal Degradability: 1/520,000

External Degradability : 1/10,000, (1/30,000 Non approval)

Approvals NTEP COC# 11-026
Loadcell Input  voltage DC 5V
Loadcell connection 8 @ 350 ohm / 16 @ 1000 ohm
Zero Calibration 0~2 mV/V
Input Sensitivity Over 2.0μV/D (OIML,NTEP), 0.5 μV/D(Non approval)
Digits 6 digits (weight)
Display 6 Segment 1 inch / 25 mm LED

3-color weight distinguishing  LED (CI-200SC)

Display Designators ZERO, TARE, GROSS, NET, STABLE, UNIT
A/D Conversion speed 80 times/sec
Water Proof Grade IP67
Load Cell Single Point OIML Load cell
Keys 10 numeric keys, 2 function keys
Functions Unit Conversion, Hold, Accumulation, TARE, Net, Gross, Zero, Check Weight Auto Calibration, Time and date, Auto Zero, livestock stabilization, Illumination Level, Auto off, ID capabilities,
Interface RS-232C
Operating Temp -10°C ~ 40°C / 14°F ~ 104°F
Power DC 12V , AC 100~240 V adaptor, 6V battery
Battery Life Time Approx. 26 hours
Battery charging time Approx. Approx. 12 hours
Platter Size (CM) 45×60 45×60
Product Weight (approx.) 20 kg 20 kg
Warranty 1 Year

ACCESSORIES

  • External Printer
  • Software
  • Test Weights

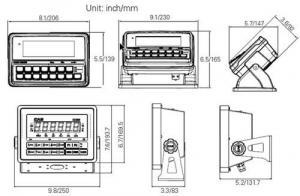

DIMENSIONAL DETAILS

CAS CI200SC WaterproofPlatform Bench Scale dimensions
