Zemic HM9B Double Ended Shear Beam Load Cell
Zemic HM9B Double Ended Shear Beam Load Cell

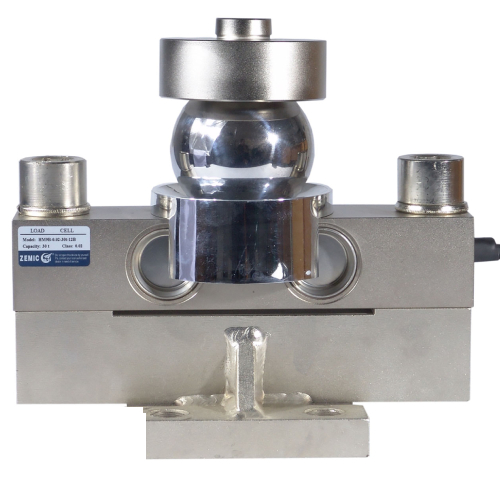

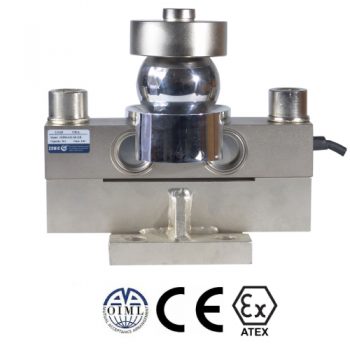

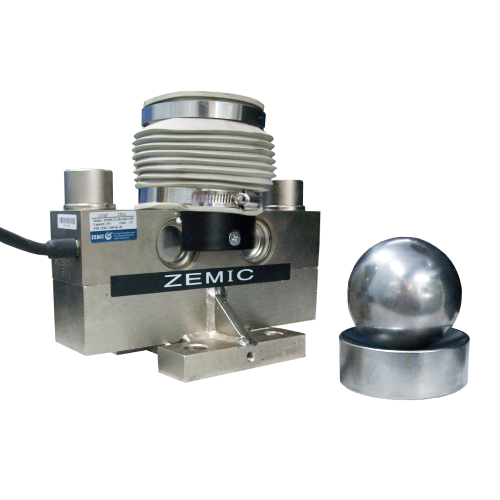

Zemic Double Ended Shear Beam Vehicle Scale Load Cell made with Alloy steel construction, nickel plated, hermetically welded, oil-proof, waterproof and anti-corrosive gas and medium making. It is suitable for all kinds of environments.
- Nickel plated alloy steel IP68 dual shear beam load cell
- High Accuracy
- Suitable for truck, any vehicle, hopper and other electronic weighing devices
- Current calibrated (sc-option)
ADD TO CART to buy or to Request for Quotation (RFQ)
DESCRIPTION
SPECIFICATIONS
| Accuracy class | OIML R60 C3 | ||||
| Output sensitivity ( = FS ) | mV/V | 2.0 ± 0.002 | |||
| Maximum capacity ( Emax ) | t | 10, 20, 25 | 30, 40SE, 40, 50 | ||
| Max. number of load cell intervals | nLC | 3000 | |||
| Ratio of min. LC verification interval | Y = Emax / vmin | 15000 | 7500 | ||
| Combined Error | %FS | ≤± 0.0230 | |||
| Minimum dead load | Of Emax | 0% | |||
| Safe overload | of Emax | 150 % | |||
| Ultimate overload | of Emax | 300 % | |||
| Zero balance | of FS | < ± 1.5 % | |||
| Excitation, recommended voltage | V | 5 ~ 12 | |||
| Excitation maximum | V | 18 | |||
| Input resistance | Ω | 700 ± 7 | |||
| Output resistance | Ω | 700 ± 7 | |||
| Insulation resistance | MΩ | ≥5000 ( at 50VDC ) | |||
| Compensated temperature | °C | -10 ~+40 | |||
| Operating temperature | °C | -35 ~ +65 | |||
| Storage temperature | °C | -40 ~ +90 | |||
| Element material | Nickel plated alloy steel | ||||
| Ingress Protection (acc. to EN 60529) | IP68 | ||||
| ATEX classification (optional) | II1G Ex ia II1C T4 | II1D Ex iaD 20 T73°C | II3G nL IIC T4 | ||

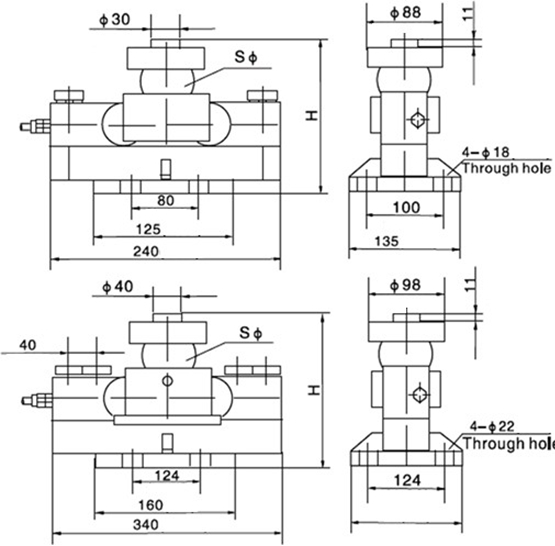

DIMENSIONAL DETAILS
| Dimension
Capacity |
H | ØS |
| 20t-40tSE | 225 | 76 |
| 40t, 50t | 267 | 82 |
