S-type load cells derive their name from their shape which, of course, is the shape of the letter “S”. The S type beam is normally used in tensions applications. They are primarily used for mechanical-to-electronic scale conversions and specific weighing applications like cranes, big bags etc.
Features:
- Nickel plated alloy steel IP67 S type load cell
- Tension and compression applications.
- Suitable for hanging, hopper and other weighing devices.
- Also available in imperial capacities and dimensions.
The S Beam Load Cell is one of the most popular types of load cells. It was originally designed for in-line applications to convert mechanical scale to digital by replacing the spring or other in-line hardware. The S Beam Load Cell is available in variety of load ranges with both English & Metric threads. It is very popular due to its high precision, low price, and ease of installation. But since S Beam Load Cells are strictly designed for in-line applications they are very sensitive to extraneous load, torque, and moments. Off center loading must be avoided for the best performance & longer service life. Please refer to the pancake type load cell for applications requiring off center loading or extraneous load, moment and torque capabilities.

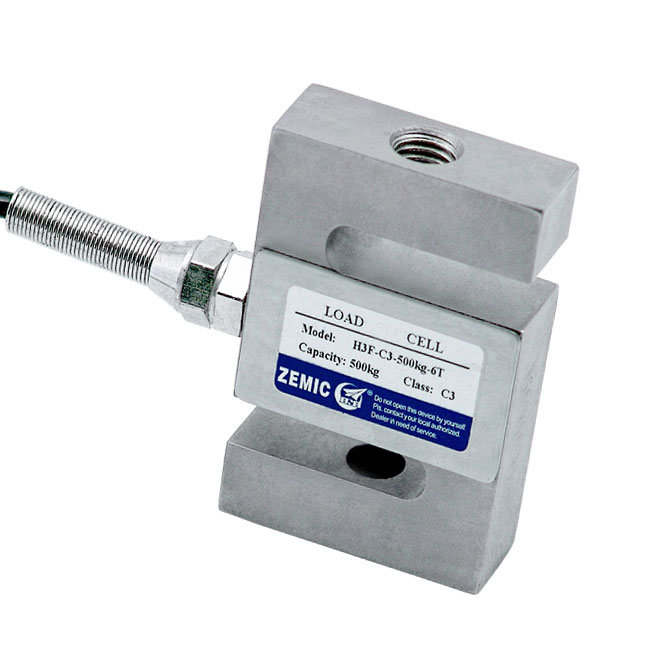

Zemic H3F S-Type High Precision Load Cell (tension or compression) Suitable for hanging, hopper and other weighing devices..
- Nickel plated alloy steel IP67 “S” type load cell.
- Tension and compression applications.
- Suitable for hanging, hopper and other weighing devices.
- Also available in imperial capacities and dimensions.

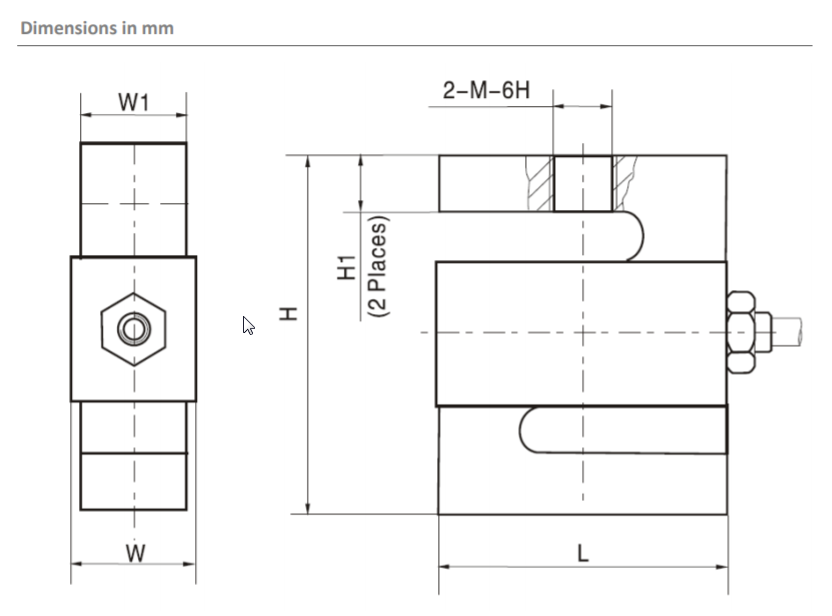

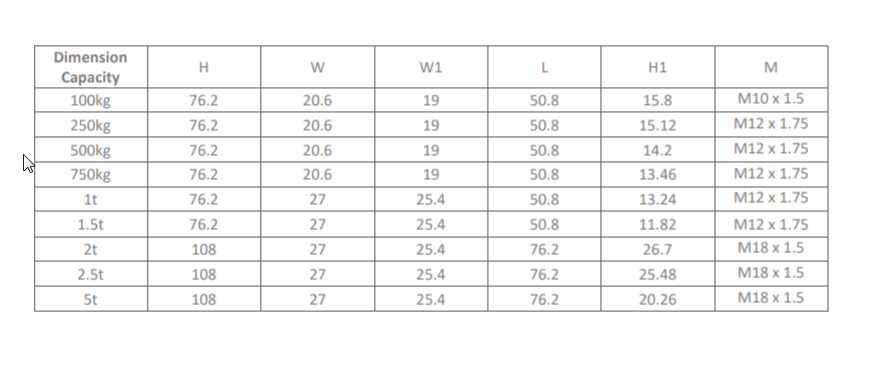

| Accuracy class | C3 | |||
| Output sensitivity ( = FS ) | mV/V | 3.0 ± 0.008 | ||
| Maximum capacity ( Emax ) | t | 0.1, 0.25, 0.5, 0.75, 1, 1.5, 2, 2.5, 5 | ||
| Max.number of load cell intervals | nLC | 3000 | ||
| Ratio of min. LC verification interval | Y = Emax / vmin | 10000 | ||
| Combined Error | %FS | ≤± 0.020 | ||
| Minimum dead load | Of Emax | 0% | ||
| Safe overload | of Emax | 150 % | ||
| Ultimate overload | of Emax | 300 % | ||
| Zero balance | of FS | < ± 1.0 % | ||
| Excitation, recommended voltage | V | 5 ~ 12 | ||
| Excitation maximum | V | 18 | ||
| Input resistance | Ω | 350 ± 3.5 | ||
| Output resistance | Ω | 351 ± 2.0 | ||
| Insulation resistance | MΩ | ≥5000 ( at 50VDC ) | ||
| Compensated temperature | °C | -10 ~+40 | ||
| Operating temperature | °C | -35 ~ +65 | ||
| Storage temperature | °C | -40 ~ +70 | ||
| Element material | Nickel plated alloy steel | |||
| Ingress Protection (acc. to EN 60529) | IP67 | |||
| Recommended torque on fixation | Nm | M10: 50 M12:75 M18: 300 | ||
| ATEX classification (optional) | II1G Ex ia II1C T4 | II1D Ex iaD 20 T73°C | II3G nL IIC T4 | |
