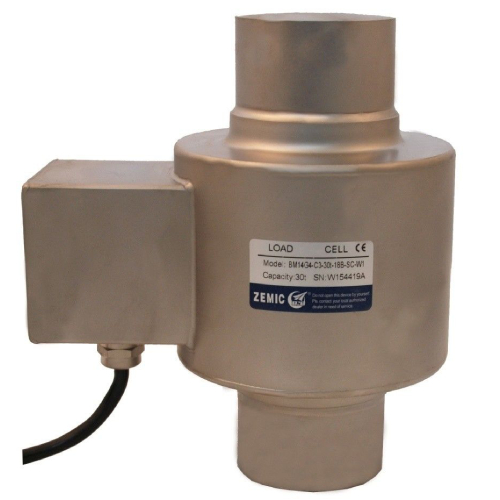

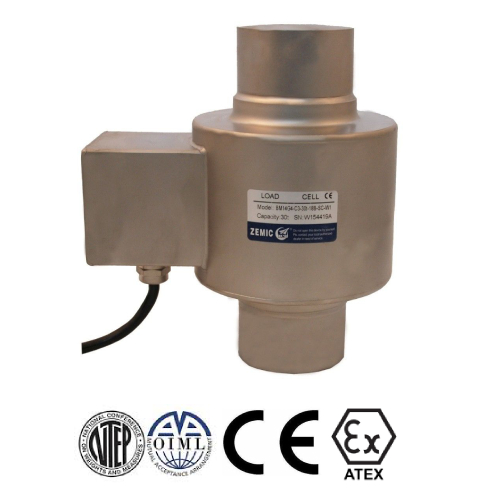

Zemic BM14G4 Compression Load Cell
Zemic BM14G4 Compression Load Cell
The compression load cell is particularly suitable for implementation in container, hopper and vehicle scales etc. The BM14G4 load cells can be used in a wide variety of applications. It will be mainly used in the transport sectors, due to its robust construction and because this load cell is highly suitable to be used in harsh environments.
- Stainless steel IP68 Compression Load Cell.
- Hermetically sealed.
- Suitable for vehicle and hopper scales and vehicle testing facilities.
- Built in surge arrestors.
- High accuracy.
- Current calibrated (sc-option).
ADD TO CART to buy or to Request for Quotation (RFQ)
DESCRIPTION
- Stainless steel IP68 Compression Load Cell.
- Hermetically sealed.
- Suitable for vehicle and hopper scales and vehicle testing facilities.
- Built in surge arrestors.
- High accuracy.
- Current calibrated (sc-option).
SPECIFICATIONS
| Accuracy class | OIML R60 C3 | OIML R60 C4 | |||
| Output sensitivity ( = FS ) | mV/V | 2.0 ± 0.02 | |||
| Maximum capacity ( Emax ) | t | 10, 20, 30, 40, 50 | |||
| Max. number of load cell intervals | nLC | 3000 | 4000 | ||
| Ratio of min. LC verification interval | Y = Emax / vmin | 8800 | |||
| Combined Error | %FS | ≤± 0.0230 | ≤± 0.0175 | ||
| Minimum dead load | Of Emax | 0% | |||
| Safe overload | of Emax | 150 % | |||
| Ultimate overload | of Emax | 300 % | |||
| Zero balance | of FS | < ± 1.0 % | |||
| Excitation, recommended voltage | V | 5 ~ 12 | |||
| Excitation maximum | V | 18 | |||
| Input resistance | Ω | 700 ± 7 | |||
| Output resistance | Ω | 700 ± 7 | |||
| Insulation resistance | MΩ | ≥5000 ( at 50VDC ) | |||
| Compensated temperature | °C | -10 ~+40 | |||
| Operating temperature | °C | -35 ~ +65 | |||
| Storage temperature | °C | -40 ~ +70 | |||
| Element material | Stainless steel | ||||
| Ingress Protection (acc. to EN 60529) | IP68 | ||||
| Recommended torque on fixation | Nm | – | |||
| ATEX classification (optional) | II1G Ex ia II1C T4 | II1D Ex iaD 20 T73°C | II3G nL IIC T4 | ||

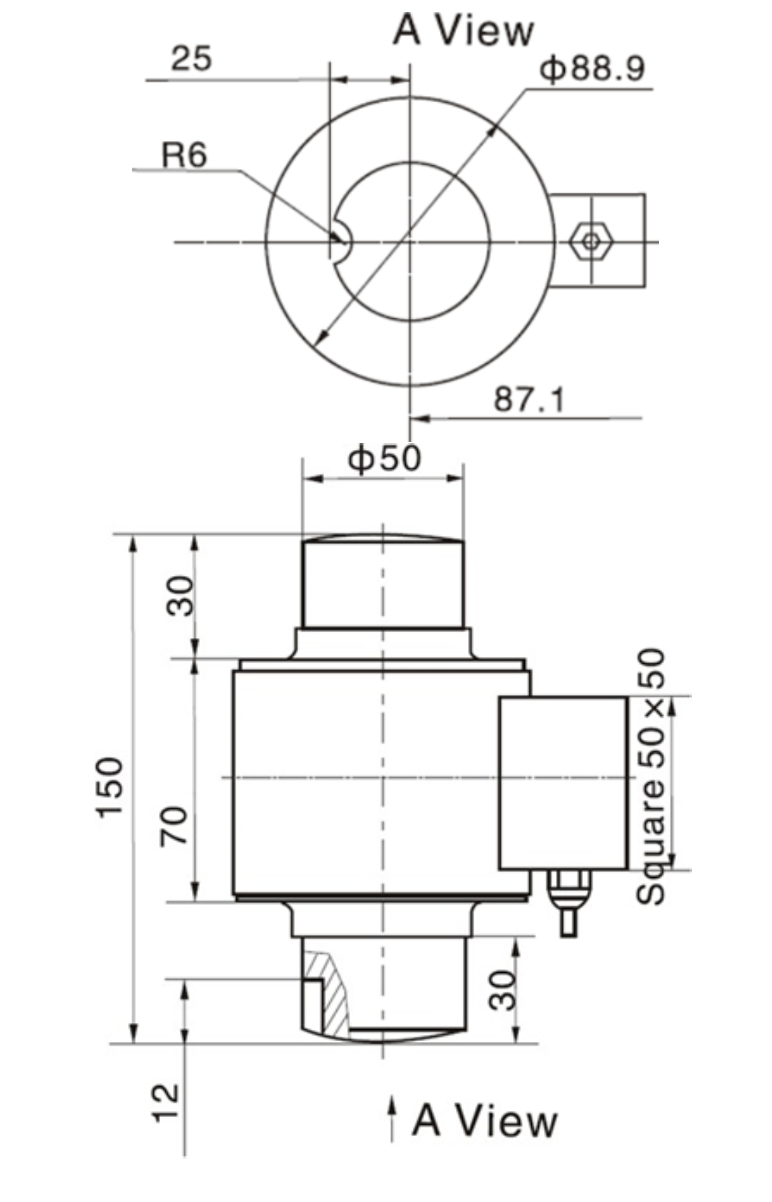

DIMENSIONAL DETAILS
