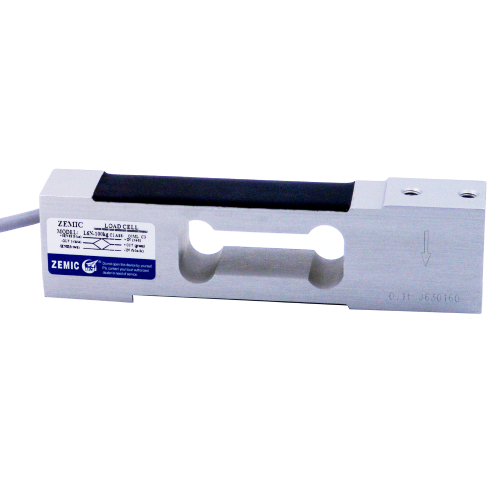

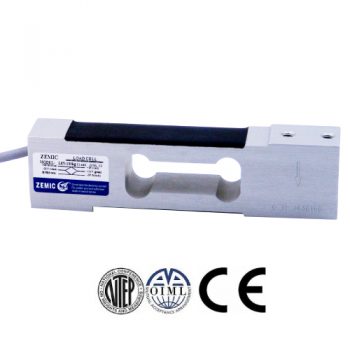

L6N aluminium single point load cell

L6N aluminium single point load cell

The ZEMIC L6N is an Aluminium-alloy IP65 Single-Point Load Cell. It is ideal for platform and other electrical weighing devices. This ZEMIC L6N load cell is colorless anodized and made of an aluminum alloy. Offering a wide range of capacities, this load cell also has a cable length of 10 ft.

  • Aluminium-alloy IP65 single point load cell.
  • Colourless anodized.
  • Suitable for single or double load cell structured platform scales, medcial scales.
  • Maximum platform size: 350 x 400 mm.

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

United Arab Emirates +971
0 / 180

Cart

DESCRIPTION

Zemic’s L6N anodised aluminium alloy constructed IP65 single point load cell. Class C3 & C4 OIML R60 Approved, for total protection from ingress of dust. It offers Class 3 and 4 OIML R60 approvals for unrivalled protection against dust build-up. Ideally suitable for electronic weighing equipment like pricing scales, bench scales, compact scales and small platforms. Constructed from IP65-rated anoidised aluminium, this load cell is ideally suited to low-profile weighing equipment incluidng retail scales, bench scales, compact scales and small platforms. Supplied with 3m (6 core screened cable) length, more than enough for local connection to indicator.

SPECIFICATIONS



Accuracy class OIML R60 C3 OIML R60 C4
Output sensitivity ( = FS ) mV/V 2.0 ± 0.2
Maximum capacity ( Emax ) kg 3, 5, 8, 10, 15, 20, 30, 50,

75, 100

15, 20, 30, 50, 75
Max.number of load cell intervals nLC 3000 4000
Ratio of min. LC verification interval Y = Emax / vmin 12000 20000
Combined Error %FS ≤± 0.0230 ≤± 0.0175
Minimum dead load Of Emax 0%
Safe overload of Emax 150 %
Ultimate overload of Emax 300 %
Zero balance of FS < ± 2.0 %
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Input resistance Ω 409 ± 6
Output resistance Ω 350 ± 3
Insulation resistance ≥5000 ( at 50VDC )
Compensated temperature °C -10 ~+40
Operating temperature °C -35 ~ +65
Storage temperature °C -40 ~ +70
Element material Aluminium
Ingress Protection (acc. to EN 60529) IP65
Recommended torque on fixation Nm M6: 10
