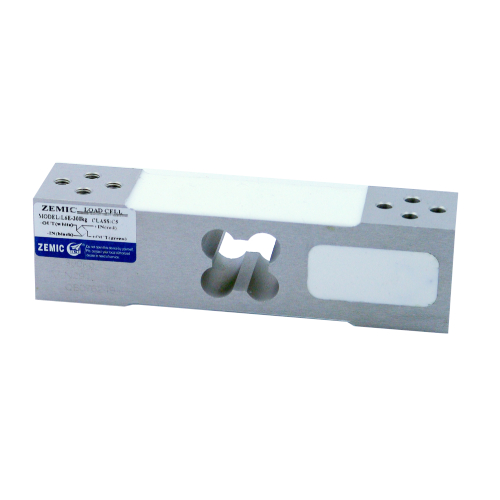

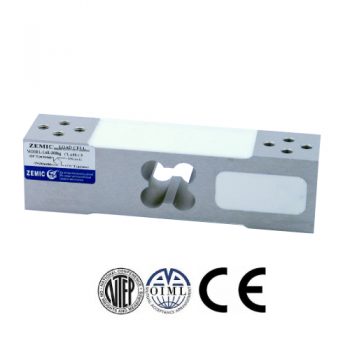

L6E aluminium single point load cell

L6E aluminium single point load cell

L6E is a ZEMIC L6E single point load cell, Aluminium-alloy IP65, Colourless anodized, Suitable for pricing scales, counting scales, bench scales, medical scales, etc.

  • L6E load cells are available in the capacities 50kg to 300kg.
  • Aluminum construction with parallel beam.
  • Silicon adhesive sealed, surface anodized and anti-corrosion.
  • Intergral structure and easy installation.
  • Suitable for pricing scales, platform scales and other electronic weighing devices.
  • High accuracy.
  • Max. platform size: 400x400mm.
  • With OIML approval.

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

United Arab Emirates +971
0 / 180

Cart

DESCRIPTION

L6E is a Anodised aluminium constructed IP65 Single Point Load Cell. Ideally suitable for electronic weighing equipment like small L6E is a Anodised aluminium constructed IP65 Single Point Load Cell. Ideally suitable for electronic weighing equipment like small platform scales, pricing scales and double load cell constructed platform scales.  platform scales, pricing scales and double load cell constructed platform scales.

SPECIFICATIONS

Accuracy class OIML R60 C3 OIML R60 C4 OIML R60 C5
Output sensitivity ( = FS ) mV/V 2.0 ± 0.2


Maximum capacity ( Emax )



kg

50, 60, 80, 100,

150, 200, 300,

500

50, 60, 80, 100,

150, 200, 300,

500

50, 60, 80, 100,

150, 200, 300,

500

Max. number of load cell intervals nLC 3000 4000 5000
Ratio of min. LC verification interval Y = Emax / 10000 15000 20000
Combined Error %FS ≤± 0.0230 ≤± 0.0175 ≤± 0.0140
Creep %FS/30 min ≤± 0.0167 ≤± 0.0125 ≤± 0.01
Temperature effect on zero %FS/10°C ≤± 0.02 ≤± 0.012 ≤± 0.009
Temperature effect on sensitivity %FS/10°C ≤± 0.0175 ≤± 0.0131 ≤± 0.01
Corner Error ≤ 0.02% load value / 100 mm
Minimum dead load Of Emax 0%
Safe overload of Emax 150 %
Ultimate overload of Emax 300 %
Zero balance of FS < ± 2.0 %
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Input resistance Ω 406 ± 6
Output resistance Ω 350 ± 3
Insulation resistance ≥5000 ( at 50VDC )
Compensated temperature °C -10 ~+40
Operating temperature °C -35 ~ +65
Storage temperature °C -40 ~ +70
Element material Aluminium
Ingress Protection (acc. to EN 60529) IP65
Recommended torque on fixation bolts Nm M6:20

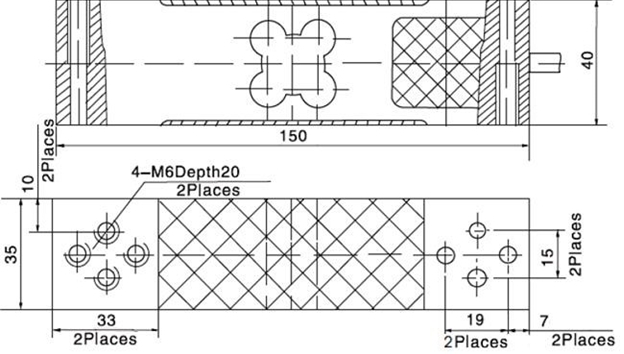

DIMENSIONAL DETAILS
