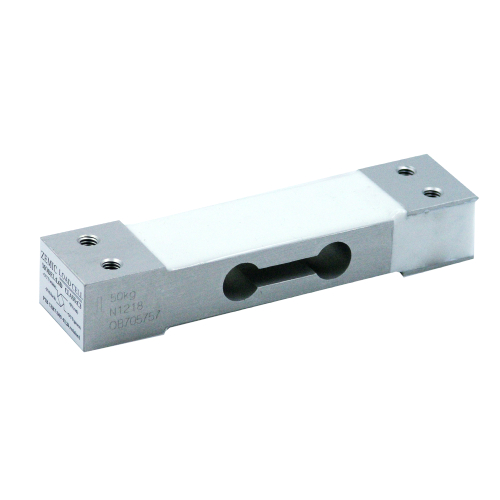

L6D aluminium single point load cell

L6D aluminium single point load cell

The ZEMIC L6D Single-Point Load Cell is ideal for pricing scales, counting scales, bench scales, and other electrical weighing devices. This ZEMIC L6D load cell is colorless anodized and made of an aluminum alloy. Offering a wide range of capacities, this load cell also has a cable length of 10 ft.

  • L6D load cells are available in the capacities 2.5kg to 50kg.
  • Aluminum construction with parallel beam.
  • Silicon adhesive sealed, surface anodized and anti-corrosion.
  • Intergral structure and easy installation.
  • Suitable for pricing scale, platform scale and other electronic weighing devices.

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

United Arab Emirates +971
0 / 180

Cart

DESCRIPTION

Zemic’s L6D IP65 rated single point load cell is constructed from a lightweight aluminium alloy with OIML R60 approval for advanced protection from ingress of dust. This model is suitable for electronic weighing equipment like small platform scales and double load cell constructed platform scales. Supplied with 0.4m (4 core screened cable) length, more than enough for local connection to indicator.

SPECIFICATIONS



Accuracy class C3 OIML R60 C3 OIML R60 C4 OIML R60 C5
Output sensitivity ( = FS ) mV/V 1.8 ± 0.2 2.0 ± 0.2
Maximum capacity ( Emax ) kg 2.5 3, 5, 6, 8, 10, 15, 20, 30, 35, 40, 50
Max. number of load cell intervals nLC 3000 3000 4000 5000
Ratio of min. LC verification interval Y = Emax / 7000 10000 15000 20000
Combined Error %FS ≤± 0.0230 ≤± 0.0175 ≤± 0.0140
Minimum dead load Of Emax 0%
Safe overload of Emax 150 %
Ultimate overload of Emax 300 %
Zero balance of FS < ± 2.0 %
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Input resistance Ω 409 ± 6
Output resistance Ω 350 ± 3
Insulation resistance ≥5000 ( at 50VDC )
Compensated temperature °C -10…+40
Operating temperature °C -35…+65
Storage temperature °C -40…+70
Element material Aluminium
Ingress Protection (acc. to EN 60529) IP65
Recommended torque on fixation bolts Nm < 30kg: 6                     >30kg: 10





DIMENSIONAL DETAILS
