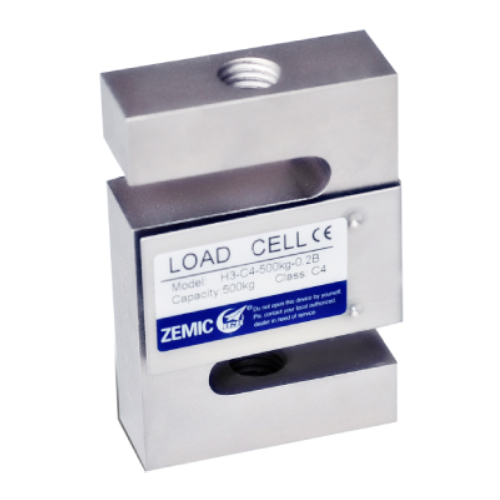

H3 nickel plated alloy steel S-type load cell

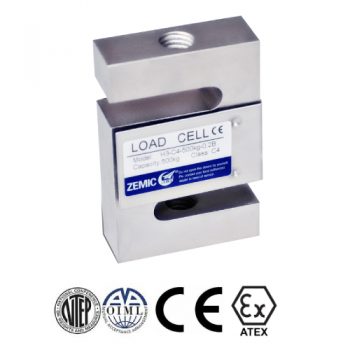

H3 nickel plated alloy steel S-type load cell

S-type load cells derive their name from their shape which, of course, is the shape of the letter “S”. The S type beam is normally used in tensions applications. They are primarily used for mechanical-to-electronic scale conversions and specific weighing applications like cranes, big bags etc. This model is providing wide range from 25 kg to 30 ton.

  • Nickel plated alloy steel IP67 “S” type load cell.
  • Tension and compression applications.
  • Also available in imperial capacities and dimensions.
  • Suitable for hanging, hopper and other weighing devices.
  • OIML approved.
  • NTEP Certificate no. 06-099A1
  • ATEX Optional

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

United Arab Emirates +971
0 / 180

Cart

DESCRIPTION

The S Beam Load Cell is one of the most popular types of load cells. It was originally designed for in-line applications to convert mechanical scale to digital by replacing the spring or other in-line hardware. The S Beam Load Cell is available in variety of load ranges with both English & Metric threads. It is very popular due to its high precision, low price, and ease of installation. But since S Beam Load Cells are strictly designed for in-line applications they are very sensitive to extraneous load, torque, and moments. Off center loading must be avoided for the best performance & longer service life. Please refer to the pancake type load cell for applications requiring off center loading or extraneous load, moment and torque capabilities.

SPECIFICATIONS



Accuracy class OIML R60 C3 OIML R60 C4 C3
Output sensitivity ( = FS ) mV/V 2.0 ± 0.004


Maximum capacity ( Emax )



t

0.1, 0.15, 0.2, 0.25, 0.3, 0.5, 0.6,

0.75, 1, 1.5, 2, 2.5

0.025, 0.05, 3.0,

5.0, 7.5, 10, 15,

20, 30

Max. number of load cell intervals nLC 3000 4000 3000
Ratio of min. LC verification interval Y = Emax / vmin 10000 20000 10000
Combined Error %FS ≤± 0.020 ≤± 0.018 ≤± 0.020
Minimum dead load of Emax 0%
Safe overload of Emax 150 %
Ultimate overload of Emax 300 %
Zero balance of FS < ± 1.5 %
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Input resistance Ω 350 ± 3.5
Output resistance Ω 351 ± 2.0
Insulation resistance ≥5000 ( at 50VDC )
Compensated temperature °C -10 ~+40
Operating temperature °C -35 ~ +65
Storage temperature °C -40 ~ +70
Element material Nickel plated alloy steel
Ingress Protection (acc. to EN 60529) IP67
Recommended torque on fixation Nm M8:25 M10: 50 M12:75 M20:450 M33:750 M42:1450
ATEX classification (optional) II1G Ex ia II1C T4 II1D Ex iaD 20 T73°C II3G nL IIC T4
