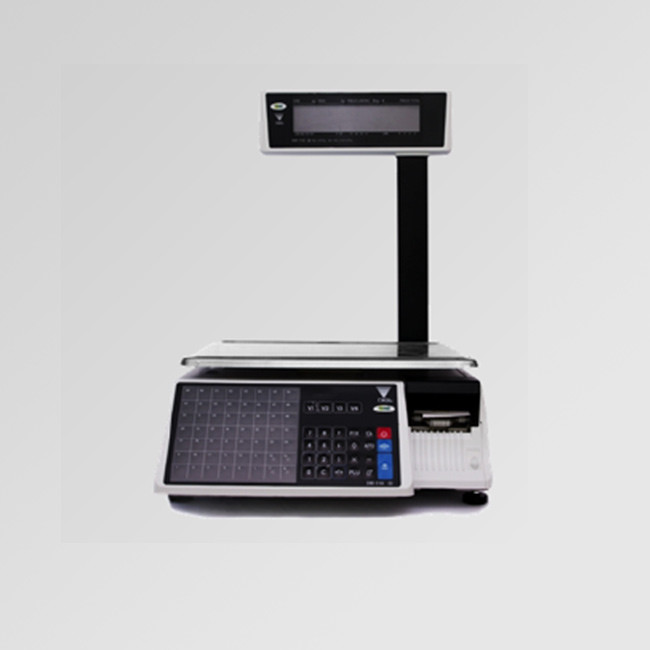

DIGI SM 110+ Label Printing Scale

DIGI SM 110+ Label Printing Scale

SM 110 P is a Versatile Scale Printer for Store Operations. Weigh quickly, print rapidly to increase throughput. SM-110 series designed to meet the weighing needs of any retail store. This Series provides the best value for your store’s operation.

Features:

  • Label Printing Scale
  • Body Structure: ABS scale body with stainless steel tray
  • Platter Size: 386 X 270 mm
  • Display: Alphanumeric, Green backlight LCD
  • Interface : TCP/IP, RS232 & Cash Drawer
  • Print Type: Thermal Printer
  • Printing Speed: 80mm/sec
  • AC 110-240v with rechargeable battery
  • Over Load Protection

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

United Arab Emirates +971
0 / 180

Cart

DESCRIPTION

RELIABLE PRINTING MECHANISM Changing the thermal paper roll is easy through the large opening in the scale housing which enables quick loading of the label or receipt roll. This access ensures easy handling of rolls and maintenance at the store level, reducing waste, error and costs. POWERFUL COMMUNICATION CAPABILITIES STANDARD Through the standard Ethernet or RS-232 interface, inter-scale and store controller communication is readily available. With the Wireless LAN network interface, scale installation locations can quickly change without added costs. (Wireless network card is optional.) Quick weight stabilization and fast label / receipt printing allows the operator to serve more customers and increase volume of the operation. Barcode Scanner can also be connected to enhance the operation. Nutritional facts and traceability information can be easily designed and printed for better customer service.
  • Label Printing Scale
  • Available Capacities: 30 Kg
  • Fully System scale
  • Ethernet communication
  • Pole type display
  • Displays the product name permanently.
  • Quick Response to The Weight Change
  • Ethernet interface for data updating (WLAN optional )
  • Communications: LAN, RS-232
  • Optional: Wireless – Wi-Fi
  • 60mm printing width
  • 100mm/sec printing speed
  • Printed info on bar code label: Price/kg, Mass, Price total amount, Pack date and/or Sell by date, Product Description, Shop name, 13 Digit EAN barcode
  • 8000 PLU Memory (MAX)
  • 56 Preset Keys (Pole Version) / 32 Preset Keys (Bench Version)
  • Easy & quick loading of receipt or label
  • Direct thermal/high speed thermal printer
  • Built-in real time clock
  • NRCS (SABS) Approved.
  • Standard non-bar code Label

SPECIFICATIONS

Model SM 110 P
Capacity x Readability 30 Kg

10 gm

Class III
Resolution 1/3,000 (dual range)
Preset Keys 56
Digits Tare:4 digit, Weight:5 digit, Unit Price:6 digit, Total:7 digit
Display & Size Dot Martrix 25 digits segments LCD
Weight Units Kg, Lb
Memory 1 M Standard, 2 M Optional
Printing PAPER WIDTH: Max 60mm(Label),60mm(Receipt)

Speed:80mm/sec(Label), 105mm/sec(Receipt)

Label Size:Max 60(W) X 220(L)mm

Interface RS232C,Cash drawer,ETH ERNET WLAN IEEE 802.11b(Optional)
Adaptor AC 100/110/220/230/240 Volts(50/60H z)(Factory Optional)
Operating Humidity 15% ~ 85% RH.
Operating Temperature -10˚C ~ 40˚C
Dimensions (mm) 383.4 X 419.3 X 552.6 Platter Size : 359(W) x 277(D) mm.
Product Weight (approx.) 10.5 Kg
Warranty 1 Year

ACCESSORIES

  • Wi-fi Modules for Wireless

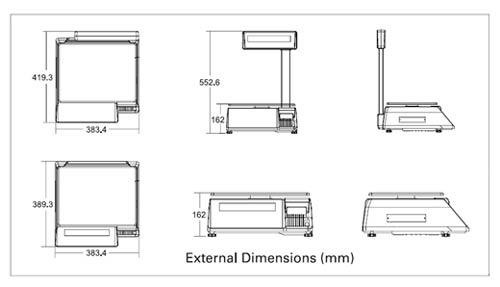

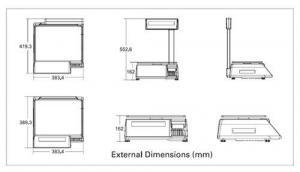

DIMENSIONAL DETAILS

Digi sm 110 Label Printing Scale dimensions
