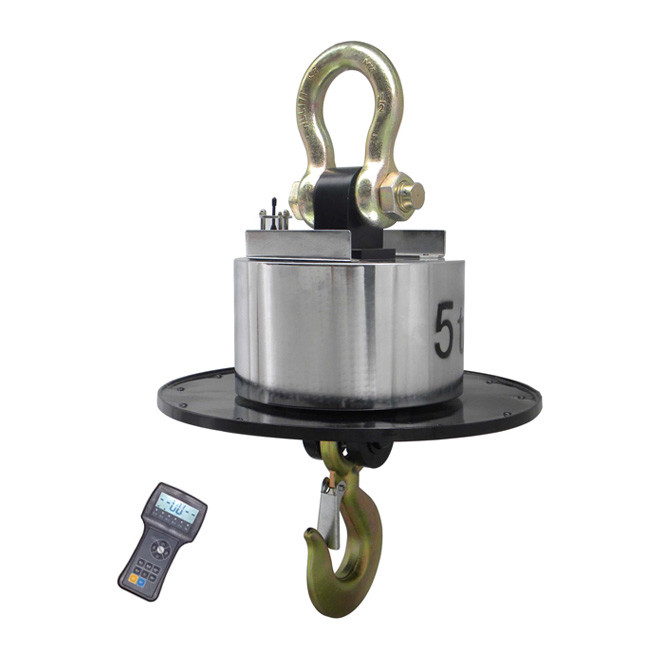

SENS OCS SWH2 Heavy Duty Wireless High Temperature Proof Crane Scale

SENS OCS SWH2 Heavy Duty Wireless High Temperature Proof Crane Scale

The OCS SWH2 is manufactured with special and advance features to handle all type of requirements for high temperature heat resistance scale which can be used in industries which will be having high temperature.

Features:

  • Wireless proof high-temperature crane scale
  • Body Structure: Steel housing
  • American Standard shackle and 360 degrees’ swivel hook
  • Wireless hand held indicator with LCD Display
  • Units: Kg/ Lb.
  • Used under high temperature environment. Especially in casting industry.
  • Functions: Gross/Net, zero, date/time display, data memory and print, statistic, search, overload warning, lifter, low battery warning and power-saving function
  • Power: 6V/4Ah rechargeable NI-H Battery, DC 4.8 V / 2.8 Ah rechargeable battery
  • Over Load Protection with alarm

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION


Cart

DESCRIPTION

The Heavy duty crane scale is an extremely well-built instrument for industry use, as a standard wireless tool offer universal applications, whether used as conventional crane weigher or to measure force in high temperature environment.
  • Steel plate with heat-resistant material inside.
  • Seamless steel pipe enclosure for maximum protection.
  • Menu operation mode, calibration, saving, searching, peak hold, easy to operate
  • Indicator Adopts I: -.0. A/D conversion technology.
  • Weighing data save protection in case of power off.
  • Battery charger with several protection modes to extend life of rechargeable battery.
  • Standard RS232 communication interface(optional).
  • Portable design, indicator packed in portable carry case, easy to operate outdoor.
  • Gathering up to data records of 99 weighing, records can be sorted, searched.
  • Power saving mode, indicator will turn off automatically after 30minutes with no operation.
  • With 32 channels optional, so 32 crane scales can operate independently in the same air place without interface.
  • Special design: Used under high temperature environment. Especially in casting industry.
  • Multi-function: Gross/Net, zero, date/time display, data memory and print, statistic, search, overload warning, lifter, low battery warning and power-saving function.
  • User-friendly design: LCD with backlight, Steel housing scale body, high-tension hook and shackle, Ni-H battery to protect environment.

SPECIFICATIONS

Model OCS-SWH2-5 OCS-SWH2-10 OCS-SWH2-15 OCS-SWH2-20 OCS-SWH2-30 OCS-SWH2-50
Capacity x Readability 5000 Kg

2 Kg

10,000 Kg

5 Kg

15,000 Kg

5Kg

20,000Kg

10 Kg

30,000 Kg

10 Kg

50,000 Kg

10 Kg

Accuracy Standard According to OIML class Ill
Filtering Low, Medium or High selectable
Units Kilograms or Pounds selectable
Resolution 2000 to 3000 divisions standard up to 15,000 available
Display & Size LCD With Back Light
Tare Range 100% F.S.
Manual Zero Auto/Manual setting, from 4% to 100%F.’S.
Reading Stable Time ≤10 seconds
Overload 100% F.S. + 9e
Max. Safety Load 125% F.S.
Ultimate Load 700% F.S.
Functions Gross/Net, zero, date/time display, data memory and print, statistic, search, overload warning, lifter, low battery warning and power-saving function
Radio Frequency 433MHz
Operating Temp – 20 °C ~ + 50 °C
Operating Humidity ≤85% RH under 20℃
Adapter Input:AC100-240V 50/60Hz Output:850mA
Battery Type DC 6V/4Ah rechargeable Ni-H battery
Hand held display battery DC 4.8V/2.8Ah rechargeable Ni-H battery
Battery Life >50 hours
Wireless Distance Up to 200m without obstacle
Product Weight (approx.) 62 Kg N.W

30 Kg G.W

87 Kg N.W

45 Kg G.W

100 Kg N.W 130 Kg N.W 210 Kg N.W 575 Kg N.W
Warranty 1 Year

ACCESSORIES

  • Wireless Display Remote Control
  • Battery

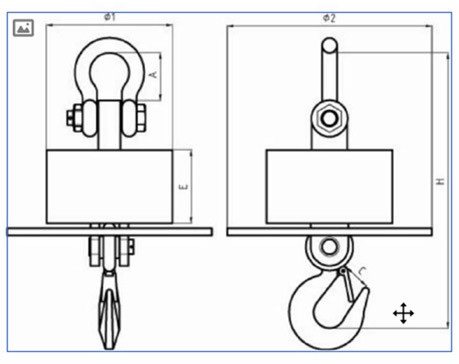

DIMENSIONAL DETAILS

SENS OCS SWH2 High Temperature Proof Crane Scale dimensions
