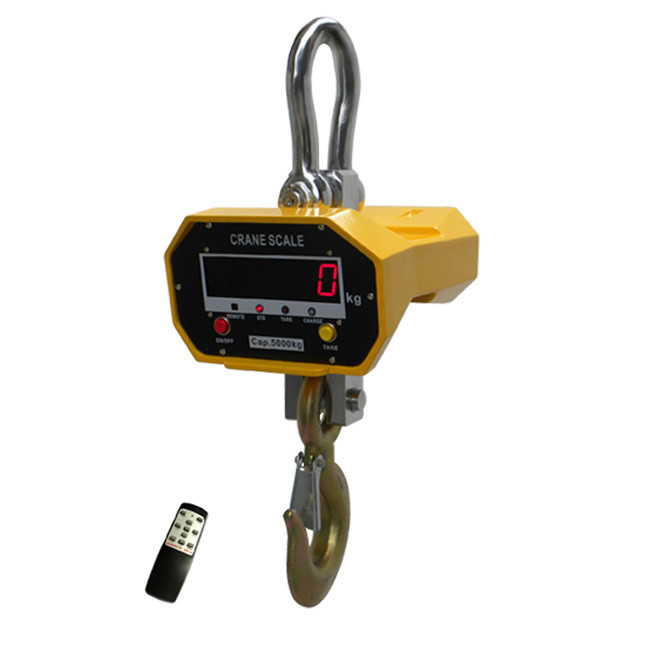

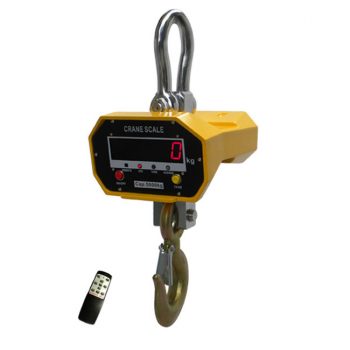

The OCS SL Crane scale is manufactured with special and advance features to handle all type of requirements for heavy industrial usage.
Features:
- Heavy Duty Crane scale.
- Body Structure: Heavy Duty Case
- Display: 30mm LED display
- Infrared Remote Control
- Units: Kg/ Lb. / N
- Resolution (Division) switch
- Functions: Units Conversion, Hold, TARE, Zero, Total Accumulation, Calibration, Auto Zero, Auto Power off, anti-motion, illumination level, Gross & Net weight
- Power: AC/DC with Rechargeable battery
- Over Load Protection with alarm
The Heavy duty crane scale is an extremely well-built instrument for industry use, as a standard wireless tool offer universal applications, whether used as conventional crane weighed or to measure force.
OCS SL is microprocessor controlled for high precision accuracy, calibration is easier with wireless handheld indicator.
OCS SL is compatible with the concept of portable, print and easy to operate. Shoulder bag style leather case, easy to carry, suitable for protected outdoor use., calibration is easier with 580 indicators.
- Enclosure: NEMA 12/IP54 powder coated Foundry Cast Aluminum.
- Multi-weighing units: Kg, lb are selectable, kg is default unit.
- Multi-function operation: are, Zero, Auto zero tracking, Total, Hold, Overload warning and record, operated through infrared remote controller.
- User-friendly design: Large red 5 digit LED display.
- Low battery indication, Automatic turn off, power-saving function.
- Accuracy: According to OIML class Ⅲ.
- DISPLAY: 30 mm (1.2″) 5digits LCD/LED.
- Battery: Fully sealed Lead-Acid battery, 6V/7Ah, can reach 70hours continuous working.
- Adapter: DC 9V/1000mA
- Ultimate Load: 400% of capacity.
- Operation temperature: -20℃ to 50℃
- Gravity regulation: The acceleration of gravity can be regulated through wireless indicator according to different places value.

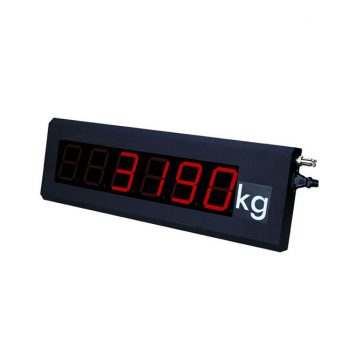

- Multi options: RS-232-continuous or on demand data output, user-selectable Wireless big screen 3″, 5″, wireless handheld indicator 180, 280 380,and 580 can match with the scale, user- selectable.

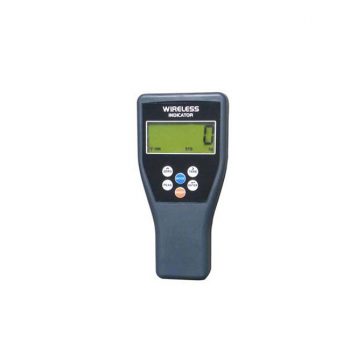

- RF wireless palm indicator. (Optional)

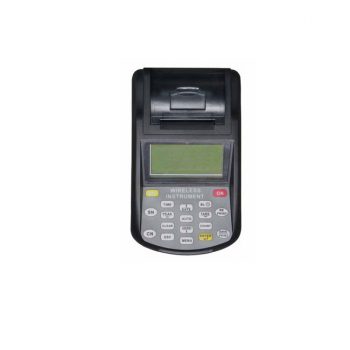

- 580 Indicator communications (Optional): Both RS232 serial port and USB port solve most laptops without serial port problem. with the Everight company’s PC host computer software, not only display weigh value and stable information on the PC, can also enter company’s name, complete storage, print query and other functions
- Antenna: Internal antenna for Wireless indicators and printer
| Model | OCS-SL-5 | OCS-SL-10 | OCS-SL-15 | OCS-SL-20 | |||||
| Capacity x Readability | 5000 Kg
2 Kg |
10,000 Kg
5 Kg |
15,000 Kg
5 Kg |
20,00 Kg
10 Kg |
|||||
| Accuracy Standard | According to OIML class Ill | ||||||||
| Filtering | Low, Medium or High selectable | ||||||||
| Units | Kilograms or Pounds selectable | ||||||||
| Resolution | 2000 to 3000 divisions standard up to 15,000 available | ||||||||
| Digits | 5 Digit | ||||||||
| Display & Size | 30mm (1.2″) LED | ||||||||
| Tare Range | 100% F.S. | ||||||||
| Manual Zero | ±4% F.S. | ||||||||
| Reading Stable Time | ≤10 seconds | ||||||||
| Overload | 100% F.S. 9e | ||||||||
| Max. Safety Load | 125% F.S. | ||||||||
| Ultimate Load | 400% F.S. | ||||||||
| Keys | ON/OFF”,” ZERO”,” PEAK” and” Unit Change” | ||||||||
| Functions | Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation,Calibration, Auto Zero, low battery alert, Illumination Level, Auto off, Programmable Set-Point, gravity acceleration | ||||||||
| Acceleration of Gravity | 9. 793,Can be regulated | ||||||||
| Operating Temp | – 20 °C ~ 50 °C | ||||||||
| Operating Humidity | ≤85% RH under 20℃ | ||||||||
| Adapter | DC9V/1000mA | ||||||||
| Battery Type | Fully sealed Lead-Acid battery, 6V/4.5Ah | ||||||||
| Battery for Remote controller | AAA battery, 1 .5V x 2 | ||||||||
| Hand held display battery | “LR6(AA)”size alkaline batteries. 1.5Vⅹ4 | ||||||||
| Indicator Printer Battery | Rechargeable Ni-H battery, SC 3.5Ah | ||||||||
| Indicator printer | FUJITSU FTP-628 MCL101#50″ high speed thermal printer | ||||||||
| Battery Life | >50 hours | ||||||||
| Remote Control Distance | Min 15 Meter | ||||||||
| Wireless Frequency | 2.4GHz(default),433MHz,860MHz(optional) | ||||||||
| Wireless Distance | Min. 80m(default) [200m(optional)] | ||||||||

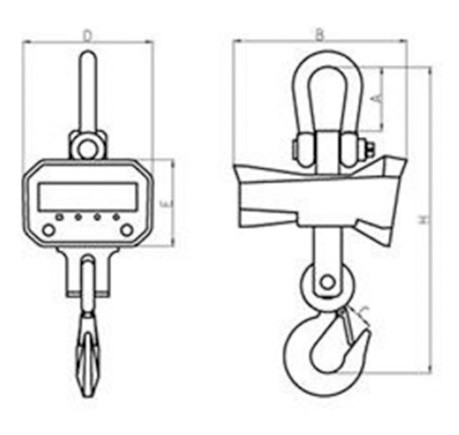

| Dimensions | |||||||||
| Product Weight (approx.) | 17.5 Kg N.W
19 Kg G.W |
27.5 Kg N.W
29 Kg G.W |
49 Kg N.W
57 Kg G.W |
56 Kg N.W
63 Kg G.W |
|||||
| Warranty | 1 Year | ||||||||
