SENS OCS – M Crane Scale
SENS OCS – M Crane Scale
The OCS M series are low cost Crane Scales for: shipping operation, foundries, food processing plants, mining industry, batching operations, offshore operation, moulding industry, test facilities, melting process, etc. Simple and effective Crane Scale. No frills weighing allows for a low price but with high performance.
Features:
- Heavy Duty Crane Scale
- Includes infra-red remote control
- Body Structure: Aluminum die-casting Case with Stainless Steel shackle and American standard rotatable hook
- Available Capacities: 100 to 1000 Kg
- Waterproof panel
- Display: 30 mm LED Display
- High Capacity Rechargeable battery
- Units: Kg/ Lb./ N
- Resolution (Division) switch
- Functions: Units Conversion, Hold, TARE, Zero, Total Accumulation, Calibration, Auto Zero, Auto Power off, anti-motion, illumination level, Gross & Net weight
- Power: AC/DC with Rechargeable battery
- Over Load Protection and alarm
ADD TO CART to buy or to Request for Quotation (RFQ)
DESCRIPTION
- Heavy Duty Crane Scale
- Easy to use
- Great Safety
- Strong Reliability
- Broad Applicability
- Complete function.
- Body Structure: Aluminum die-casting Case with Stainless Steel Shackle and American Standard rotatable hook
- Available Capacities: 100 to 1000 Kg
- Waterproof panel
- Display: 30 mm LED
- High Capacity Rechargeable battery
- Units: Kg/ Lb./ N
- Resolution (Division) switch
- Hold
- TARE
- Zero
- Total Accumulation
- Calibration
- Auto Zero
- Auto Power off
- Anti-motion
- Illumination level
- Gross & Net weight
- Power: AC/DC with Rechargeable battery
- Over Load Protection and alarm
SPECIFICATIONS
| Model | OCS-01-M | OCS-03-M | OCS-05-M | OCS-1-M | |
| Capacity x Readability | 100 Kg
0.05 kg |
300Kg
0.1Kg |
500Kg
0.2Kg |
1000 Kg
0.5 Kg |
|
| Legal for Trade |
Class III Equivalent to OIML R76 |
||||
| Digits | 5 Digit | ||||
| Display & Size | 30 mm LED | ||||
| Tare Range | 100% F.S. | ||||
| Auto Zero | ±20% F.S. | ||||
| Manual Zero | ±4% F.S. | ||||
| Zero‐tracking | 0.5e/s | ||||
| Reading Stable Time | ≤10 seconds | ||||
| Overload | 100% F.S. 9e | ||||
| Max. Safety Load | 120% F.S. | ||||
| Ultimate Load | 400% F.S. | ||||
| Keys | Power, Tare, Zero | ||||
| Functions | Zero Tare In/Tare Out, Hold, Auto Power off Battery
Supervision, Overload Alarm, Unit Switch |
||||
| Operating Temp | – 10 °C ~ 40 °C | ||||
| Operating Humidity | 20℃ ≤90% | ||||
| Battery | 6V/5Ah lead acid battery | ||||
| Adaptor | AC220V or 110V input, DC9V/1500mA output | ||||
| Battery Life | >80 hours | ||||
| Remote Distance | 10 Meter | ||||
| Dimensions | 350 x 225 mm | 370 x 225 mm | |||
| Product Weight (approx.) | 4 Kg | 4.5 Kg | |||
| Warranty | 3 Years | ||||
ACCESSORIES
- Adaptor
- Battery

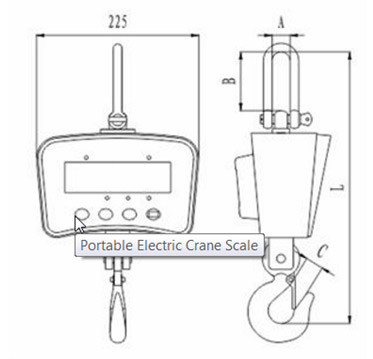

DIMENSIONAL DETAILS
