SENS OCS – L Mini Crane Scale

SENS OCS – L Mini Crane Scale

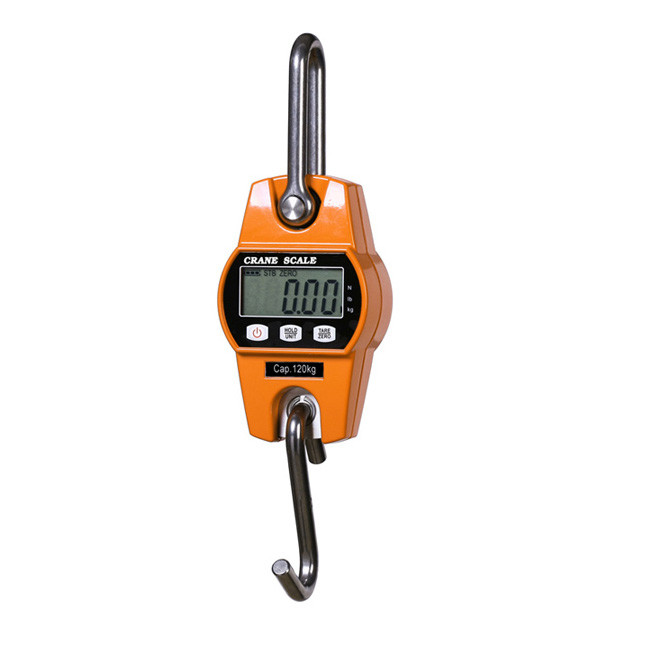

OCS L Crane scale is a combination of the sound and proven mechanical design, with today’s most advanced electronics to provide a superb feature set. It is versatile, reliable, accurate and easy to operate.

Features:

  • Easy to Carry Mini Hanging Crane Scale
  • Body Structure: Aluminum die-casting Case with Stainless Steel hook and Shackle
  • Available Capacities: 50 to 300 Kg
  • Waterproof panel
  • Display: 20mm LCD display with backlight
  • Units: Kg/ Lb./ N
  • Dismountable hook.
  • Functions: Units Conversion, Hold, TARE, Zero, Calibration, Auto Zero, low battery, Auto Power Off
  • 3 AA battery power supply
  • Over Load Protection and alarm

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

United Arab Emirates +971
0 / 180

Cart

DESCRIPTION

The OCS-L is an ultra-lightweight aluminium crane scale with a wide range of capacities – from 30kg to 300kg – and accuracies. This hanging scale is widely used in post offices, freight depots and sorting and collection centres. To help ensure the longevity and accuracy of this scale it is fitted with an overload alarm which will sound when the scale is reaching maximum capacity. The hook and shackle on the OCS-L are constructed of stainless steel to provide strength and durability. To prolong the already impressive battery life the OCS-L comes with an auto-power down function that will shut the scale down after it has been sat idle for a set amount of time. Hold, Tare and Zero features come as standard to help ensure that accurate and reliable weighing results are provided each and every time. SMT technology, quality integrated circuit and dedicated weighing load cell, ensures long time stability.
  • Easy to Carry Mini Hanging Crane Scale
  • Body Structure: Aluminum die-casting Case with Stainless Steel hook and Shackle
  • Available Capacities: 50, 150, 300 Kg
  • Waterproof panel
  • Display: 20mm LCD display with backlight
  • Units: Kg/ Lb./ N
  • Dismountable hook.
  • Units Conversion
  • Hold
  • TARE
  • Zero, Calibration
  • Auto Zero
  • Low battery
  • Auto Power Off
  • 3 AA battery power supply
  • Over Load Protection and alarm

SPECIFICATIONS

Model OCS-005-L OCS-015-L OCS-03-L
Capacity x Readability 50 Kg

0.02 kg

150 Kg

0.05 kg

300 Kg

0.1 kg

Resolution Display : 30, 000, ADC: 2,000,000
Legal for Trade

Class III Equivalent to OIML R76

Digits 6 digits (weight)
Display & Size LCD , 0.7 inch (17.78mm) numerical
Tare Range 100% F.S.
Auto Zero ±50% F.S.
Manual Zero ±2% F.S.
Zerotracking 0.5e/s
Reading Stable Time ≤10 seconds
Autosleep Stable and no action in 3 sec.
Autooff Stable and no action in 3 min.
Overload 100% F.S. 9e
Max. Safety Load 120% F.S.
Ultimate Load 300% F.S.
Keys Power, Hold/unit, Tare/Zero
Functions Zero Tare In/Tare Out, Hold, Auto Power off Battery

Supervision, Overload Alarm, Unit Switch

Operating Temp – 10 °C ~ 40 °C
Operating Humidity ≤90% at 20℃
Power 3*AA  battery
Battery Life >100 hours
Dimensions 3.1 x 12 x 1.8″
Product Weight (approx.) Net Weight : 620 gm
Warranty 3 Years

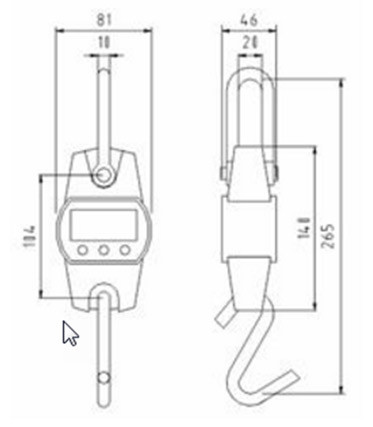

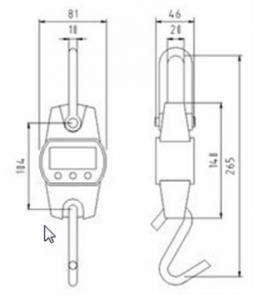

DIMENSIONAL DETAILS

SENS OCS L Mini Crane Scale dimensions
