SENS OCS – K Crane Scale

SENS OCS – K Crane Scale

The new CSC OCS-K crane scale provides the most efficient, simple solution to suspension weighing at an affordable price.

Features:

  • Integrated load receptor
  • Includes infra-red remote control
  • Body Structure: Cast Steel Case with American Standard bow shackle and American standard eye hook
  • Available Capacities: 10,000 Kg
  • Waterproof panel
  • Display: 30 mm LED Display
  • High Capacity Rechargeable battery
  • Units: Kg/ Lb./ N
  • Resolution (Division) switch
  • Functions: Zero, Digital calibration, Tare,3-Point Calibration, Hold, Unit Switch, Battery Supervision, Resolution switch, Overload Alarm / record, Gravity Acceleration Set, Total Accumulation, Auto Zero, Auto Power off, anti-motion, illumination level, Gross & Net weight
  • Power: AC/DC with Rechargeable battery
  • Over Load Protection and alarm

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

United Arab Emirates +971
0 / 180

Cart

DESCRIPTION

The lightweight aluminium shell makes it genuinely portable and with a capacity of 10 Ton it is suitable for a wide variety of applications. The scale has a large bright red LED clearly visible from long distances and benefits from a long life internal 6V/ah rechargeable battery An infer red remote control is supplied as standard, to enable the operator to stand at a safe distance. Hold, tare and zero features come as standard and there is an easy to use digital calibration routine to ensure weighing accuracy. The OCS-K provides a value for money solution for any industry.
  • Heavy Duty Crane Scale
  • Easy to use
  • Great Safety
  • Strong Reliability
  • Broad Applicability
  • Complete function.
  • Includes infrared remote control
  • Body Structure: Cast Steel Case with American Standard bow shackle and American standard eye hook
  • Available Capacities: 10,000 Kg
  • Waterproof panel
  • Display: 30 mm LED Display
  • High Capacity Rechargeable battery
  • Units: Kg/ Lb./ N
  • Resolution (Division) switch
  • Zero
  • Digital calibration
  • Tare
  • 3-Point Calibration
  • Hold
  • Unit Switch
  • Battery Supervision
  • Resolution switch
  • Overload Alarm / record
  • Gravity Acceleration Set
  • Total Accumulation
  • Auto Zero, Auto Power off
  • Anti-motion
  • Illumination level
  • Gross & Net weight
  • Power: AC/DC with Rechargeable battery
  • Over Load Protection and alarm

SPECIFICATIONS

Model OCS-K-10
Capacity x Readability 10,000 Kg

5Kg

Legal for Trade

Class III Equivalent to OIML R76

Digits 5 Digit
Display & Size 30 mm LED
Tare Range 100% F.S.
Auto Zero ±20% F.S.
Manual Zero ±4% F.S.
Zerotracking 0.5e/s
Reading Stable Time ≤10 seconds
Overload 100% F.S. 9e
Max. Safety Load 120% F.S.
Ultimate Load 400% F.S.
Keys Power, Tare, Zero
Functions Zero, Digital calibration, Tare, 3-Point Calibration, Hold, Unit Switch, Battery Supervision, Resolution switch, Overload Alarm / record, Gravity Acceleration Set
Operating Temp – 10 °C ~ 40 °C
Operating Humidity 20℃ ≤90%
Battery 6V/4Ah lead acid rechargeable battery.
Adaptor DC9V
Battery Life >80 hours
Remote Distance 10 Meter
Dimensions 578X260 mm
Product Weight (approx.) 31 Kg Net weight
Warranty 3 Years

ACCESSORIES

  • Remote Control
  • Adaptor
  • Battery

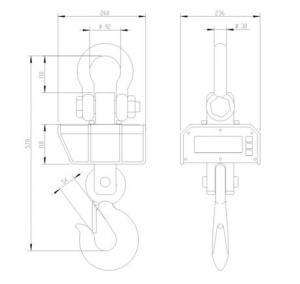

DIMENSIONAL DETAILS

SENS OCS-K Crane Scale dimension
