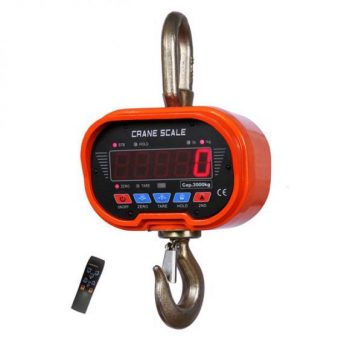

The OCS C series are Heavy Duty Crane Scales for: shipping operation, foundries, food processing plants, mining industry, batching operations, offshore operation, moulding industry, test facilities, melting process, etc. Simple and effective Crane Scale.
Features:
- Heavy Duty Crane Scale
- Includes infra-red remote control
- Body Structure: Aluminum die-casting Case with American standard Fixed shackle and American standard rotatable 360 Degree Swivel hook
- Available Capacities: 2000 to 5000 Kg
- ABS injection Waterproof panel
- Display: 38 mm LED Display
- High Capacity Rechargeable battery
- Units: Kg/ Lb./ N
- Resolution (Division) switch
- Functions: Units Conversion, Hold, TARE, Zero, Total Accumulation, Calibration, Auto Zero, Auto Power off, anti-motion, illumination level, Gross & Net weight
- Power: AC/DC with Rechargeable battery
- 2*Rechargeable batteries
- Over Load Protection and alarm
OCS-C crane scale provides the most efficient, simple solution to suspension weighing.
The Aluminium crane scale makes it genuinely portable and with a capacity range from 1 Ton to 5 Ton it is suitable for a wide variety of applications. The accuracy ranges from 500g to 2kg.

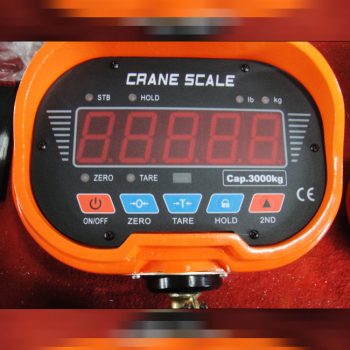

The scale has a large bright red LED clearly visible from long distances and benefits from a long life internal 6V/ah rechargeable battery

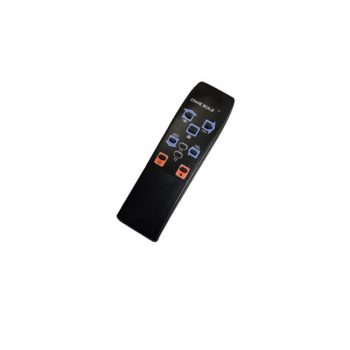

An infrared remote control comes as standard and enables easy operation at a safe distance from the crane scale.
Hold, tare and zero features come as standard and there is an easy to use digital calibration routine to ensure weighing accuracy. This latest design of crane scale is robust, portable, accurate.
- Heavy Duty Crane Scale
- Easy to use
- Great Safety
- Strong Reliability
- Broad Applicability
- Complete function.
- Includes infra-red remote control
- Body Structure: Aluminum die-casting Case with American standard Fixed shackle and American standard rotatable 360 Degree Swivel hook
- Available Capacities: 2000, 3000 & 5000 Kg
- ABS injection Waterproof panel
- Display: 38 mm LED Display
- High Capacity Rechargeable battery
- Units: Kg/ Lb./ N
- Tare In/Tare Out
- Hold
- Low Voltage Alarm
- Overload Alarm
- Digital Calibration
- Tare Set
- Total/Delete/Clear Total
- View Total
- Auto Off Set
- Power-Saving Mode
- Display Luminance Set
- Display Speed Set
- Anti-motion Set
- Gravity Acceleration Set
- Power: AC/DC with Rechargeable battery
- Over Load Protection and alarm
Petra ME provide sales and service of all types of crane scale in UAE
| Model | OCS-C-2 | OCS-C-3 | OCS-C-5 | ||
| Capacity x Readability | 2000 Kg
1 kg |
3000Kg
1 kg |
5000 Kg
2 Kg |
||
| Legal for Trade |
Class III Equivalent to OIML R76 |
||||
| Digits | 5 Digit | ||||
| Display & Size | 38 mm LED | ||||
| Tare Range | 100% F.S. | ||||
| Auto Zero | ±20% F.S. | ||||
| Manual Zero | ±4% F.S. | ||||
| Zero‐tracking | 0.5e/s | ||||
| Reading Stable Time | ≤10 seconds | ||||
| Overload | 100% F.S. 9e | ||||
| Max. Safety Load | 120% F.S. | ||||
| Ultimate Load | 400% F.S. | ||||
| Keys | Power, Tare, Zero, Hold, 2nd Resolution Switch | ||||
| Functions | Tare In/Tare Out, Hold low Voltage Alarm, Overload Alarm, Digital Calibration, Tare Set,Total/Delete/Clear Total, View Total, Auto Off Set, Power-Saving Mode, Display Luminance Set, Display Speed Set, Anti-motion Set, Gravity Acceleration Set | ||||
| Operating Temp | – 10 °C ~ 40 °C | ||||
| Operating Humidity | 20℃ ≤90% | ||||

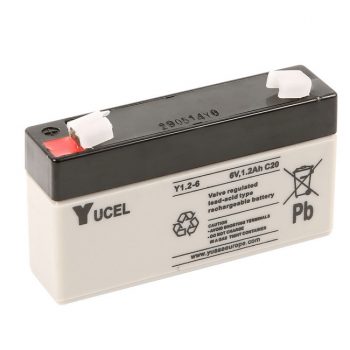

| Battery | 6V/3.2Ah lead acid battery. | ||||

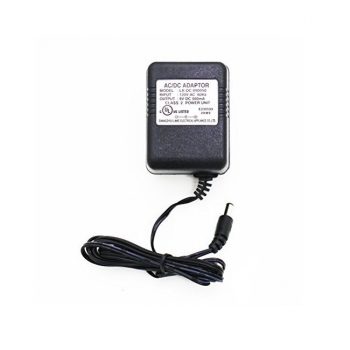

| Adaptor | AC220V input, DC9V/1500mA output | ||||
| Battery Life | >80 hours | ||||
| Remote Distance | 10 Meter | ||||

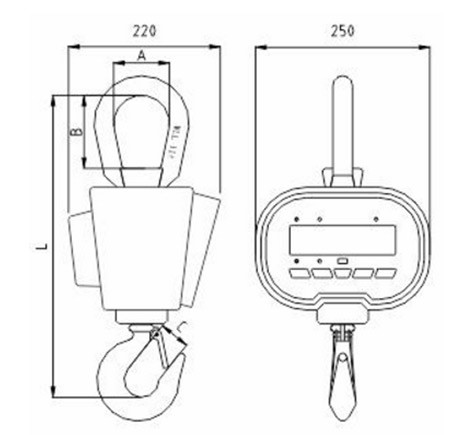

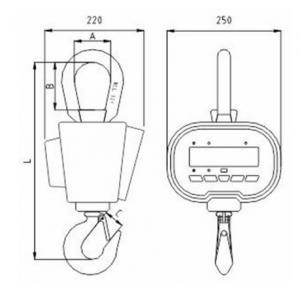

| Dimensions | 420×250 mm | 480 x 250 mm | |||
| Product Weight (approx.) | 11.5Kg Net Weight, 14 Kg Gross Weight | 15 Kget Weight, 18 Kg Gross Weight | |||
| Warranty | 3 Years | ||||
