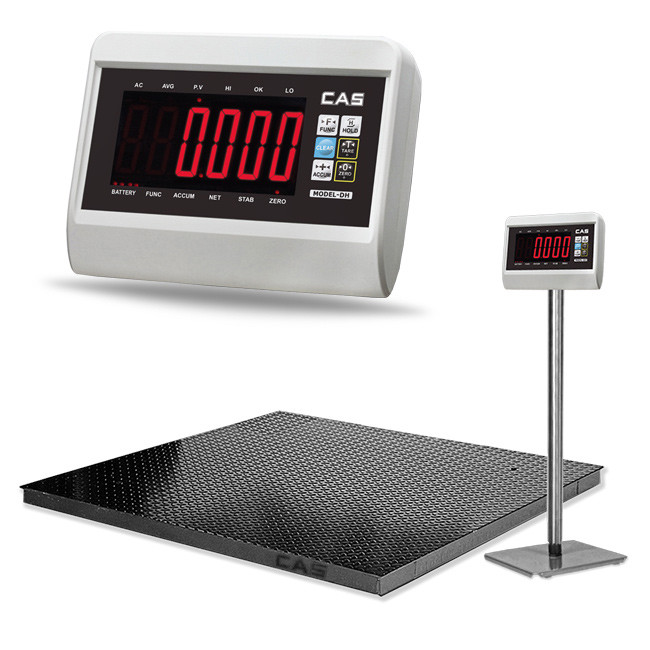

CAS DH Floor Scale
CAS DH Floor Scale
( Floor Scales | Heavy Duty Weighing Scales | Large Platform Scales )
DH Series is an advanced Floor scale with high resolution and various functions. It is suitable for use in all type of heavy industries.
Features:
- Floor Scale with Large LED Display
- Available Capacities: from 1 Ton to 10 Ton
- Display: Extra Large (XL) LED 51mm
- Body Structure:
- Heavy duty, low profile, single deck, powder coated mild steel

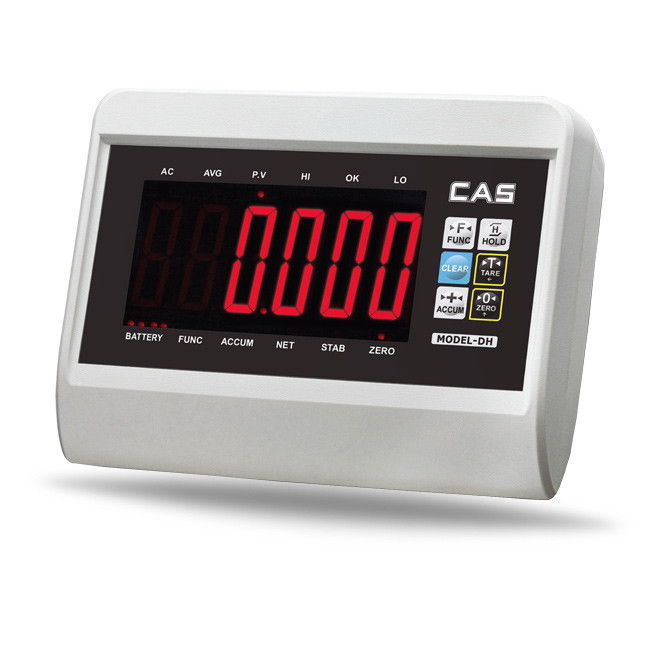

- Indicator: ABS Plastic
- Functions: Hold, Accumulation, TARE, Zero, Check Weight with alarm, Auto Calibration, Auto Zero, livestock stabilization, Illumination Level, Auto off
- Interface: Serial RS232
- Load Cells: 4 nos. of standard OIML alloy steel shear beam type
- Legs: 4 height adjustable swivel chromed steel and rubber feet
- Adjustable Rubber Corner Legs
- Structure Safe Maximum load 100%
- Checkered Upper Platform 5mm
- Powder Coated Steel Structure
- Metal Shielded Cable 5 meter
- Steel indicator Stand
- Built in Junction Box
- AC 110-240v with rechargeable battery
- Over Load Protection
ADD TO CART to buy or to Request for Quotation (RFQ)
DESCRIPTION
CAS DH – Floor Weighing Scales ( Floor Scales | Platform Scales | Floor Weighing Scales | heavy Duty Scales | Large weighing machines)
In general floor scales are industrial weighing scale (heavy duty) that also called as large weighing scale or large weighing machine The floor scale as a system contain 4 units of shear beam load cells connected to a a junction box and weighing indicator It’s Ideal to be used for weighing in logistics such as shipping & freight, warehousing, manufacturing, packaging. With fast speed and high precision, A/D conversion technology, the DH weighing indicator is suitable for either a bench platform scale, floor scale or any static check-weighing system that is equipped with 1~4 load cells. With a built-in rechargeable battery. Wide range of Platform sizes helps the customer to choose according to their requirements.- Large LED Display
- 72 Hrs of continuous use (6V4Ah Sealed Batteries)
- Available capacities: 1000,3000, 5000, 10,000 KG
- Large Display
- Check-weighing function with alarm for Hi & Lo
- 1/3,000 External resolution
- 10 times/sec A/D conversion speed
- Built-in rechargeable battery
- Communication interface: RS-232C & Current loop
- Lb/kg switchable
- Hold,
- Accumulation
- TARE
- Zero
- Counting
- Auto Calibration
- Auto Zero
- Human and Animal stabilize weighing
- Load Cells: 4 nos. of standard OIML alloy steel shear beam type
- Legs: 4 height adjustable swivel chromed steel and rubber feet
- Adjustable Rubber Corner Legs
- Structure Safe Maximum load 100%
- Checkered Upper Platform 5mm
- Powder Coated Steel Structure
- Metal Shielded Cable 5 meter
- Steel indicator Stand
- Built in Junction Box
- Legal for trade
- Great for all type of Industries
Petra ME | Floor Scales Suppliers : Regional Sales & Services
Floor Scales – UAE
Petra as Floor Scales Suppliers – UAE: if you are looking to find and buy a electronic and digital floor scales with different sizes and capacities Petra will provide you the best value and service . also we offer sales & service of floor scales with wash-down water-resistance types that comes with stainless steel construction As we are a main floor scales suppliers in UAE, we also do sales, service, repair, calibration and provide spare parts to all types of floor weighing machine in Dubai | Sharjah | Abu Dhabi | Ajman | Ras Al Khaimah (RAK) | Al Ain | Fujairah | Umm al-Quwain (UAQ).Foor Scales – Dubai
and we offer same day delivery to Dubai including JAFZA (Jabel Ali Free Zone)Floor Scales – Oman
Our delivery of floor scales to Oman based on Next day land courier cover the cities of Muscat | Salalah | Sur | Nizwa | Sohar | Khasab | Jabal | Shams| IbriSPECIFICATIONS
| Model | DH
1010-1 |
DH
1010-3 |
DH
1212-3 |
DH
1212-5 |
DH
1515-5 |
DH
2020-5 |
DH
2020-10 |
| Capacity x Readability | 1000 Kg
100 gm |
3000 Kg
200 gm |
3000 Kg
200 gm |
5000 Kg
500 gm |
5000 Kg
500 gm |
5000 Kg
1 kg |
10,000 Kg
1 kg |
| External Resolution | 1/3,000 | ||||||
| Loadcell Excitation voltage | DC 5V | ||||||
| Loadcell connection(350 Ω) | Max. 4ea | ||||||
| Input signal range | -19mV ~ 19mV | ||||||
| Digits | 6 digits (weight) | ||||||
| Display | LED 51 mm Height | ||||||
| A/D Conversion speed | 10 times/sec | ||||||
| Load Cell | 4 nos. of standard OIML alloy steel shear beam type | ||||||
| Keys | 6 Keys : Func, Hold, Clear, Tare, Zero, Accumulation | ||||||
| Functions | Hold, Accumulation, TARE, Zero, Kg/Lb., Counting, Auto Calibration, Auto Zero, Human and Animal stabilize weighing | ||||||
| Interface | RS-232C Current loop | ||||||
| Operating Temp | 0˚C ~ 40 ˚C | ||||||
| Power | DC 6V4Ah rechargeable battery, AC220V / 50, 60Hz | ||||||
| Battery Life Time | Approx. 30 hours | ||||||
| Battery charging time Approx. | Approx. 15 hours | ||||||
| Platter Size (CM) | 1×1 | 1×1 | 1.2×1.2 | 1.2×1.2 | 1.5×1.5 | 2.0×2.0 | 2.0×2.0 |
| Product Weight (approx.) | 75 kg | 75 kg | 85 kg | 85 kg | 100 kg | 125 kg | 150 kg |
| Warranty | 1 Year | ||||||
ACCESSORIES
- Indicator Stand
- Metal Shielded Cable

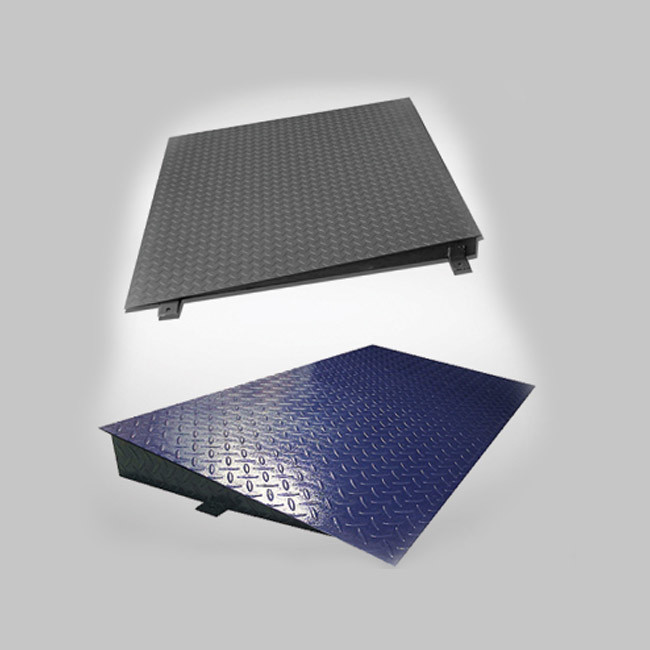

- Ramps
- Pallet Trolley
- Test Weights

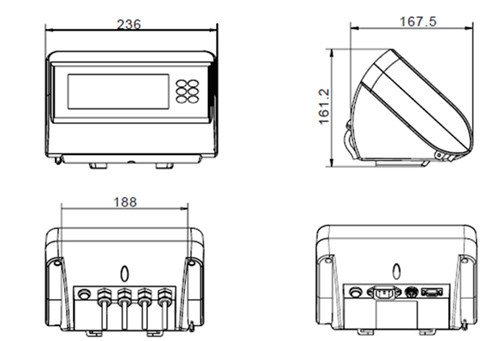

DIMENSIONAL DETAILS
