The TX Series is extremely capable but easy to operate. It is designed for Taking on weighing tasks everywhere which make the job much easier and more accurate. It’s a reliable partner that creates weighing desires. Its high Contrast LCD display make it visible even in dark places. It’s also capable of performing delicate jobs in which more accuracy is required.
Features:
- Precision / Analytical Scale
- Function: TARE, Zero, Auto Zero, Auto Power off, percentage weight, multi weighing units, basic PCS counting, print, environment adjust and more
- Counting function with storing sample details
- Multi units: grams (g), weigh in %, number of pieces, ct, kg, mg, lb, oz, TTI, etc. or a custom conversion more than 20 unit in all
- Shimadzu UniBloc sensor technology
- Windows-Direct Communication Function; Very easy that Only a cable is needed to send weighing data to a computer
- Continuous data output function
- Alpha-numeric menu LCD display with adjustable contrast and illumination
- RS232C interface
- Power: AC adaptor( DC12V, 1A ) or 6 AA batteries

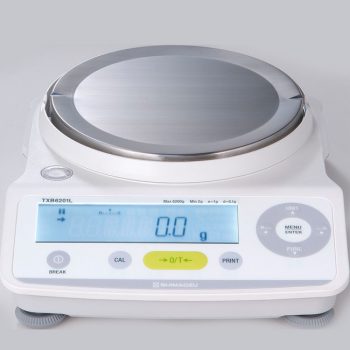

The Shimadzu TX series is a professional low-cost weighing balance that comes from the Japanese manufacturer. equipped with UniBloc weighing sensor that makes it rugged and accurate.

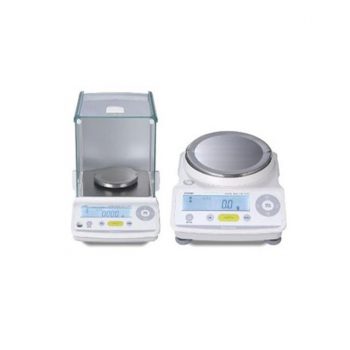

TX models division start with 1mg (0.001g) as an analytical balance. to ensure accuracy and stability the weighted item protected by a windshield.
- Precision / Analytical Balance
- Available capacities: 420 gm, 620 gm, 4.2 Kg
- Easy to operate key layout
- Easy Setting
- Data Management
- Comparator function
- RS232C interface
- Streamlined design for anti-theft options
- Change among many weighing units and functions with a single touch
- Fine measurements are assured with sliding glass door windbreak system
- Fast and flexible calibration
- Alpha-numeric display
- Up-front level indicator on display panel
- Easy glass doors cleaning
- Stainless steel tray
- Zero tracking function and settings
- Serial data output
- Windows Direct function
- Can be used anywhere with battery power
- Expanded Piece Counting function
- The illuminated display control provides a comfortable display
| Model | TX423L | TXB622L | TX4202L | ||||||
| Capacity x Readability | 420 gm
0.001 gm (1 mg) |
620 gm
0.01 gm (10 mg) |
4200 gm
0.01 gm (10 mg) |
||||||
| Repeatability | 0.001g | 0.01g | 0.01g | ||||||
| Linearity | ±0.002g | ±0.02g | ±0.02g | ||||||
| Response Time | 2.5 Seconds | 2.0 Seconds | 2.5 Seconds | ||||||
| Ambient Temperature | 5°C – 40°C | ||||||||
| Temperature Coefficient Sensitivity (ppm/C) | ±3 | ±5 | ±3 | ||||||
| Keys | Power, CAL, Zero / Tare, Print, Menu/Enter | ||||||||
| Functions | TARE, Zero, Auto Zero, Auto Power off, percentage weight, multi weighing units, basic PCS counting, print, environment adjust and more | ||||||||
| Display & Size | LCD With Back light Display | ||||||||
| Weight Units | g,mg, kg, ct, ozt, dwt, GN, HK tael, SG tael, TW tael, MTl,m,0,B,S,Ks,Tmom,lb,oz | ||||||||
| Data output | DATA I/O (for electronic printer, RS232C) | ||||||||
| Weight calibration | External | ||||||||
| Power | AC adaptor ( DC12V, 1A ) | AC adaptor ( DC12V, 1A ) or 6AA batteries | AC adaptor ( DC12V, 1A ) | ||||||
| Battery Life | Approx 40 hours (with back light off ) – TXB Series only | ||||||||
| Pan Size | 110 mm Dia | 167 x 181 mm | |||||||
| Pan Dimensions (mm) | 206(W)x291(D)×241(H） | 199(W)x260(D)×77(H） | 200(W)x291(D)×80(H） | ||||||
| Product Weight (approx.) | 3.8 Kg | 1.5 Kg | 2.8 Kg | ||||||
| Warranty | 1 Year | ||||||||
