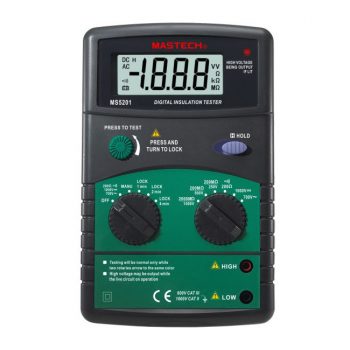

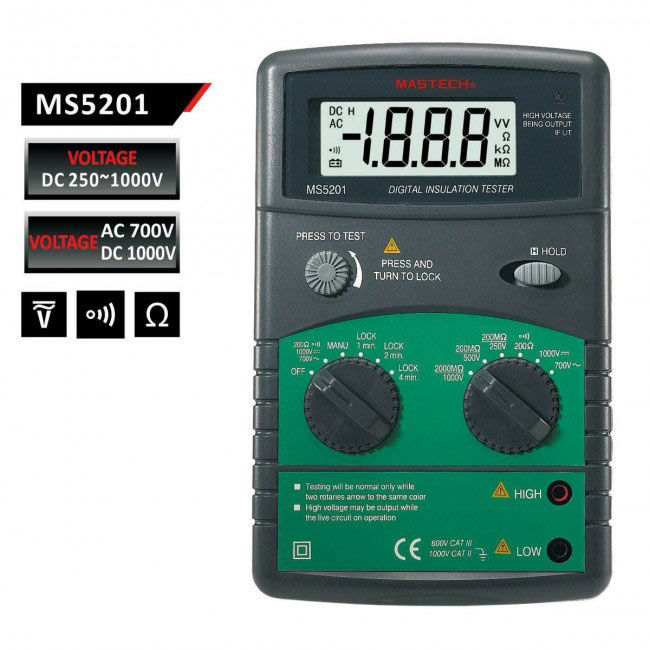

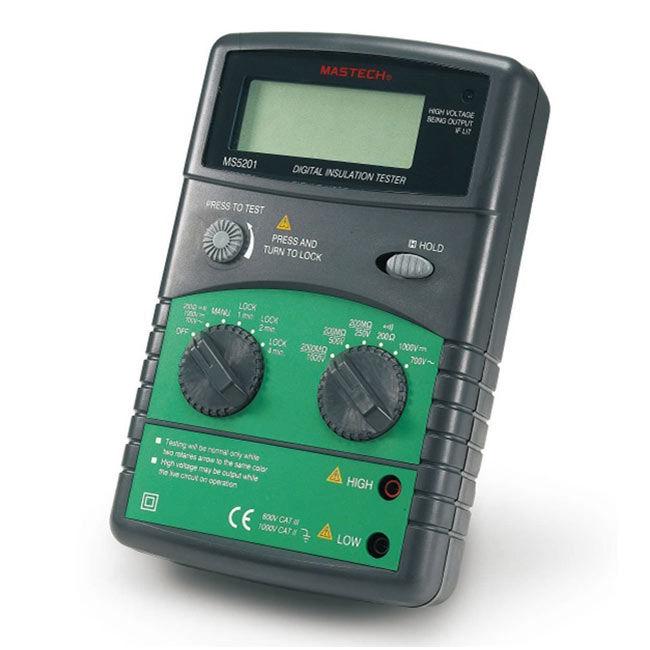

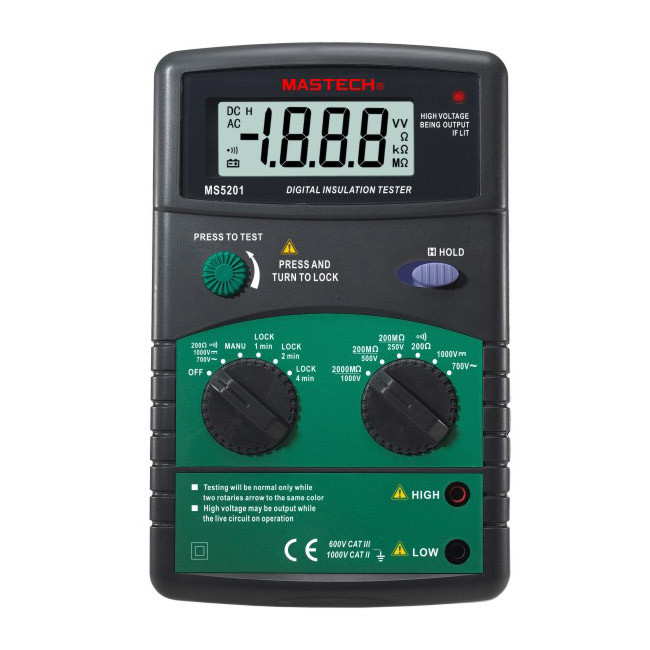

Mastech MS5201 Digital Insulation Tester
Mastech MS5201 Digital Insulation Tester
MS5201 is a portable professional measuring instrument with large LCD.
With sound and flash alarm, to protect the meter from the damage by operation improperly. Overload protection and low battery indication are provided as well.
Features:
- Display: 2000 counts
- Continuity Buzzer: <50Ω
- Date Hold
- Low Battery Display
- LOCK: Constant Measuring Lock
| Model Number | Range |
| MS5201 | 1000V DC or AC |
ADD TO CART to buy or to Request for Quotation (RFQ)
DESCRIPTION
- Max. Voltage Between Terminals And Earth Ground: 1000V DC or AC
- Measuring method: Dual-slope integration A/D converter
- Sampling Time: approx. 0.4 second
- Display: 22mm LCD
- Show Value: 1999 (3 1/2)
- Polarity Indication: ‘-’indicates negative polarity.
- Overrange Indication: Display ‘1’ or ‘-1’
- Unit showing: showing of function and electrical capacity.
- Power Supply: 1.5V×6 (size AA) batter (recommended to use the alkaline or heavy duty battery.)
- Power Consumption:
- 5mA（DC1000V、AC750V、200Ω、）
- 30mA（200MΩ/250V）
- 50mA（200MΩ/500V）
- 100mA（2000MΩ/1000V）
- Low Battery Indication: ‘’ displayed
- Operating Temperature: 0℃ to 40℃（32°F to 104°F）
- Operating Humidity: ≤85%RH
- Storage Temperature: -10℃ to 50℃（10°F to 122°F）
- Dimension: 192×122×55 mm
- Weight: Approx. 545g（including battery)
- Certificate: CAT III 1000V/CAT III 600V RoHS
SPECIFICATIONS
| Specification | Range | Resolution | Accuracy | |
| AC Voltage | 700V | 1V | +-(1.2%+5) | |
| DC Voltage | 1000V | 1V | +-(0.8%+3) | |
| Resistance | 200Ω | 0.1Ω | +-(1.0%+3) | |
| Insulation Resistance | ||||
| Range | 200MΩ/250V | 200MΩ/500V | 2000MΩ/1000V | |
| Test Voltage | DC 250V +-10% | DC 500V +-10% | DC 1000V +-10% | |
| Measuring Ranges | 0~200MΩ | 0~200MΩ | 0~2000MΩ | |
| 0MΩ~1000MΩ | 1000MΩ~2000MΩ | |||
| Accuracy | +-(3%+5) | +-(3%+5) | +-(3%+5) | +-(5%+5) |
| Output Voltage | ||||
| Range | 200MΩ/250V | 200MΩ/500V | 2000MΩ/1000V | |
| Output Voltage on Open Circuit | 250V +-10% | 500V +-10% | 1000V +-10% | |
| Minimum Output Voltage | 225V at 0.25MΩ | 450V at 0.5MΩ | 900V at 1MΩ | |
| Test Current (approx.) | 1mA at 0.25MΩ | 1mA at 0.5MΩ | 1mA at 1MΩ | |
| Output Voltage Circuit Current | ≤2.5mA | |||
