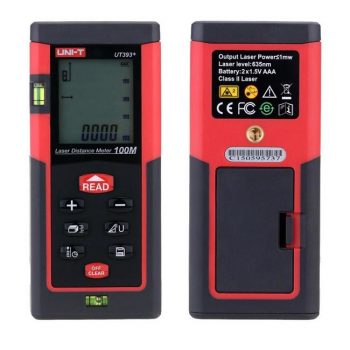

UNI-T UT393+ Laser Distance Meter

UNI-T UT393+ Laser Distance Meter

UT393+ is multi-purpose laser distance meter with high precision. It can measure distance, area, and even obtain volume data by using the Pythagorean Theorem. It is portable, reliable, operationally simple and fast. And it is a perfect substitute of traditional measuring tool (tape, steel rule) which can be widely used in construction, decoration, property management, transportation, fire controlling, gardening, city planning, city appearance management, water conservancy testing, and electric power maintenance industries.

Model Number Range
UT393+ Range: 100 meter

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

United Arab Emirates +971
0 / 180

Cart

DESCRIPTION

UT393+ is multi-purpose laser distance meter with high precision. It can measure distance, area, and even obtain volume data by using the Pythagorean Theorem. It is portable, reliable, operationally simple and fast. And it is a perfect substitute of traditional measuring tool (tape, steel rule) which can be widely used in construction, decoration, property management, transportation, fire controlling, gardening, city planning, city appearance management, water conservancy testing, and electric power maintenance industries.
Features
Continuous Measurement
Area/Volume Calculation
Pythagoras Theorem Calculation
Add/Subtract
Length Add/Subtract
Area Add/Subtract
Volume Add/Subtract
MAX/MIN
Lofting test
Delay test
Extend tail-board
Automatic calibration
Data Storage 100
Measurement times per  batteries 8000
Auto laser  off
Buzzer Indicate
Battery Indicator
Levelling instrument
Auto Power Off
Storage Temperature -20℃ ~ 60℃
Operate Temperature: 0℃ ~ 40℃
Relative Humidity RH85%
General Characteristics
General Characteristics
Power AAA 1.5V x 2
Product Color Red and Gray
Product Net Weight 112g
Product Size 123mm*50mm*28mm
Standard Accessories Reflector panel
Standard Individual Packaging Suction,English Manual ,Batteries,card
Standard Quantity Per Carton 60 PCS
Standard Carton Measurement 535*505*395mm
Standard Carton Gross Weight 16.4kg

SPECIFICATIONS

Specifications
Model UT393+
Accuracy (m) ±2mm
Measuring Distance (m) 100m
Unit M/in/ft
Laser Class 635nm,<1mw,Ⅱ class
