Mitutoyo 187 Digital Universal Protractor

Mitutoyo 187 Digital Universal Protractor

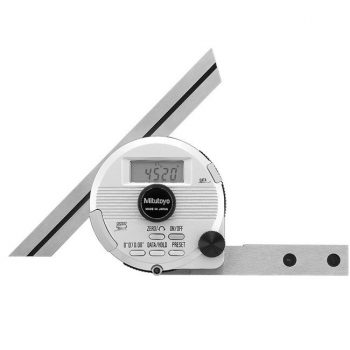

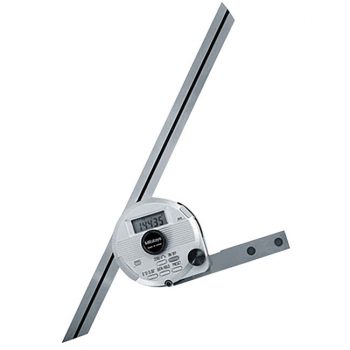

The Mitutoyo 187-552 digital universal bevel protractor has a 12″ blade and large LCD screen for precise readout in degrees and minutes. It measures in both clockwise and counterclockwise directions, with a 360-degree measuring range for full adjustment. The protractor measures angles to accurately position a workpiece or to repeat specific angle cuts.

Features:

  • Data output function make it easy to see the statistical data.
  • Can be attached to height gages. gage holder (950750, metric)
  • Setting preset value.
  • Removable blade.
Model Number Blade Length Resolution
187-552 Size: 12” 1 Deg

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

United Arab Emirates +971
0 / 180

Cart

DESCRIPTION

Protractors are tools that measure specific angles, allowing users to create and replicate desired angles. They include a stationary base and a movable rule, connected by a digital or manual scale. The scale measures in degrees and may measure more precisely to minutes, with 60 minutes equal to 1 degree. Protractors are suitable for a wide range of applications, such as measuring crown molding and installing baseboards. The protractor includes an on/off button, zero button, preset button, and a hold feature to keep a measurement on the screen. The LCD screen accommodates five digits and a plus or minus sign, and it includes a low-battery indicator. Battery life is 2,000 hours. The protractor includes a fine-setting function for high precision, indicating up to 1 minute of arc. The blade is both lockable and removable. The protractor is made from stainless steel for corrosion resistance. It includes a data output feature that allows the user to quickly export statistical data. The tool can be attached to a height gage, allowing additional measuring capacity.
  • Large digital LCD screen for precise readout measured in degrees and minutes
  • Measures different angles quickly with two directions (clockwise and counterclockwise) and a 360-degree range
  • Fine-setting function provides high precision with resolution to 1 minute of arc and accuracy to 2 minutes of arc, with lockable 12″ measuring blade
  • Data output function for statistical data recording
  • Stainless steel body for corrosion resistance
  • Range: -360° to +360°
  • Tolerance: ±2′ (±0.03°)
  • Repeatability: 1’
  • Resolution: 1’ (0.01°)
  • Battery: Lithium Battery
  • Battery life: 2,000 hours.

SPECIFICATIONS

Order Number Blade Resolution Battery Life Display Mass
187-552 12″ (187-103) Lithium/(CR2032)1pc 2000 hrs LCD -5 (-) sign, character height 6.5mm 1.45lbs 659g

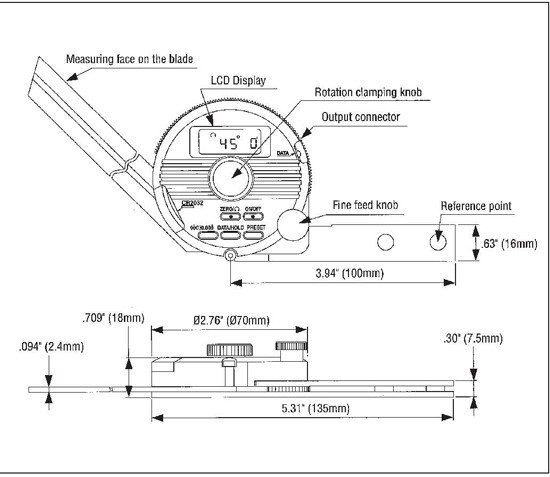

DIMENSIONAL DETAILS
