JCM Wireless Load Shackle with ALRS2 Handset - Load Shackle Dynamometer

Brand:

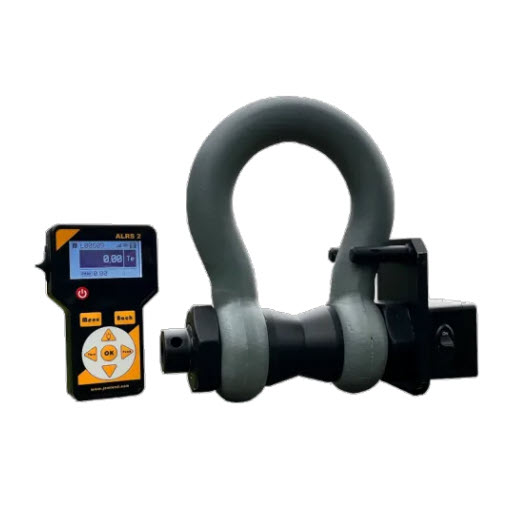

JCM Wireless Load Shackle with ALRS2 Handset – Load Shackle Dynamometer

Categories: ,

[dsalv]

This product is currently out of stock and unavailable.

  • Wireless load shackle with ALRS2 handheld display
  • Designed for real-time load monitoring in harsh industrial conditions
  • Full wireless operation with long-range telemetry
  • Robust anti-rotation design for stable and repeatable readings
  • Built with internal antenna and extended battery life
  • Suitable for crane lifting, rigging, load testing, and tension force monitoring
  • Available capacities from 6.5 tonne up to 1000 tonne
  • Supplied with traceable calibration certificate and standard certification package
  • Capacity: 6.5 Tonne, 12.5 Tonne, 25 Tonne, 35 Tonne, 55 Tonne, 85 Tonne, 120 Tonne, 150 Tonne, 200 Tonne, 250 Tonne, 300 Tonne, 500 Tonne, 700 Tonne
  • Dimensions: 102 × 52 × 22 × 25 × 84 × 36 mm, 147 × 72 × 32 × 35 × 119 × 51 mm, 216 × 103 × 45 × 50 × 146 × 74 mm, 238 × 111 × 50 × 57 × 187 × 83 mm, 310 × 145 × 65 × 70 × 267 × 105 mm, 340 × 162 × 75 × 83 × 260 × 127 mm, 428 × 208 × 95 × 95 × 350 × 147 mm, 485 × 238 × 105 × 108 × 370 × 169 mm, 530 × 279 × 120 × 130 × 470 × 179 mm, 565 × 299 × 130 × 140 × 508 × 205 mm, 585 × 325 × 140 × 150 × 570 × 205 mm, 710 × 298 × 180 × 185 × 636 × 256 mm, 810 × 435 × 205 × 217 × 600 × 310 mm
Inquiry Form
JCM Wireless Load Shackle with ALRS2 Handset – Load Shackle Dynamometer

Tags: , , , , , , , , , , , , , , , , , , , , ,

Brand:

JCM Wireless Load Shackle with ALRS2 Handset – Load Shackle Dynamometer

Categories: ,

JCM Wireless Load Shackle with ALRS2 Handset - Load Shackle Dynamometer

[dsalv]

This product is currently out of stock and unavailable.

  • Wireless load shackle with ALRS2 handheld display
  • Designed for real-time load monitoring in harsh industrial conditions
  • Full wireless operation with long-range telemetry
  • Robust anti-rotation design for stable and repeatable readings
  • Built with internal antenna and extended battery life
  • Suitable for crane lifting, rigging, load testing, and tension force monitoring
  • Available capacities from 6.5 tonne up to 1000 tonne
  • Supplied with traceable calibration certificate and standard certification package
  • Capacity: 6.5 Tonne, 12.5 Tonne, 25 Tonne, 35 Tonne, 55 Tonne, 85 Tonne, 120 Tonne, 150 Tonne, 200 Tonne, 250 Tonne, 300 Tonne, 500 Tonne, 700 Tonne
  • Dimensions: 102 × 52 × 22 × 25 × 84 × 36 mm, 147 × 72 × 32 × 35 × 119 × 51 mm, 216 × 103 × 45 × 50 × 146 × 74 mm, 238 × 111 × 50 × 57 × 187 × 83 mm, 310 × 145 × 65 × 70 × 267 × 105 mm, 340 × 162 × 75 × 83 × 260 × 127 mm, 428 × 208 × 95 × 95 × 350 × 147 mm, 485 × 238 × 105 × 108 × 370 × 169 mm, 530 × 279 × 120 × 130 × 470 × 179 mm, 565 × 299 × 130 × 140 × 508 × 205 mm, 585 × 325 × 140 × 150 × 570 × 205 mm, 710 × 298 × 180 × 185 × 636 × 256 mm, 810 × 435 × 205 × 217 × 600 × 310 mm

Tags: , , , , , , , , , , , , , , , , , , , , ,

GET QUOTATION
[woocommerce_variations_table]

The JCM Wireless Load Shackle is a heavy-duty wireless load monitoring solution used for measuring tension and load forces in industrial lifting applications. It is developed for harsh environments and limited headroom lifting points where a standard load cell or load link may not be suitable.

The shackle is designed with an anti-rotation system, load bobbin, and internal antenna to improve accuracy, repeatability, and durability during real-time load monitoring. With wireless communication to the ALRS2 handset, operators can safely read load values from a distance without cable connections.

This wireless load shackle is suitable for crane lifting, offshore lifting, rigging, load testing, industrial weighing, and heavy-duty force monitoring applications.

Key Features

  • Wireless load monitoring with ALRS2 handheld display
  • Full wireless operation without external cable connection
  • Long-range wireless telemetry for safer remote reading
  • Robust anti-rotation design for stable measurement
  • Load bobbin designed for the shackle bow and pin
  • Internal antenna for protected wireless communication
  • Extended battery life for field operation
  • Traceable calibration supplied as standard
  • Optimized accuracy and repeatability
  • Designed for harsh industrial conditions
  • Available capacities from 6.5 tonne up to 1000 tonne

Available Capacities

Standard available capacity options include:

6.5T, 12.5T, 25T, 35T, 55T, 85T, 120T, 150T, 200T, 250T, 300T, 500T, and 700T
The datasheet also mentions capacity availability up to 1000 tonne. Critical dimensions should be confirmed before ordering.

Certification Package

Each JCM wireless load shackle is supplied with:

  • Calibration Certificate
  • Certificate of Incorporation
  • CE Certificate of Conformity
  • User Instructions
  • Calibration instructions available on request

Packaging

  • 6.5T and 13.5T load shackles are supplied in an IP68 transit case
  • 25T and above are supplied in a hinged wooden transit crate manufactured from heat-treated timber for international shipping

Applications

  • Crane load monitoring
  • Rigging and lifting operations
  • Offshore and marine load testing
  • Heavy industrial lifting
  • Pulling force measurement
  • Load testing and proof load applications
  • Wireless tension force monitoring
  • Limited headroom lifting points

Additional information

Capacity

6.5 Tonne, 12.5 Tonne, 25 Tonne, 35 Tonne, 55 Tonne, 85 Tonne, 120 Tonne, 150 Tonne, 200 Tonne, 250 Tonne, 300 Tonne, 500 Tonne, 700 Tonne
Dimensions

102 × 52 × 22 × 25 × 84 × 36 mm, 147 × 72 × 32 × 35 × 119 × 51 mm, 216 × 103 × 45 × 50 × 146 × 74 mm, 238 × 111 × 50 × 57 × 187 × 83 mm, 310 × 145 × 65 × 70 × 267 × 105 mm, 340 × 162 × 75 × 83 × 260 × 127 mm, 428 × 208 × 95 × 95 × 350 × 147 mm, 485 × 238 × 105 × 108 × 370 × 169 mm, 530 × 279 × 120 × 130 × 470 × 179 mm, 565 × 299 × 130 × 140 × 508 × 205 mm, 585 × 325 × 140 × 150 × 570 × 205 mm, 710 × 298 × 180 × 185 × 636 × 256 mm, 810 × 435 × 205 × 217 × 600 × 310 mm
