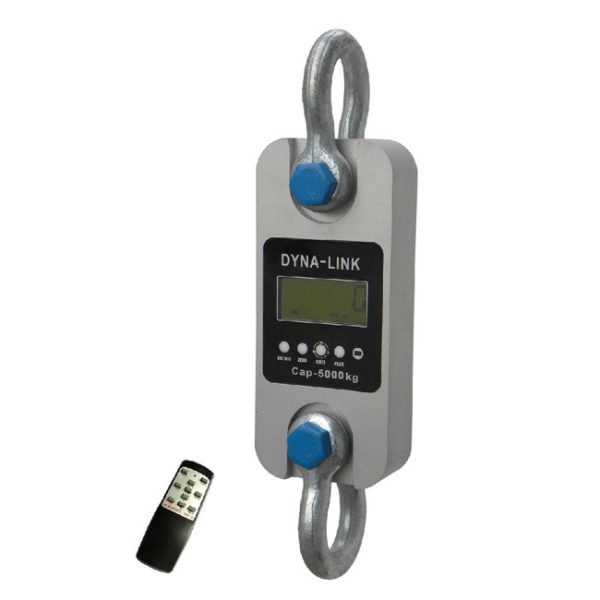

SiGMA DDM (Wireless Enabled) – Dynamometer

ADD TO CART to buy or to Request for Quotation (RFQ)

[dsalv]

Capacity ranges: 1~50 ton
Body Structure: Aluminum
Waterproof keypad
Display: 25mm LCD with backlight
Units: Kg/ Ton/ Lb./ N/ kN
Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration
AA battery power supply
Load Protection and alarm

Scale Capacity Range (Crane): 12-20 Ton, 2,000 kg (2 Ton), 25-50 ton, 3 Ton, 5 Ton, 500-1,500 kg, 9-10 ton
Part number: DDM [W] 1ton, DDM [W] 2ton, DDM [W] 3ton, DDM [W] 5ton, DDM [W] 10ton, DDM [W] 20ton, DDM [W] 30ton, DDM [W] 50ton
Capacity: 1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 20 ton, 30 ton, 50 ton
Resolution: 0.5 kg, 1 kg, 2 kg, 5 kg, 10 kg, 20 kg
Unit Weight: 1.6 kg, 2.1 kg, 2.7 kg, 10.4 kg, 17.8 kg, 25 kg, 39 kg
Material: Aluminum, Alloy Steel
Type of display: LCD
Units: kg, lb (pound)
Placement: Hanging
Interface: Wi-Fi

Brand: SiGMA

[dsalv]

ADD TO CART to buy or to Request for Quotation (RFQ)

Capacity ranges: 1~50 ton
Body Structure: Aluminum
Waterproof keypad
Display: 25mm LCD with backlight
Units: Kg/ Ton/ Lb./ N/ kN
Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration
AA battery power supply
Load Protection and alarm

Scale Capacity Range (Crane): 12-20 Ton, 2,000 kg (2 Ton), 25-50 ton, 3 Ton, 5 Ton, 500-1,500 kg, 9-10 ton
Part number: DDM [W] 1ton, DDM [W] 2ton, DDM [W] 3ton, DDM [W] 5ton, DDM [W] 10ton, DDM [W] 20ton, DDM [W] 30ton, DDM [W] 50ton
Capacity: 1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 20 ton, 30 ton, 50 ton
Resolution: 0.5 kg, 1 kg, 2 kg, 5 kg, 10 kg, 20 kg
Unit Weight: 1.6 kg, 2.1 kg, 2.7 kg, 10.4 kg, 17.8 kg, 25 kg, 39 kg
Material: Aluminum, Alloy Steel
Type of display: LCD
Units: kg, lb (pound)
Placement: Hanging
Interface: Wi-Fi

[woocommerce_variations_table]

Specifications and product description

Rugged construction.
Accuracy: 0.05% of capacity.
All functions and units are clearly displayed on the LCD (with backlighting).
Display size: 1 inch high (25mm).
Two user-programmable Set-Point can be used for safety and warning applications or limit weighing.
Long battery life on 3 standards “LR6(AA)” size alkaline batteries.
All commonly used internationally recognized units are available: kilograms(kg), short Tons(t) pounds(lb), Newton, and kilonewton(kN).
The Infrared Remote control is easier to calibration (with password).
Infrared Remote control with many functions: “ZERO”,” TARE”,” CLEAR”, “PEAK”,” ACCUMULATE”,” HOLD”,” Unit Change”,” Voltage Check” and “Power OFF”.
Gravity regulation: The acceleration of gravity can be regulated through indicator according to different places value
4 local mechanical keys:” ON/OFF”,” ZERO”,” PEAK” and” Unit Change”
low battery warning.

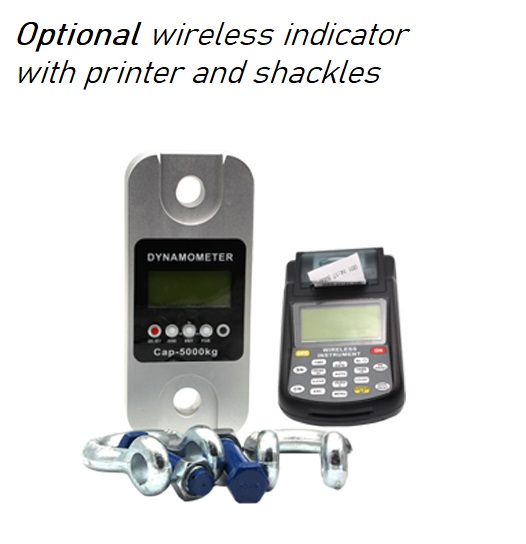

Antenna: Internal antenna for Wireless indicators and printer. (Optional)
580 Printing Indicator: A portable weighing and force indicator with a built-in thermal receipt printer. Dual RS232 serial port and USB, PC host computer software, not only display weigh the value and stable information on the PC, but can also enter the company’s name, complete storage, print query, and other functions. (Optional)
380 RF wireless palm indicator. (Optional)
Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish. (Optional)

Scale Capacity Range (Crane)	12-20 Ton, 2,000 kg (2 Ton), 25-50 ton, 3 Ton, 5 Ton, 500-1,500 kg, 9-10 ton
Part number	DDM [W] 1ton, DDM [W] 2ton, DDM [W] 3ton, DDM [W] 5ton, DDM [W] 10ton, DDM [W] 20ton, DDM [W] 30ton, DDM [W] 50ton
Capacity	1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 20 ton, 30 ton, 50 ton
Resolution	0.5 kg, 1 kg, 2 kg, 5 kg, 10 kg, 20 kg
Unit Weight	1.6 kg, 2.1 kg, 2.7 kg, 10.4 kg, 17.8 kg, 25 kg, 39 kg
Material	Aluminum, Alloy Steel
Type of display	LCD
Units	kg, lb (pound)
Placement	Hanging
Interface	Wi-Fi
