Sigma DDM-W3M – Multi-channel Wireless Dynamometer

Name: Sigma DDM-W3M - Multi-channel Wireless Dynamometer Supplier in Muscat, Salalah, Sohar - Petra Mechatronics - Oman
SKU: SIG-Dynamometer-Multichannel-DDM-W3M-Series

Categories: Dynamometer, Multi-channel Wireless Dynamometer, Tension Force Dynamometer, Wireless Load Cell

ADD TO CART to buy or to Request for Quotation (RFQ)

[dsalv]

Brand : Sigma (Taiwan)
Body Structure: Aluminum / Alloy Steel powder coated
Waterproof keypad
Display:
- Dynamometer: 25mm LCD display with backlight
- 380 Indicator: Dotmatrix LCD display with backlight
Wireless Distance: 50m without obstacle
Units: Kg/ Ton/ Lb./ N/ kN
Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration
Power: AA Batteries
Over Load Protection and alarm
1 year: warranty

Model: DDM-W3M-01, DDM-W3M-02, DDM-W3M-03, DDM-W3M-05, DDM-W3M-10, DDM-W3M-20, DDM-W3M-30, DDM-W3M-50, DDM-W3M-100
Capacity / Division: 1 ton / 0.5 kg, 2 ton / 1 kg, 3 ton / 1 kg, 5 ton / 2 kg, 10 ton / 5 kg, 20 ton / 5 kg, 30 ton / 10 kg, 50 ton / 20 kg, 100 ton / 50 kg

Inquiry Form

Sigma DDM-W3M – Multi-channel Wireless Dynamometer

Tags: Compression Force Gauge, Crane Dynamometer, Crane Scale Dynamometer, Digital Dynamometer, Dynamometer, Dynamometer for Force Measurement, Dynamometer for Load Testing, Dynamometer Force Gauge, Dynamometer Force Measurement, Dynamometer Gauge, Dynamometer Load Cell, Dynamometer Tension Gauge, Force Dynamometer, Force Load Cell, Force Meter, Industrial Dynamometer, Load Cell Dynamometer, Load Cell Measurement, Load Cell Muscat, Load Cell Oman, Load Cell Price, Load Cell Salalah, Load Cell Supplier, Load Cell Supplier in Oman, Load Cell with Display, Load Dynamometer, Load Sensor, Muscat Load Cells, Strain Gauge Sensor, Strain Sensor, Stress Gauge Sensor, Tension Dynamometer, Tension Force, Tension Force Gauge, Tension Force Load Cell, Tension Force Measurement, Tension Force Meter, Tension Load Cell, Weight Sensing Sensor, Wireless Dynamometer, Wireless Load Cell, Wireless Loadcell

Brand: SiGMA

Sigma DDM-W3M – Multi-channel Wireless Dynamometer

Categories: Dynamometer, Multi-channel Wireless Dynamometer, Tension Force Dynamometer, Wireless Load Cell

[dsalv]

ADD TO CART to buy or to Request for Quotation (RFQ)

Brand : Sigma (Taiwan)
Body Structure: Aluminum / Alloy Steel powder coated
Waterproof keypad
Display:
- Dynamometer: 25mm LCD display with backlight
- 380 Indicator: Dotmatrix LCD display with backlight
Wireless Distance: 50m without obstacle
Units: Kg/ Ton/ Lb./ N/ kN
Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration
Power: AA Batteries
Over Load Protection and alarm
1 year: warranty

Model: DDM-W3M-01, DDM-W3M-02, DDM-W3M-03, DDM-W3M-05, DDM-W3M-10, DDM-W3M-20, DDM-W3M-30, DDM-W3M-50, DDM-W3M-100
Capacity / Division: 1 ton / 0.5 kg, 2 ton / 1 kg, 3 ton / 1 kg, 5 ton / 2 kg, 10 ton / 5 kg, 20 ton / 5 kg, 30 ton / 10 kg, 50 ton / 20 kg, 100 ton / 50 kg

GET QUOTATION

[woocommerce_variations_table]

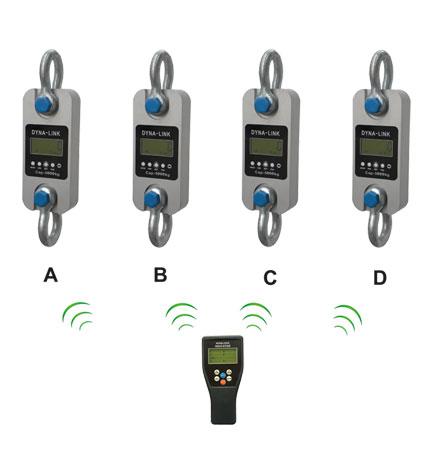

DDM-W3M wireless dynamometer is an extremely well-built instrument for industry use, whether used as a conventional crane weigher or to measure force, DDM-W3M wireless dynamometer is microprocessor controlled for high precision accuracy, it can display up to 4 dynamometers data and sum at the same time, it also provides user two user-programmable Set-Point for safety and warning applications or for limit weighing. Parameter setting and calibration are easy through wireless handheld indicator 380.

Specifications:

Body protection: Aluminum and alloy steel capacities are powder coated.
Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
Gravity regulation: The acceleration of gravity can be regulated through indicator parameter setting according to different places value.

Features

Body Display	25mm (1’’) 5digits LCD with backlight

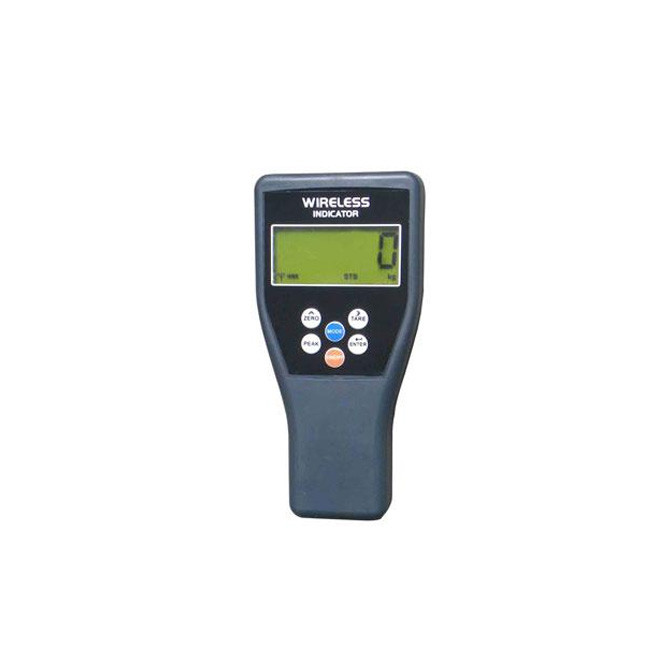

380M Indicator Display	128×64 dot matrix LCD with backlight
Power on zero range	20% F.S.
Manual Zero Range	4% F.S.
Tare Range	100% F.S.
Stable Time	≤5 seconds
Overload Indication	100% F.S. + 9e

Max. Safety Load	125% F.S.
Ultimate Load	400% F.S.
Battery Life	≥50 hours
Body Battery	“LR6(AA)”size alkaline batteries. 1.5Vⅹ3
Indicator Battery	“LR6(AA)”size alkaline batteries. 1.5Vⅹ4
Operating Temp.	– 20℃ ~ + 50℃
Operating Humidity	≤85% RH under 20℃
Wireless Distance	50m without obstable

Main technical data

MODEL	A(mm)	B(mm)	C(mm)	D(mm)	φ(mm)	H(mm)	Material
DDM-W3M-1	245	112	37	190	43	335	Aluminum
DDM-W3M-2	245	112	37	190	43	335	Aluminum
DDM-W3M-3	260	123	37	195	51	365	Aluminum
DDM-W3M-5	285	123	57	210	58	405	Aluminum
DDM-W3M-10	320	120	57	230	92	535	Alloy Steel
DDM-W3M-20	420	128	74	260	127	660	Alloy Steel
DDM-W3M-30	420	138	82	280	146	740	Alloy Steel

Specification

Model	Max.Capacity (kg)	Min.Weigh (kg)	Division (kg)	Total display counts (n)
DDM-W3M-1	1000	10	0.5	2000
DDM-W3M-2	2000	20	1	2000
DDM-W3M-3	3000	20	1	3000
DDM-W3M-5	5000	40	2	3000
DDM-W3M-10	10000	100	5	2000
DDM-W3M-20	20000	200	10	2000
DDM-W3M-30	30000	200	10	3000

Additional information

Model	DDM-W3M-01, DDM-W3M-02, DDM-W3M-03, DDM-W3M-05, DDM-W3M-10, DDM-W3M-20, DDM-W3M-30, DDM-W3M-50, DDM-W3M-100
Capacity / Division	1 ton / 0.5 kg, 2 ton / 1 kg, 3 ton / 1 kg, 5 ton / 2 kg, 10 ton / 5 kg, 20 ton / 5 kg, 30 ton / 10 kg, 50 ton / 20 kg, 100 ton / 50 kg
