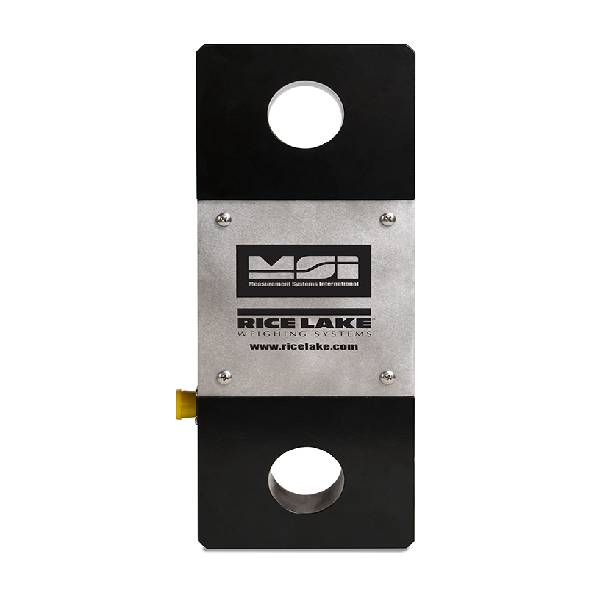

The MSI Tension Link integrates between a crane block and lifting equipment to provide force measurement for lifted items, making it an ideal integration for cranes. The MSI Tension Link features a 7:1 safety factor for compliance with industrial and military safety requirements.
| Input Resistance: 1,500 ohmOutput Resistance: 2,000 ohmFull Scale Output: 0.8mV/VConnector Pin Out: A: EX+ B: Sig + C: Sig – D: EX- |
Sensor Accuracy: 0.1%Material: 4340 steel |
| Capacity | P/N | Load Cell Material |
(A) Headroom Loss | (B) C-C Length | (C) Lug Thk | (D) Body Thk | (E) Body Width | (F) Body Length | Lug Hole | Crosby Shackle | |
| lbs | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2,000 | 181907 | Aluminum | 13.50 | 8.00 | 0.99 | 2.13 | 4.50 | 9.75 | 0.78 | 3-1/4 T | 151357 |
| 5,000 | 181908 | Aluminum | 13.50 | 8.00 | 0.99 | 2.13 | 4.50 | 9.75 | 0.78 | 3-1/7 T | 151357 |
| 10,000 | 181909 | Aluminum | 16.13 | 8.50 | 1.35 | 2.13 | 5.37 | 10.75 | 1.05 | 6-1/2 T | 151355 |
| 25,000 | 178093 | Steel | 22.39 | 9.26 | 2.24 | 2.24 | 4.80 | 12.76 | 1.67 | 17 T | 141992 |
| 50,000 | 178094 | Steel | 25.74 | 9.76 | 2.74 | 2.81 | 5.43 | 13.76 | 2.05 | 25 T | 151356 |
| 100,000 | 181910 | Steel | 28.49 | 10.74 | 3.09 | 3.09 | 6.86 | 15.74 | 2.30 | 55 T | 146336 |
| model | SL15, SL30, SL50, SL100, SL300, SL500, SL1000 |
|---|
