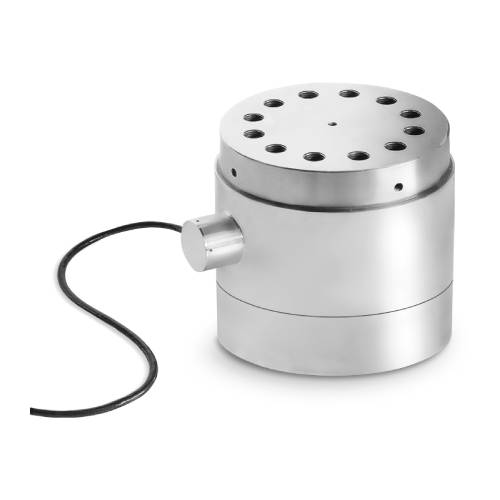

MAIN FEATURES

• CAPACITIES from 50 to 1.000 t
• GREAT RESISTANCE TO LATERAL FORCES
• STAINLESS STEEL CONSTRUCTION
• IP67 PROTECTION RATING
• SHIELDED CONNECTION CABLE

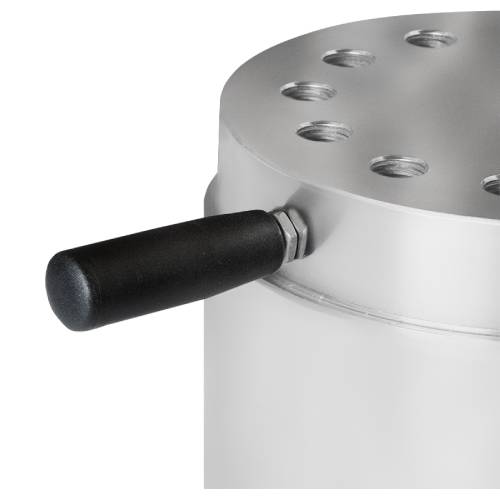

• REMOVABLE HANDLES FOR TRANSPORTING THE LOAD CELL

TECHNICAL FEATURES

• Full Scale Output: 2mV/V ± 1%
• Repeatability: 0,1% F.S.
• Temperature effect on zero: 0,0014% F.S./°C
• Temperature effect on full scale output: 0,0013% F.S./°C
• Compensated Temperature Range: -10°C / +40°C
• Operating Temperature Range: -30°C / +85°C
• Storage Temperature Range: -30°C / +90°C
• Non-linearity: 0,15% F.S.
• Hysteresis: 0,15% F.S.
• Creep error after 4 hours: 0,05% F.S.
• Maximum tolerated excitation voltage: 15 Vdc
• Input Resistance (capacity from 50 to 500 t): 1050 ± 20 Ohm
• Output Resistance (capacity from 50 to 500 t): 1050 ± 20 Ohm
• Input Resistance (capacity from 800 to 1.000 t): 1400 ± 20 Ohm
• Output Resistance (capacity from 800 to 1.000 t): 1400 ± 20 Ohm
• Zero Balance: ± 2% F.S.
• Insulation Resistance: > 5.000 MOhm
• Safe Overload: > 150% F.S.
• Breaking load: > 300% F.S.
• 6-wire shielded cable, 5 mm diameter:
  – 15 m long for the versions from 50 to 500 t
  – 25 m long for the versions from 800 to 1.000 t
