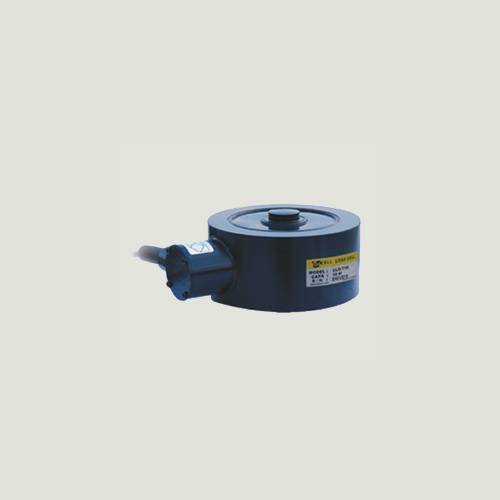

Low Profile Compression Service Load Cell.
Hopper, Tank Weighing
Tags: Analog Load Cell, Force Sensor, Force Transducer, Load Cell Oman, Load Cell Price, Load Cell Sensor, Load Cell Supplier, Load Cell Supplier in Oman, Petrascale, Strain Gauge, Strain Gauge Load Cell, Strain Gauge Sensor, Stress Gauge, Stress Gauge Sensor, Torque Sensing, Weighing Sensor, Weight Scale Sensor, Weight Sensor, Weight Transducer
| Specifications | Accuracy | |
|---|---|---|
| CL | CLH | |
| Rated capacity(R.C) | 500kgf, 1tf, 2tf, 5tf, 10tf, 20tf, 50tf, 100tf, 200tf, 300tf, 500tf | 500kgf, 1tf, 2tf, 5tf, 10tf, 20tf, 50tf |
| Rated output(R.O) | 2mV/V±0.1% | 2mV/V±0.1% |
| Nonlinearity | 0.05% of R.O.(100tf, 200tf : 0.1%) | 0.02% of R.O. |
| Hysteresis | 0.05% of R.O.(100tf, 200tf : 0.1%) | 0.02% of R.O. |
| Repeatability | 0.03% of R.O.(100tf, 200tf : 0.05%) | 0.02% of R.O. |
| Zero balance | ±2% of R.O. | ±2% of R.O. |
| Temperature effect, on rated output | 0.05% of LOAD/10℃ | 0.03% of LOAD/10℃ |
| Temperature effect, on zero balance | 0.05% of R.O./10℃ | 0.03% of R.O./10℃ |
| Temperature range, compensated | -10~60℃ | |
| Temperature range, safe | -20~80℃ | |
| Terminal resistance input | 700 ±30Ω | |
| Terminal resistance output | 700 ±30Ω | |
| Insulation resistance bridge/case | 2000MΩ | |
| Excitation recommended | 10V | |
| Safe overload | 150% R.C | |
| Cable length | Φ7mm 4core,3m | |
| Capacity | ΦA | B | ΦC | D | E | ΦF | G | H | RI | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 500kgf (4.903KN) | 88 | 30 | 16 | 1.5 | M6x1 DP10 | 70 | 119 | 5 | 60 | 1.8 |
| 1tf (9.807KN) | 98 | 46 | 22 | 1.5 | M8x1.25 DP12 | 80 | 129 | 7 | 60 | 26 |
| 2tf (19.61KN) | 98 | 46 | 22 | 1.5 | M8x1.25 DP12 | 80 | 129 | 7 | 60 | |
| 5tf (49.03KN) | 98 | 46 | 22 | 1.5 | M8x1.25 DP12 | 80 | 129 | 7 | 60 | |
| 10tf (98.07KN) | 118 | 65 | 24 | 11 | M8x1.25 DP12 | 98 | 149 | 7 | 80 | 3.8 |
| 20tf (196.1KN) | 157 | 65 | 34 | 11 | M8x1.25 DP12 | 120 | 188 | 10 | 100 | 8 |
| 30tf (294.2kN) | 187 | 75 | 50 | 16 | M12×1.75 DP20 | 150 | 218 | 10 | 140 | 14 |
| 50tf (490.3KN) | 187 | 75 | 50 | 16 | M12x1.75 DP20 | 150 | 218 | 10 | 140 | 14 |
| 100tf (980.7KN) | 278 | 120 | 74 | 37 | M12x1.75 DP20 | 240 | 309 | 15 | 160 | 45 |
| 200tf (1.961MIN) | 320 | 170 | 100 | 63.5 | M16x2 DP20 | 270 | 351 | 15 | 250 | 85 |
| 300tf (2.942MIN) | 396 | 195 | 140 | 68.5 | M16x2 DP20 | 330 | 427 | 15 | 320 | 180 |
| 500tf (4.903MIN) | 430 | 200 | 150 | 68.5 | M20x2.5 DP25 | 360 | 485 | 20 | 320 | 220 |
| model | SL15, SL30, SL50, SL100, SL300, SL500, SL1000 |
|---|
