WS15SL - Electric Stacker
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]

Tags: ,

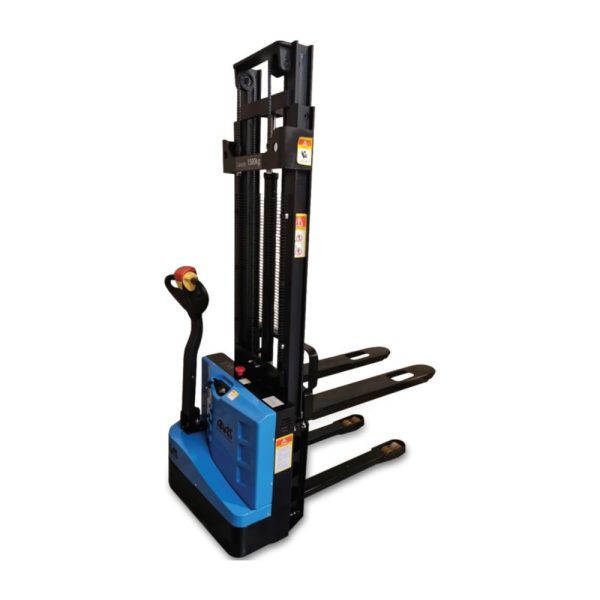

WS15SL – Electric Stacker

Categories: ,

Call for price

[posbadges]

Specifications

  • Mast lower height: 2135mm
  • Mast extend height: 3750mm
  • Lifting height: 3300mm
  • Free lift: – mm
  • Mast profile: H+H model mm
  • Overall lenght: 1775mm
  • Fork width: 160mm
  • Overall width: 820mm
  • Fork length: 1150mm
  • Outer width of the fork: 560mm
  • Lowered height of fork: 90mm
  • Clearance: 30mm
  • Min. turning radius: 1460mm
  • Rear body height: 760mm
  • Aisle width (800*1200mm pallet): 2240mm
  • Aisle width (1000*1200mm pallet): 2320mm
GET QUOTATION

WS15SL – Electric Stacker

WS15SL - Electric Stacker

Categories: ,

Call for price

[posbadges]

Specifications

  • Mast lower height: 2135mm
  • Mast extend height: 3750mm
  • Lifting height: 3300mm
  • Free lift: – mm
  • Mast profile: H+H model mm
  • Overall lenght: 1775mm
  • Fork width: 160mm
  • Overall width: 820mm
  • Fork length: 1150mm
  • Outer width of the fork: 560mm
  • Lowered height of fork: 90mm
  • Clearance: 30mm
  • Min. turning radius: 1460mm
  • Rear body height: 760mm
  • Aisle width (800*1200mm pallet): 2240mm
  • Aisle width (1000*1200mm pallet): 2320mm
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]

Tags: ,

GET QUOTATION
[woocommerce_variations_table]

Characteristics

  • Type of drive: Full electric
  • Operator type: walkie
  • capacity: 1500kg
  • load center: 600mm
  • Wheel base: 1275mm

Weight

  • Wheel type: PU
  • Size of front wheels: c78mm
  • Size of drive wheels: c220mm
  • Size of balance wheels: c124mm
  • Wheels quantity(driving+banlance+loaden) 1+1+4pcs

Weight

  • Service weight without battery: 590kg
  • Service weight with battery: 640kg

Performance

  • Travel speed: laden 4.5 / unladen 4.7
  • Lift speed: laden 75mm/s – unladen 90mm/s
  • Lower speed: laden 85mm/s – unladen 75mm/s
  • Gradeability: laden 5% – unladen 7%

Electric engine

  • Drive motor 0.75Kw
  • Lift motor 2.2Kw
  • Battery voltage/capacity(20h): (12V/75Ah)2 V/Ah
  • Battery size: (260 172×170) 2 mm
  • Brake type: Electromagnetic
  • Control system: 1212P-2501 (CURTIS)

Additional information

Model

WS15SL
Weighing Scale Capacity
