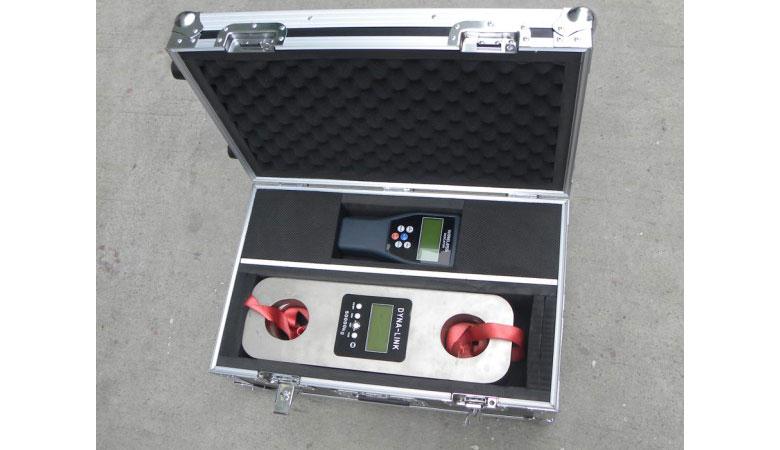

DDM-W3 wireless dynamometer is an extremely well-built instrument for industry use, as a standard wireless tool that offers universal applications. The indicator 380 is handheld and very compact to use, making the customer requirements simpler and handier. DDM-W3 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with Palm size 380 indicator.
Specifications:
Features:-
| Display | 25mm (1’’) 5digits LCD |
| Power on zero range | 20% F.S. |
| Manual Zero Range | 4% F.S. |
| Tare Range | 20% F.S. |
| Stable Time | ≤10seconds |
| Overload Indication | 100% F.S. + 9e |
| Max. Safety Load | 125% F.S. |
| Ultimate Load | 400% F.S. |
| Battery Life | ≥40 hours |
| Battery Type | “LR6(AA)”size alkaline batteries. 1.5Vⅹ3 |
| Operating Temp | – 10℃ ~ + 40℃ |
| Operating Humidity | ≤85% RH under 20℃ |
| Remote Controller Distance | Min. 15m |
| Wireless Frequency | 2.4GHz(default),433MHz,860MHz(optional) |
| MODEL | Max. capacity (kg/lb) | Min. weigh(kg) | Division (kg /lb) | Total dispay counts (n) |
|---|---|---|---|---|
| DDM-W3-01 | 1000/2200 | 10/20 | 0.5/1 | 2000 |
| DDM-W3-02 | 2000/4400 | 20/40 | 1/2 | 2000 |
| DDM-W3-03 | 3000/6600 | 20/40 | 1/2 | 3000 |
| DDM-W3-05 | 5000/1100 | 40/80 | 2/4 | 2500 |
| DDM-W3-10 | 10000/22000 | 100/200 | 5/10 | 2000 |
| DDM-W3-20 | 20000/44000 | 200/400 | 10/20 | 2000 |
| DDM-W3-30 | 30000/66000 | 200/400 | 10/20 | 3000 |
| MODEL | A(mm) | B(mm) | C(mm) | D(mm) | φ(mm) | H(mm) | Material |
|---|---|---|---|---|---|---|---|
| DL-W3-01 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
| DL-W3-02 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
| DL-W3-03 | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
| DL-W3-05 | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
| DL-W3-10 | 320 | 120 | 57 | 230 | 92 | 535 | Alloy Steel |
| DL-W3-20 | 420 | 128 | 74 | 260 | 127 | 660 | Alloy Steel |
| DL-W3-30 | 420 | 138 | 82 | 280 | 146 | 740 | Alloy Steel |
| Model | DDM-W3-01, DDM-W3-02, DDM-W3-03, DDM-W3-05, DDM-W3-10, DDM-W3-20, DDM-W3-30 |
|---|---|
| Capacity / Division | 1 ton / 0.5 kg, 2 ton / 1 kg, 3 ton / 1 kg, 5 ton / 2 kg, 10 ton / 5 kg, 20 ton / 5 kg, 30 ton / 10 kg |
| Warranty |
