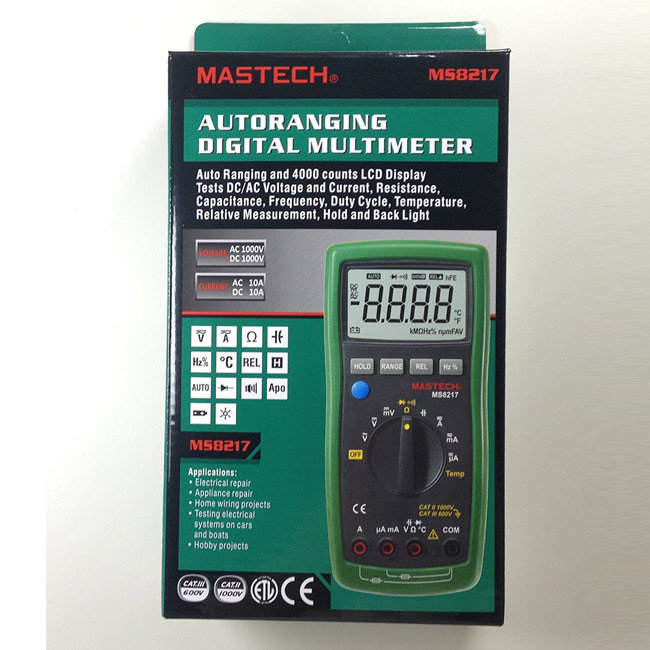

Mastech MS8217(S) Digital Multimeter - Image 2

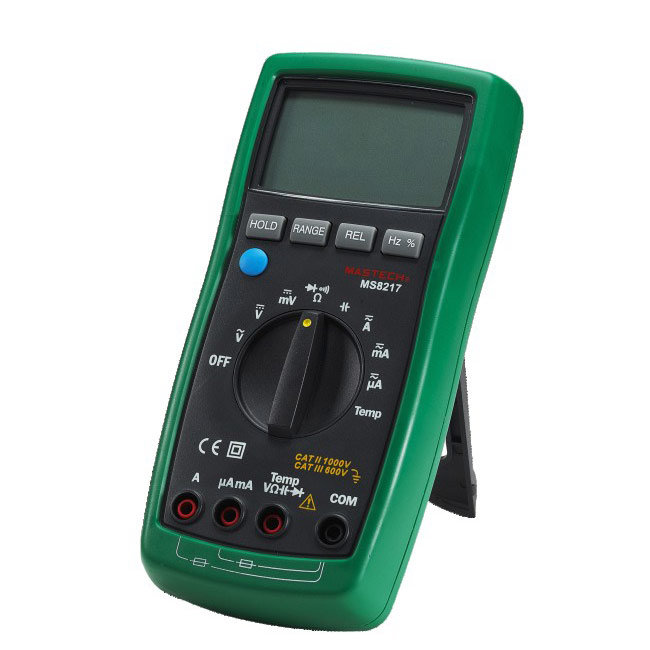

Mastech MS8217(S) Digital Multimeter - Image 3

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

Brand: Mastech

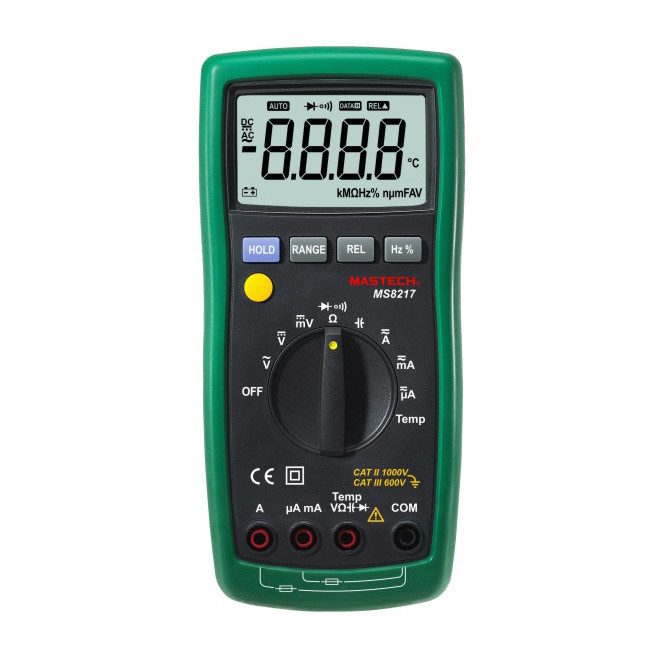

Mastech MS8217(S) Digital Multimeter

Categories: Electrical Meters, Measuring Instruments

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

Brand: Mastech

Mastech MS8217(S) Digital Multimeter

Categories: Electrical Meters, Measuring Instruments

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

GET QUOTATION

[woocommerce_variations_table]

The meter is able to measure AC/DC voltage, current, resistance, capacitance, frequency, temperature, diode, hFE, continuity buzzer. Features: Display: 2000 Counts Data hold: Auto power off: Diode test: Transistor: Continuity

Features:

Display: 4000 counts
Auto Ranging
Auto Power Off
Relative Measurement
Diode: 1.5V
Continuity Buzzer: <75Ω
Data Hold
Display Backlight
Low Battery Display

Overview:

Power Supply: 3*1.5AAA Batteries
Product Size: 185mm*87mm*53mm / 7.28″*3.4″*2.04″
Product Weight: 360g/0.79lb
Safety Rating: CAT II 1000V CAT III 600V RoHS

Specification	Range	Accuracy
DC Voltage	400mV	+-(1.0%+10)
DC Voltage	4V/40V/400V/1000V	+-(0.5%+3)
AC Voltage	400mV	+-(3.0%+3)
AC Voltage	4V/40V/400V/1000V	+-(1.0%+3)
DC Current	400µA/4000µA/40mA/400mA/4A/10A	+-(1.5%+3)
AC Current	400µA/4000µA/40mA/400mA/4A/10A	+-(1.5%+3)
Resistance	400Ω	+-(0.5%+3)
	4kΩ/40kΩ/400kΩ/4MΩ	+-(0.5%+2)
	40MΩ	+-(1.5%+3)
Capacitance	50nF	+-(3.0%+10)
Capacitance	500nF/5uF/50uF/100uF	+-(3.0%+5)
Frequency	50Hz/500Hz/5kHz/50kHz/100kHz	+-(0.1%+3)
Duty Cycle	0.5%~95%	+-(1.0%)
Temperature	-55℃~0℃	+-(9.0%+2)
	1℃~400℃	+-(2.0%+1)
	401℃~1000℃	+-2.0%
