Brand: Laumas

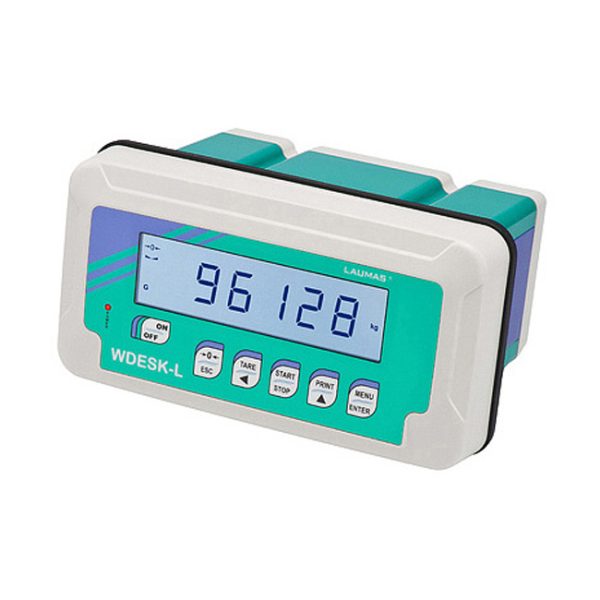

Laumas WDESK-L Weight Indicator, IP67 Waterproof, Controller for Weighing and Batching

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Possible installations: wall, panel, column, desk
Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
Six-digit backlit LCD display, 20 mm height
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
3 logic inputs, 5 relay outputs
OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.)
Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc

Brand: Laumas

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Possible installations: wall, panel, column, desk
Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
Six-digit backlit LCD display, 20 mm height
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
3 logic inputs, 5 relay outputs
OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.)
Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

[woocommerce_variations_table]

Features:

ABS Weight Indicator.
Dimensions 122 x 226 x 164 mm.
IP67 protection rating. Six-key membrane keyboard. 46 indicator symbols.
Real-time clock/calendar.

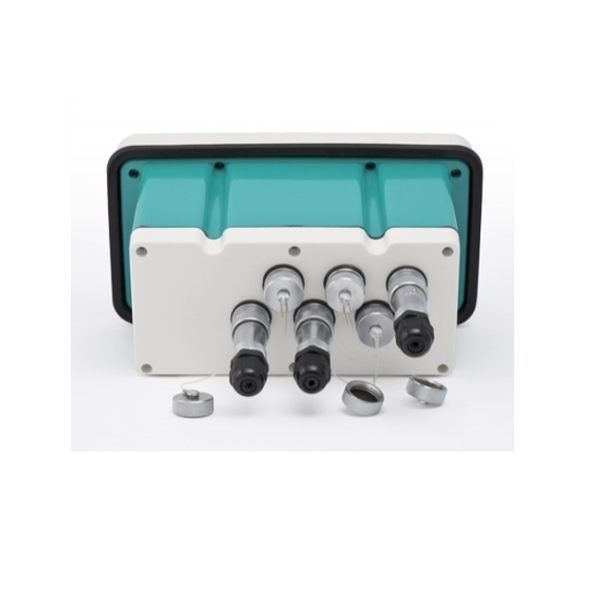

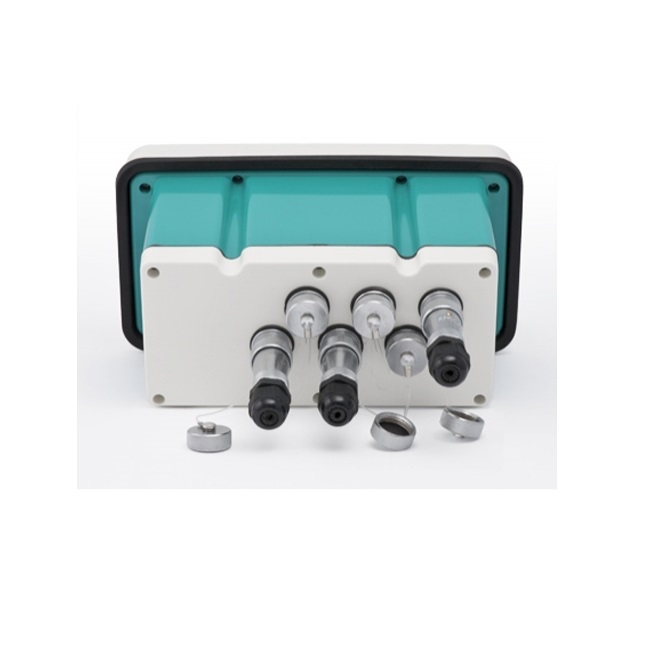

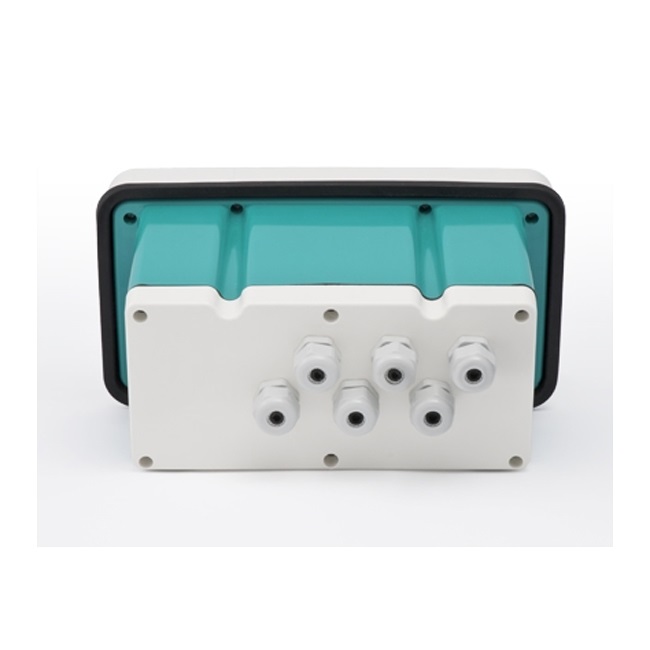

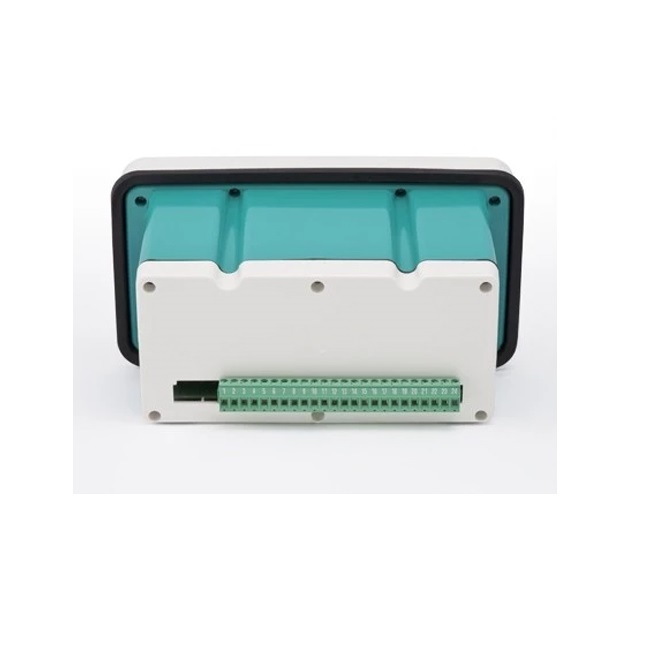

Different versions for various types of electrical connections: cable glands, D-SUB, connectors, removable terminal.
A/D converter 24bit (16000000 points) 4.8 kHz
Display range 999999

CERTIFICATIONS:

OIML R76:2006, class III, 3×10000 divisions, 0.2 μV/VSI / OIML R61 – WELMEC Guide 8.8:2011 (MID)
UL Recognized component – Complies with the United States and Canada standards
Complies with the Eurasian Custom Union standards
CERTIFICATIONS ON REQUEST
Conformity assessment (initial verification) in combination with Laumas weighing module
Support for metric label (dimensions: 124x77x1.5 mm)
NMI Trade Approved – Complies with the Australian standards for legal use with third parties
Complies with the regulations of the Russian Federation for legal use with third parties

Additional information

Model	WDESK L
Description	Laumas – IP67 Weighing Indicator
