Brand: Dini Argeo

“WKPTD – C4”: Digital Kit for Weighbridges with Touch-Screen Indicator

Categories: Weighbridge Kit

ADD TO CART to buy or to Request for Quotation (RFQ)

[dsalv]

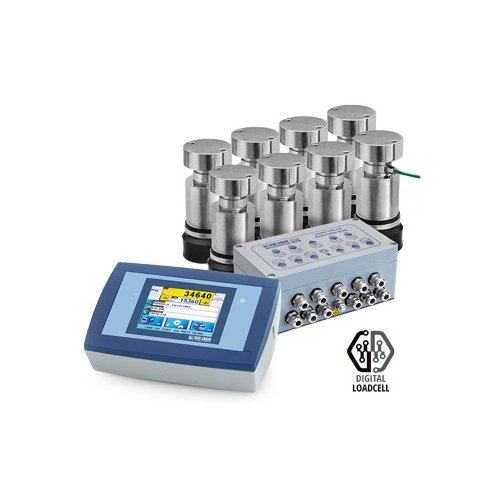

Digital weighbridges kit made up of 3590ETD touch screen weight indicator with AF03 software for weighbridges, 8 stainless steel IP68 “RCPTD” digital load cells, complete with galvanized steel oscillating resting joints and digital equalisation box, with surge arresters.

Touch screen indicator, specific for weighbridges.
Junction box with removable terminals and integrated surge arresters.
DIGITAL load cells in stainless/nickel-plated steel.
TOTAL CAPACITY: 240t (8 x 30t cells).
OIML R60. C4 precision class.
Load cell height 200mm (including cups height).
Load cells connection cable length: 18m.

Model: WKPT830D-1
Description: Kit for DIGITAL weighbridges with 8 load cells. Composed of 3590ETD indicator fitted with AF03 software, 2 inputs, 4 outputs and RS485 port, 8 RCPTD30C4-1 digital load cells with mounting kit, and JB10QD equalisation box with 10 inputs.

Inquiry Form

“WKPTD – C4”: Digital Kit for Weighbridges with Touch-Screen Indicator

Brand: Dini Argeo

“WKPTD – C4”: Digital Kit for Weighbridges with Touch-Screen Indicator

Categories: Weighbridge Kit

[dsalv]

ADD TO CART to buy or to Request for Quotation (RFQ)

Touch screen indicator, specific for weighbridges.
Junction box with removable terminals and integrated surge arresters.
DIGITAL load cells in stainless/nickel-plated steel.
TOTAL CAPACITY: 240t (8 x 30t cells).
OIML R60. C4 precision class.
Load cell height 200mm (including cups height).
Load cells connection cable length: 18m.

Model: WKPT830D-1
Description: Kit for DIGITAL weighbridges with 8 load cells. Composed of 3590ETD indicator fitted with AF03 software, 2 inputs, 4 outputs and RS485 port, 8 RCPTD30C4-1 digital load cells with mounting kit, and JB10QD equalisation box with 10 inputs.

Tags: Digital Load Cell, Digital Load Cell Set, Load Cell Set, Touch Screen Weight Indicator, Truch Scale Set, Truck Weighbridge, Truck Weighing Machine Set, Truck Weighing Scale Set, Truck Weighing System Set Vehicle Scale Set, Truck Weight Scale, Vehicle Weighing Machine, Vehicle Weighing Machine Set, Vehicle Weighing Scale Set, Vehicle Weighing System Set, Weighbridge Digital Load Cell Kit, Weighbridge Oman, Weighbridge Set, Weighbridge Supplier, Weighbridge Suppliers in Oman, Weighing Bridge

GET QUOTATION

[woocommerce_variations_table]

“3590ETD” INDICATOR

Touchscreen graphic color display.
ABS waterproof IP65 case.
Integrated alibi memory for CE-M approved communication with printer and PC.
3 serial ports, 2 RS232 and 1 RS485 for connection to printer, repeater and PC.
2 inputs and 4 outputs.
Power supply unit specifically for digital load cells.
Protection board for power supply circuit and communication between digital load cells and self-resetting Surge Arresters.
“AF03” application software suitable for vehicles weighing and weighbridges management, with input/output products check.

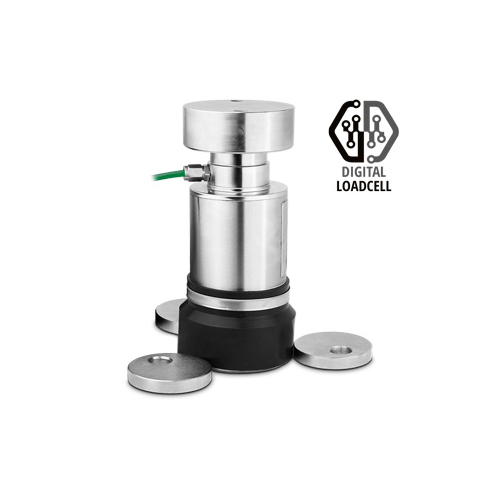

“RCPTD” DIGITAL LOAD CELLS

Resolution for nominal load 60.000d.
Combined error on nominal load ± 0,01%.
Operating temperature range -10°C/+40°C.
Power supply tension from 10 to 18 Vdc.
Conversion: 24 bit.
Connection RS485.
Admissible load: 150% F.S.
Shielded cable 4 poles, 18m length.

“JB10QD” JUCTION BOX

Junction box with polyester case.
Removable terminals.
IP66 protection rating or IP68 with the use of GELBOX anti condensation gel (optional, you need 1200ml of gel).
Surge Arresters against electric discharges and disturbances.

Additional information

Model	WKPT830D-1
Description	Kit for DIGITAL weighbridges with 8 load cells. Composed of 3590ETD indicator fitted with AF03 software, 2 inputs, 4 outputs and RS485 port, 8 RCPTD30C4-1 digital load cells with mounting kit, and JB10QD equalisation box with 10 inputs.
