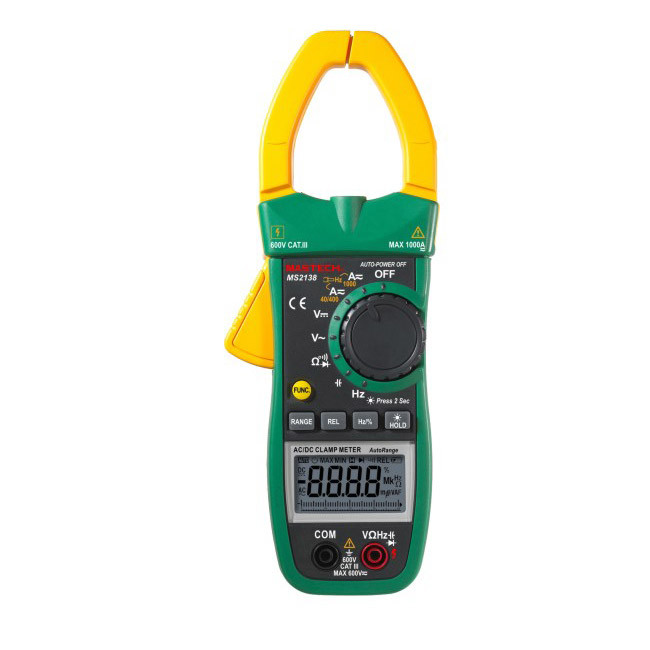

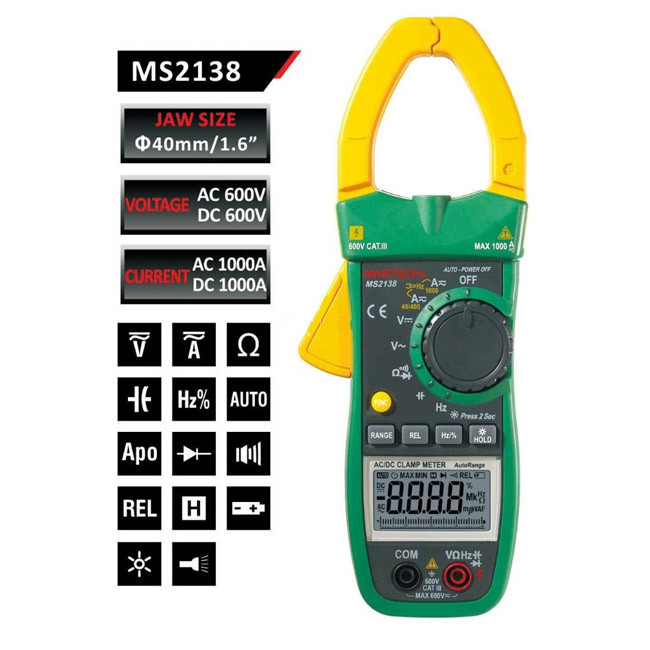

The meter is a handheld 3 1/2 digital clamp meter for measuring DC and DV voltage, AC current, Resistance, Diode and Continuity Test with battery operated.
Features:
- Display: 4000 counts
- Jaw Opening: Φ40mm/1.6″
- Auto Ranging
- Auto Power Off
- Diode: 3.3V
- Continuity Buzzer: <50Ω
- MAX/MIN
- Relative Measurement
- Data Hold
- Low Battery Display
- Display Backlight
- Work Light
- Segment Bar Graph
Overview:
- Auto range and manual range.
- Overrange protection is provided for all ranges.
- Maximum voltage between terminals and earth ground: 600V DC or 600V rms AC
- Operating altitude: max. 2000 meters (7000 ft.)
- Display: 4000 counts with analog bar LCD display
- Maximum value display: 4000 digits
- Polarity indication: automatic; ‘-‘ for negative polarity.
- Overrange indication: ‘0L’ or ‘-0L’
- Converter Rate: 3 times/sec; Bar graph: 30 times/sec.
- Unit indication: function and unit.
- Auto power off time: 15 minute.
- Operating power : 1.5V×3 AAA batteries
- Battery low indication: ‘ ‘ on LCD
- Temperature factor: < 0.1×Accuracy /°C
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Storage temperature: -10°C to 50°C (10°F to 122°F)
- Dimension: 225×86×33mm
- Weight: approximate 320g(including batteries)
- Safety rating: CAT.III 600V RoHS
- Work Light
- Segment Bar Graph
- True Root Mean Square
| Specification |
Range |
Accuracy |
| DC Voltage |
400mV |
+-(0.8%+2) |
| 4V/40V/400V |
+-(0.7%+2) |
| 600V |
+-(0.8%+2) |
| AC Voltage |
4V/40V/400V |
+-(0.8%+3) |
| 600V |
+-(1.0%+4) |
| DC Current |
40A/400A/1000A |
+-(3.0%+6) |
| AC Current |
40A/400A/1000A |
+-(2.5%+6) |
| Resistance |
400Ω/4kΩ/40kΩ/400kΩ |
+-(0.8%+3) |
| 4MΩ/40MΩ |
+-(1.2%+3) |
| Capacitance |
40nF/400nF/4µF/40µF/400µF/4000µF |
+-(4.0%+5) |
| Frequency |
A |
99.99Hz/999.9Hz |
+-(1.5%+5) |
| >1kHz |
Take it only as reference |
| V |
99.99Hz/999.9Hz/9.999kHz |
+-(1.5%+5) |
| >10kHz |
Take it only as reference |
| Hz / DUTY |
9.999/99.99/999.9Hz/9.999/99.99/999.9kHz /9.999MHz |
+-(0.5%+2) |
| Duty Cycle |
0.1%~99% |
+-3.0% |
