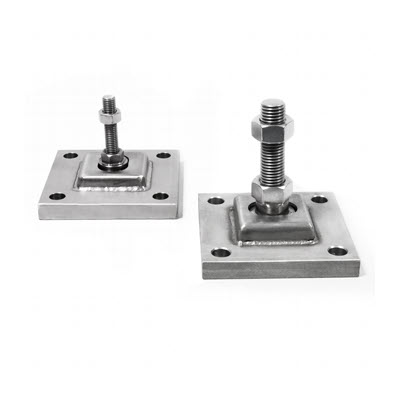

“KSBH” Articulated Plates for Fixing of Shear Beam Load Cell

ADD TO CART to buy or to Request for Quotation (RFQ)

[dsalv]

Articulated plates for shear beam load cells, SBK o SBX models. Useful for fixing the cells to the floor or to rigid structures, and for the creation of weighing systems with several support points.

Model: KSB2H, KSB5H
Description: Stainless steel articulated plate with M12x50mm threading. Applicable to SB.. load cells with capacity up to 2000 kg. To combine with BLKM12I bush., Stainless steel articulated plate with M20x65mm threading. Applicable to SB.. load cells with capacity from 3000 to 5000 kg. To combine with BLKM20I bush.

Inquiry Form

“KSBH” Articulated Plates for Fixing of Shear Beam Load Cell

Tags: Analog Load Cell, Force Sensor, Force Transducer, Load Cell Oman, Load Cell Price, Load Cell Sensor, Load Cell Supplier, Load Cell Supplier in Oman, Strain Gauge Load Cell, Strain Sensor, Stress Gauge, Torque Sensing, Weighing Sensor, Weight Scale Sensor, Weight Sensing Sensor, Weight Sensor, Weight Transducer

Brand: Dini Argeo

“KSBH” Articulated Plates for Fixing of Shear Beam Load Cell

Categories: Load Cell Accessories

[dsalv]

ADD TO CART to buy or to Request for Quotation (RFQ)

Articulated plates for shear beam load cells, SBK o SBX models. Useful for fixing the cells to the floor or to rigid structures, and for the creation of weighing systems with several support points.

Model: KSB2H, KSB5H
Description: Stainless steel articulated plate with M12x50mm threading. Applicable to SB.. load cells with capacity up to 2000 kg. To combine with BLKM12I bush., Stainless steel articulated plate with M20x65mm threading. Applicable to SB.. load cells with capacity from 3000 to 5000 kg. To combine with BLKM20I bush.

GET QUOTATION

[woocommerce_variations_table]

KSB2H TECHNICAL FEATURES

Applicable on SBxx series load cells, up to 2000kg.
Threading M12, thread lenght 52mm.
STAINLESS steel structure (AISI 304).
Fixing plate dimensions: 120x120mm (lxw).
Fixing holes diameter: Ø = 14mm.
To combine with BLKM12I bush.

KSB5H TECHNICAL FEATURES

Applicable on SBxx series load cells, from 3000 to 5000kg.
Threading M20, thread lenght 65mm.
STAINLESS steel structure (AISI 304).
Fixing plate dimensions: 120x120mm (lxw)
Fixing holes diameter: Ø = 14mm
To combine with BLKM20I bush.

Additional information

Model	KSB2H, KSB5H
Description	Stainless steel articulated plate with M12x50mm threading. Applicable to SB.. load cells with capacity up to 2000 kg. To combine with BLKM12I bush., Stainless steel articulated plate with M20x65mm threading. Applicable to SB.. load cells with capacity from 3000 to 5000 kg. To combine with BLKM20I bush.
