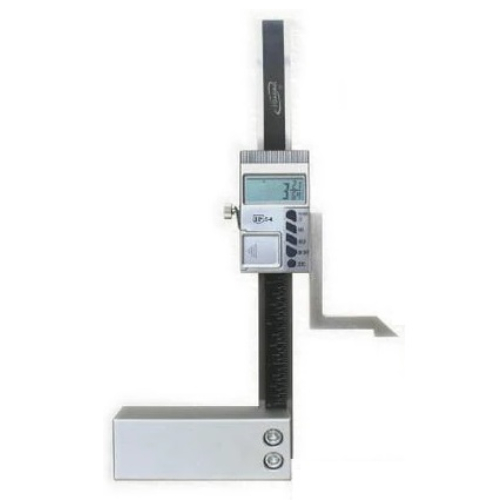

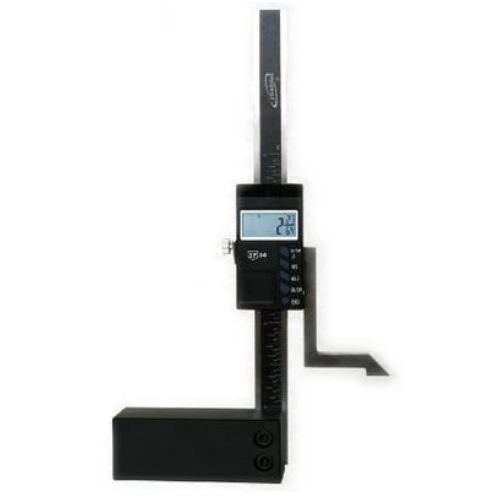

iGaging Height Gauge with Magnetic Base ( mini MAG ) – 150mm/6″
Petra Mechatronics Middle East | Authorized reseller of iGaging
- Travel range: 0-6” (150mm)
- Resolution: 0.0005″ (0.01mm)
- Magnetic Base
- Fraction Display
This digimatic height gauge makes height adjustment and measurement a breeze. The read out can display inches, mm and fractional with ABS and hold functions. It is extremely solid built with heavy thick base that has magnets. Has a smooth travel with no play and a lock down.
Features:
- Travel range: 0-6” (150mm)
- Resolution: 0.0005″ (0.01mm)
- Accuracy +/-0.001″ (+/-0.03mm)
- Repeatability: 0.0005″ (0.01mm)
- Large LCD Display
- Solid aluminum base with strong magnets embedded
- Stainless steel beam
- Powered by a single battery which lasts about 1 year with normal use ( a second spare battery is included)
- Controls: Zero reset, On/Off, inch/mm/fraction conversion, Hold, Absolute.
- WATER / OIL RESISTANT – Protection Classification IP54 (light splashes)
- 1-year warranty
Additional information
| MODEL | 35-628 (Silver), 35-641 (Black) |
|---|---|
| SIZES | 0-150mm (0-6”) |
Available versions | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Thumbnail | Product Name | model | sizes | SKU | Stock Status | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | iGaging Height Gauge with Magnetic Base ( mini MAG ) - 150mm/6" - 35-641 (Black), 0-150mm (0-6”) | 35-641 (Black) | 0-150mm (0-6”) | IGG-Height-35-641 | instock | 380,000 OMR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | iGaging Height Gauge with Magnetic Base ( mini MAG ) - 150mm/6" - 35-628 (Silver), 0-150mm (0-6”) | 35-628 (Silver) | 0-150mm (0-6”) | IGG-Height-35-628 | instock | 320,000 OMR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
