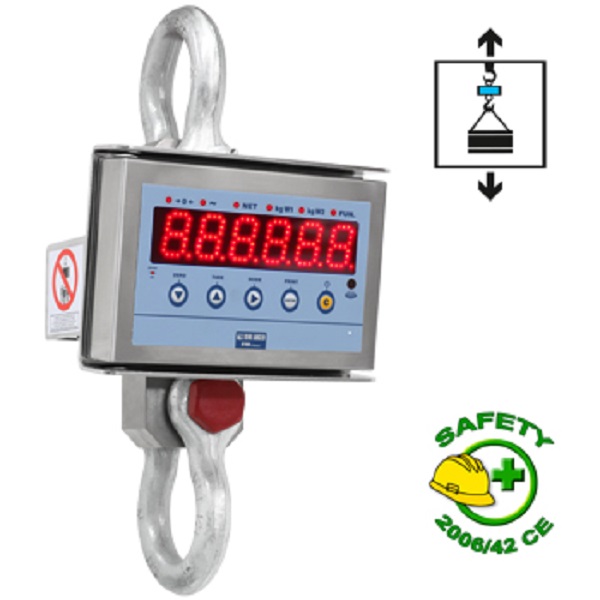

DINI ARGEO MCW09 series – Professional Heavy Duty Crane Scale

ADD TO CART to buy or to Request for Quotation (RFQ)

[dsalv]

Single security system, for the lifting and the weighing of the load.
Available Capacities: 3000Kg to 50000Kg
Extremely bright large red DOT LED 40mm display
Adjustable brightness intensity
Sturdy STAINLESS steel structure, with IP67 protection degree of the load cell and the electronics, against dust and sprays.
Programmable digital filter
Fitted with radiofrequency 6-key remote control
Functions: Peak, Hold, Weighing totalization, lb/kg/N conversion, +/- checkweighing, Percentage weighing, Peer-to-peer, High Resolution Weighing x 10.

Scale Capacity Range (Crane): 12-20 Ton, 25-50 ton, 3 Ton
Model: MCW09T3-1, MCW09T6-1, MCW09T9-1, MCW09T12-1, MCW09T17-1, MCW09T25-1, MCW09T30-1, MCW09T50-1
Capacity / Division: 3 ton / 1 kg, 12 ton / 5 kg, 25 ton / 10 kg, 30 ton / 20 kg, 50 ton / 20 kg
Weighing Scale Capacity: 12 Ton, 17 Ton, 25 Ton, 3 Ton, 30 Ton, 50 Ton, 6 Ton, 9 Ton
Scale Division: 10kg, 1kg, 20kg, 2kg, 5kg
Interface: Wi-Fi
Type of display: LED
Placement: Hanging

[dsalv]

ADD TO CART to buy or to Request for Quotation (RFQ)

Single security system, for the lifting and the weighing of the load.
Available Capacities: 3000Kg to 50000Kg
Extremely bright large red DOT LED 40mm display
Adjustable brightness intensity
Sturdy STAINLESS steel structure, with IP67 protection degree of the load cell and the electronics, against dust and sprays.
Programmable digital filter
Fitted with radiofrequency 6-key remote control
Functions: Peak, Hold, Weighing totalization, lb/kg/N conversion, +/- checkweighing, Percentage weighing, Peer-to-peer, High Resolution Weighing x 10.

Scale Capacity Range (Crane): 12-20 Ton, 25-50 ton, 3 Ton
Model: MCW09T3-1, MCW09T6-1, MCW09T9-1, MCW09T12-1, MCW09T17-1, MCW09T25-1, MCW09T30-1, MCW09T50-1
Capacity / Division: 3 ton / 1 kg, 12 ton / 5 kg, 25 ton / 10 kg, 30 ton / 20 kg, 50 ton / 20 kg
Weighing Scale Capacity: 12 Ton, 17 Ton, 25 Ton, 3 Ton, 30 Ton, 50 Ton, 6 Ton, 9 Ton
Scale Division: 10kg, 1kg, 20kg, 2kg, 5kg
Interface: Wi-Fi
Type of display: LED
Placement: Hanging

[woocommerce_variations_table]

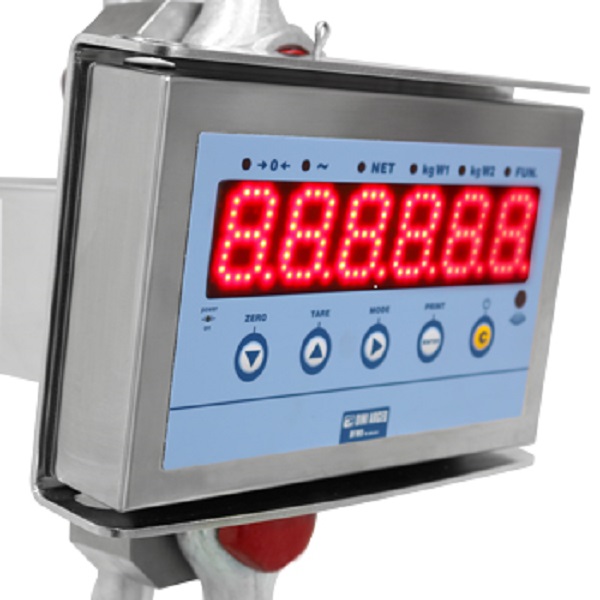

Extremely bright large red DOT LED 40mm display, which guarantees a perfect visibility of the weight from any angle, also from a long distance with direct sunlight.
Usable indoors as well as outdoors, great visibility also in full sunlight.
Adjustable brightness intensity.

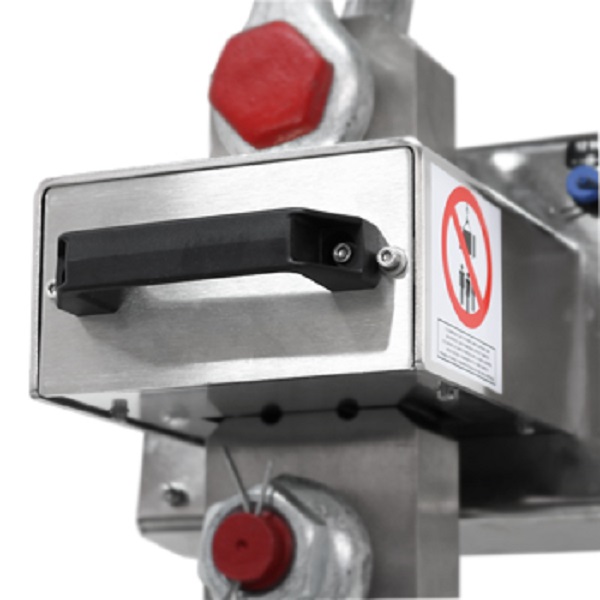

Sturdy STAINLESS steel structure, with IP67 protection degree of the load cell and the electronics, against dust and sprays.
Fitted with approved galvanized shackles:
Extremely reduced distance between upper and lower shackles.
5-key waterproof keypad: ZERO, AUTOMATIC TARE, MODE, PRINT, and ON/OFF.
Programmable digital filter, for an excellent weight display in any working condition.
Programmable automatic switch-off function, either through keypad or remote control.
Fitted with radiofrequency 6-key remote control, configurable as simple automatic tare or as a remote keypad.
Configured for an 868MHz radio interface or WiFi, for connection to PC or to a remote terminal and printer.
Rechargeable battery, with an average life of about 30 hours.
Configured for a second optional extractable battery for 24/7 continuous use.
Fitted with 230Vac 50 Hz battery charger.
Programmable digital calibration and Set-Up directly from the keypad or from PC through Dinitools.
Operating temperature range: -10/+40 ºC.

Accessories:

Additional information

Scale Capacity Range (Crane)	12-20 Ton, 25-50 ton, 3 Ton
Model	MCW09T3-1, MCW09T6-1, MCW09T9-1, MCW09T12-1, MCW09T17-1, MCW09T25-1, MCW09T30-1, MCW09T50-1
Capacity / Division	3 ton / 1 kg, 12 ton / 5 kg, 25 ton / 10 kg, 30 ton / 20 kg, 50 ton / 20 kg
Weighing Scale Capacity	12 Ton, 17 Ton, 25 Ton, 3 Ton, 30 Ton, 50 Ton, 6 Ton, 9 Ton
Scale Division	10kg, 1kg, 20kg, 2kg, 5kg
Interface	Wi-Fi
Type of display	LED
Placement	Hanging
