MAIN FEATURES

• Functional 5-key waterproof keypad.

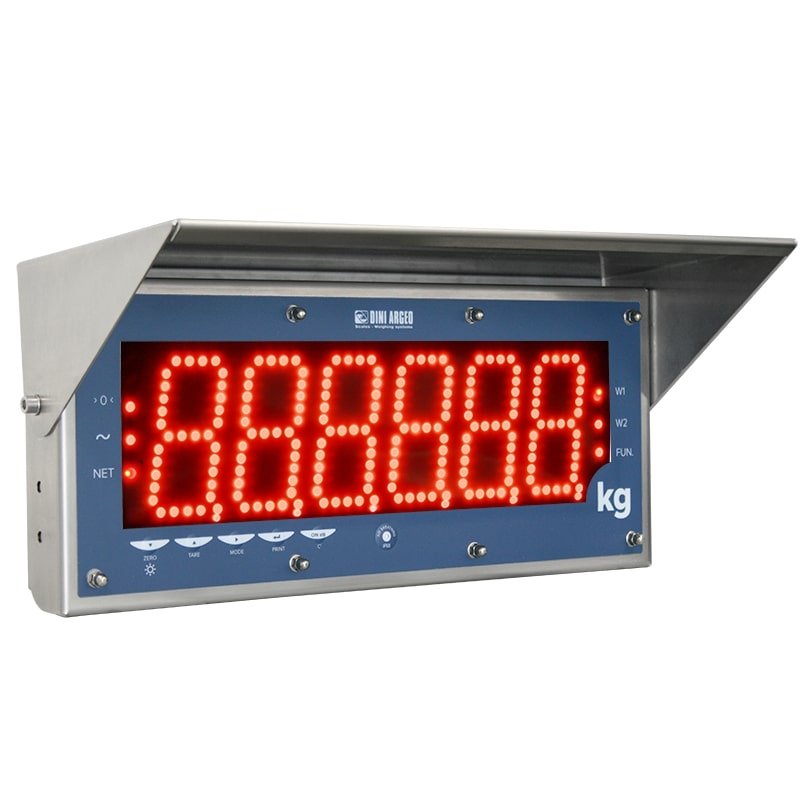

• Large 6-digit display, 100 mm high, with very efficient SMD LEDs, complete of 6 Leds for indication of active functions, visible from over 25 m, with viewing angle up to 120° and with power up to 750 mcd.
• Software adjustment of the brightness intensity by keyboard.

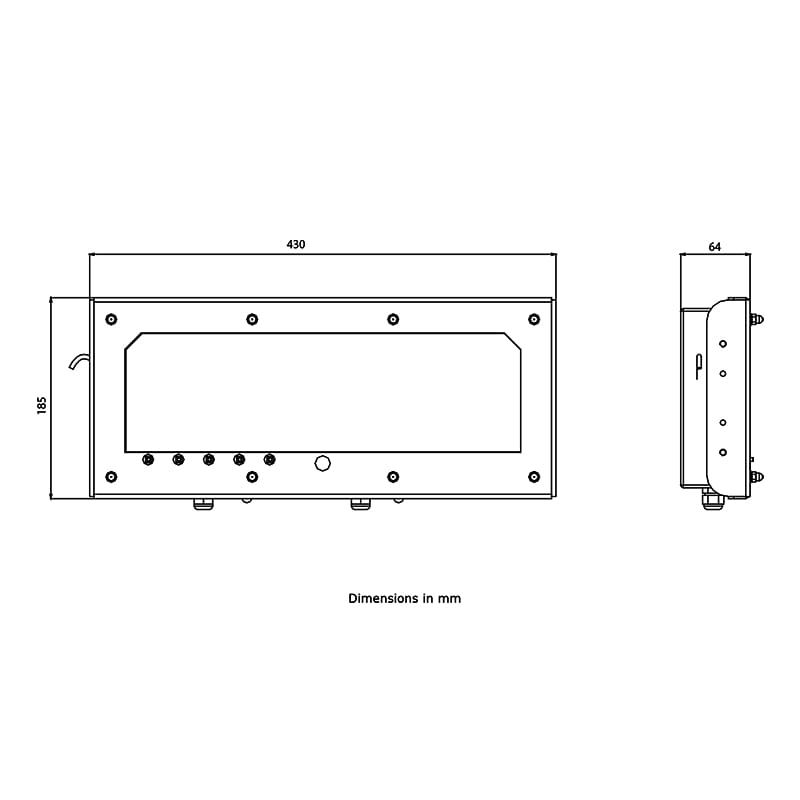

• AISI 304 stainless steel case with IP68 protection complete of wall fixing bracket.
• Fitted with an anti condensation air valve for regulating the humidity and the pressure inside the indicator.
• Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.
• Max. 10.000e or multirange 2 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use.
• Max. 800.000 displayable divisions viewable with internal resolution up to 3.000.000 points.
• Up to 8 signal linearisation points with DINITOOLS.
• A/D 24 bit sigma-delta 4-channel conversion, max.400 conv./sec. with automatic selection.
• Connectable with up to 8 analogue load cells with 350 Ohm input resistance.
• Management of a weighing system with up to 4 cells with digital equalisation or management of up to 4 independent weighing systems.
• Power supply from 12 to 24 Vdc with 110-240 Vac internal power supplier.
• Available as Scale or as Repeater version.

MAIN CERTIFICATIONS

• CE-M EN 45501
• OIML R76
• OIML R61 – MID
• OIML R51
• Australian legal for trade certificate of approval (NMI S788)

I/O SECTION

• RS232/C bidirectional port configurable for connection to printer, PC, or other external units.
• RS485 bidirectional port configurable for connection to PC, PLC, or other external units.
• PROFIBUS serial interface (DGT100PB model).
• 2 photomosfet outputs: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.
• 2 optoisolator photocouplers: 12÷24 Vdc, 5 mA min – 20 mA max, with configurable functions.
• 16-bit analogue output (DGT100AN model) 4-20mA / 0-5Vdc / 0-10Vdc at choice; maximum applicable voltage: 300 Ohm; minimum applicable voltage resistance: 1 kohm.

DGT100BC / DGT100AN / DGT100PB FUNCTIONS

• THROUGH KEYBOARD:
  Zeroing; Semi automatic and presettable tare, print and/or data transmission; ON/Stand-by.
• PROGRAM FUNCTIONS:
  Setpoint, high resolution, peak, alibi memory, unit of measure conversion.
• EXTERNAL INPUT:
  Simulation of key pressure; Keyboard lock.
• MOSFET OUTPUT:
  Set Point Control on the weight, either positive (in loading) or negative (in unloading), or on the pieces (counting mode), with programmable enabling/disabling thresholds, as direct check or upon weight stability.
• SERIAL PORTS:
  On all models: Reading of the net, gross, and tare weights; Clearing; Semi automatic and presettable tare; Scale switch; Setting of outputs activation thresholds; Reading/Writing of Alibi Memory.
  DGT100BC and DGT100AN models: Reading of microvolts or ADC converter for all the channels; Message display; Printing; Setting of APW in counting mode; Simulation of key pressure; MODBUS serial protocol.
• THROUGH 16 bit ANALOGUE OUTPUT (DGT100AN):
  Analogue output proportional to the net or gross weight, either positive (in loading) or negative (in unloading).

DGT100R REPEATER FUNCTIONS

• Version with specific program for using the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.

• FUNCTIONING MODES:
  – Multi-scale repeater (MASTER):
  function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.
  – UNIVERSAL weight repeater:function which allows to repeat the weight of any scales, through the configuration of the input string.
