Sigma DDM-W3M – Multi-channel Wireless Dynamometer

Categories: Dynamometer, Wireless Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Capacity / Division

Clear

Brand : Sigma (Taiwan)
Body Structure: Aluminum / Alloy Steel powder coated
Waterproof keypad
Display:
- Dynamometer: 25mm LCD display with backlight
- 380 Indicator: Dotmatrix LCD display with backlight
Wireless Distance: 50m without obstacle
Units: Kg/ Ton/ Lb./ N/ kN
Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration
Power: AA Batteries
Over Load Protection and alarm
1 year: warranty

GET QUOTATION

Brand: SiGMA

Sigma DDM-W3M – Multi-channel Wireless Dynamometer

Categories: Dynamometer, Wireless Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Capacity / Division

Clear

Brand : Sigma (Taiwan)
Body Structure: Aluminum / Alloy Steel powder coated
Waterproof keypad
Display:
- Dynamometer: 25mm LCD display with backlight
- 380 Indicator: Dotmatrix LCD display with backlight
Wireless Distance: 50m without obstacle
Units: Kg/ Ton/ Lb./ N/ kN
Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration
Power: AA Batteries
Over Load Protection and alarm
1 year: warranty

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

GET QUOTATION

[woocommerce_variations_table]

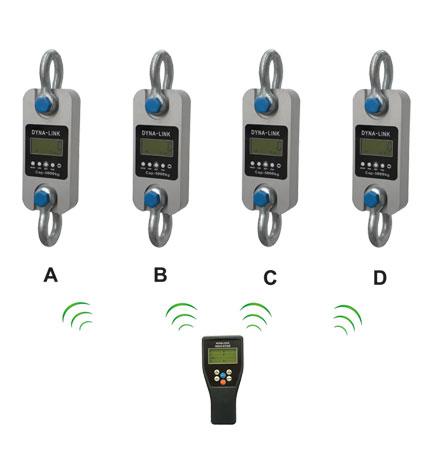

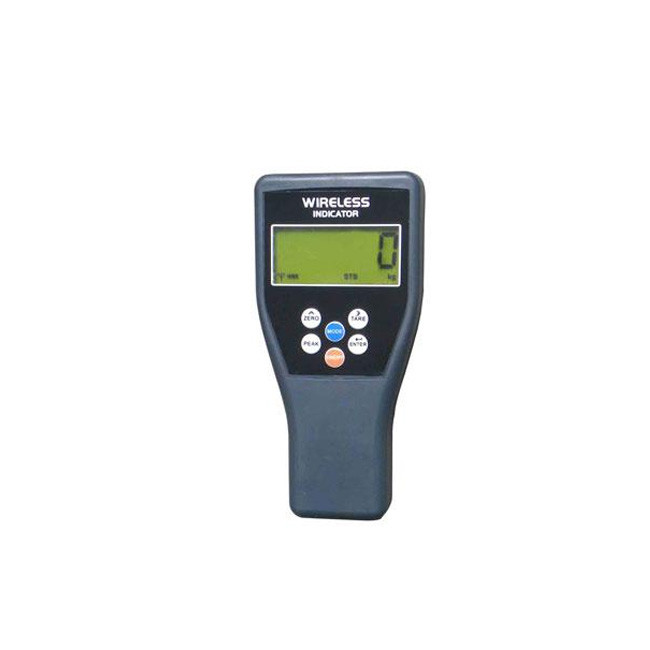

DDM-W3M wireless dynamometer is an extremely well-built instrument for industry use, whether used as a conventional crane weigher or to measure force, DDM-W3M wireless dynamometer is microprocessor controlled for high precision accuracy, it can display up to 4 dynamometers data and sum at the same time, it also provides user two user-programmable Set-Point for safety and warning applications or for limit weighing. Parameter setting and calibration are easy through wireless handheld indicator 380.

Specifications:

Body protection: Aluminum and alloy steel capacities are powder coated.
Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
Gravity regulation: The acceleration of gravity can be regulated through indicator parameter setting according to different places value.

Features

Body Display	25mm (1’’) 5digits LCD with backlight
380M Indicator Display	128×64 dot matrix LCD with backlight
Power on zero range	20% F.S.
Manual Zero Range	4% F.S.
Tare Range	100% F.S.
Stable Time	≤5 seconds
Overload Indication	100% F.S. + 9e

Max. Safety Load	125% F.S.
Ultimate Load	400% F.S.
Battery Life	≥50 hours
Body Battery	“LR6(AA)”size alkaline batteries. 1.5Vⅹ3
Indicator Battery	“LR6(AA)”size alkaline batteries. 1.5Vⅹ4
Operating Temp.	– 20℃ ~ + 50℃
Operating Humidity	≤85% RH under 20℃
Wireless Distance	50m without obstable

Main technical data

MODEL	A(mm)	B(mm)	C(mm)	D(mm)	φ(mm)	H(mm)	Material
DDM-W3M-1	245	112	37	190	43	335	Aluminum
DDM-W3M-2	245	112	37	190	43	335	Aluminum
DDM-W3M-3	260	123	37	195	51	365	Aluminum
DDM-W3M-5	285	123	57	210	58	405	Aluminum
DDM-W3M-10	320	120	57	230	92	535	Alloy Steel
DDM-W3M-20	420	128	74	260	127	660	Alloy Steel
DDM-W3M-30	420	138	82	280	146	740	Alloy Steel

Specification

Model	Max.Capacity (kg)	Min.Weigh (kg)	Division (kg)	Total display counts (n)
DDM-W3M-1	1000	10	0.5	2000
DDM-W3M-2	2000	20	1	2000
DDM-W3M-3	3000	20	1	3000
DDM-W3M-5	5000	40	2	3000
DDM-W3M-10	10000	100	5	2000
DDM-W3M-20	20000	200	10	2000
DDM-W3M-30	30000	200	10	3000

Additional information

Model	DDM-W3M-01, DDM-W3M-02, DDM-W3M-03, DDM-W3M-05, DDM-W3M-10, DDM-W3M-20, DDM-W3M-30, DDM-W3M-50, DDM-W3M-100
Capacity / Division	1 ton / 0.5 kg, 2 ton / 1 kg, 3 ton / 1 kg, 5 ton / 2 kg, 10 ton / 5 kg, 20 ton / 5 kg, 30 ton / 10 kg, 50 ton / 20 kg, 100 ton / 50 kg
